Planmeca Compact i Touch v2 User Manual

10 Instrument system
10.1 Delivery arms
10.1.1 Over-the-Patient (OP) delivery arm
The OP delivery arm is attached to the top of the dental unit and swings over
the chair.
CAUTION
Do not lean on the OP delivery arm.
CAUTION
Do not allow the patient to grab the OP delivery arm when getting seated or
up from the patient chair.
The instrument console can be positioned using the handles on the console.

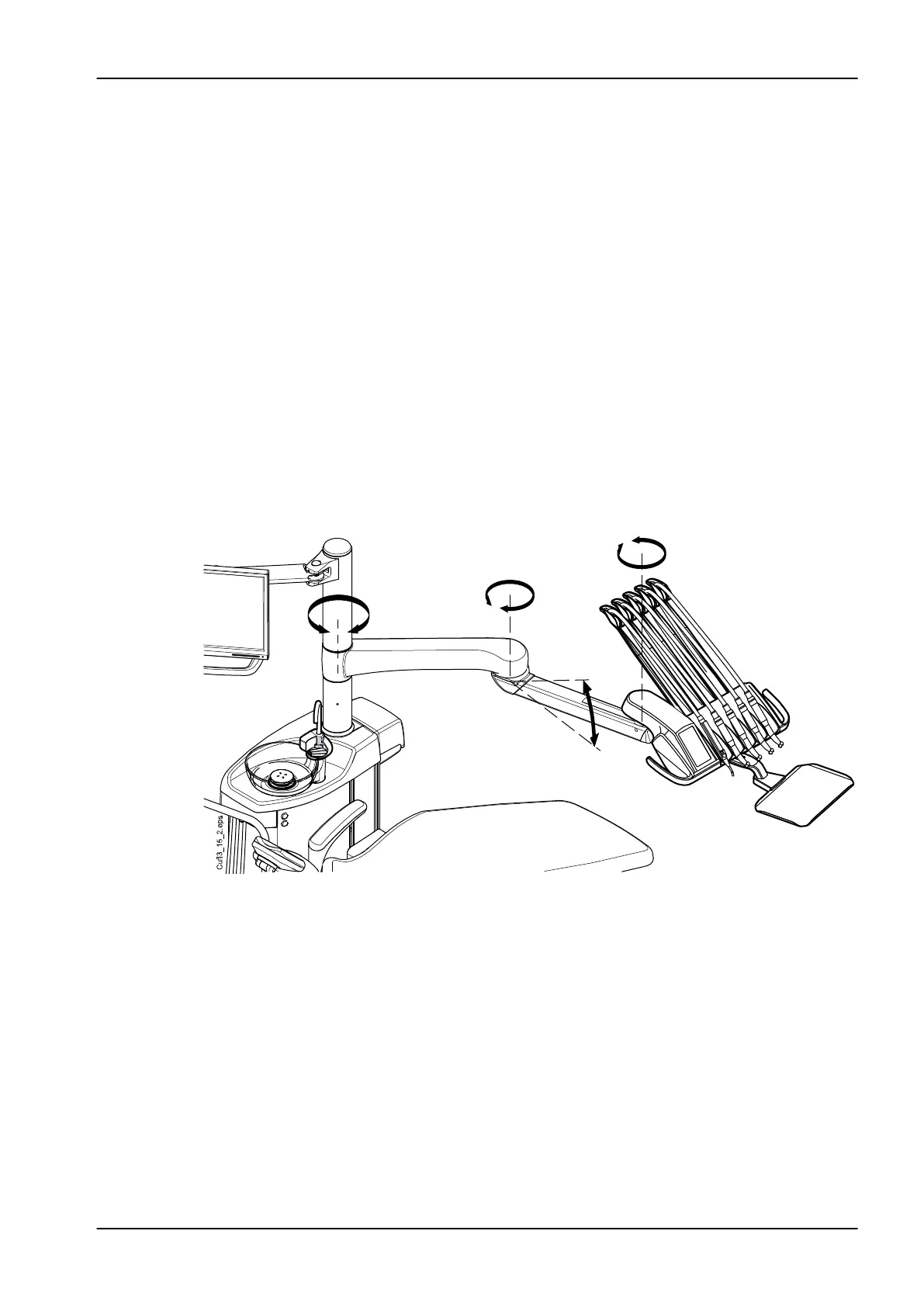

The rotation area of the delivery arm is presented in the illustrations below.
The items do not need to be locked into position.
The following presents the OP delivery arm with balanced instrument arms.
10 Instrument system
User's manual Planmeca Compact i 35
