30.4.2 DÜRR CAS1 amalgam separator

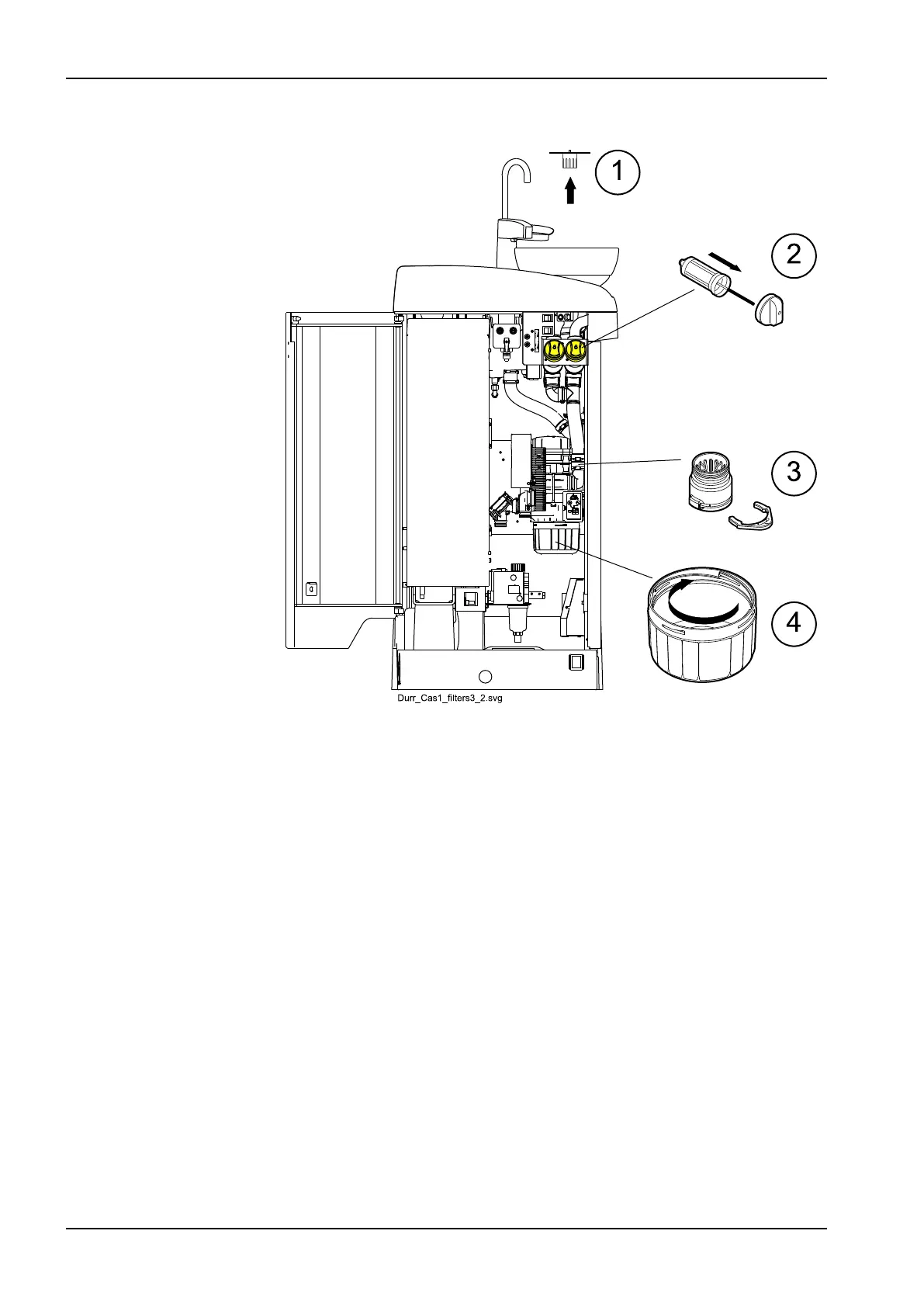

1. Bowl filter

Empty daily and replace when necessary.

2. Coarse filters

Empty daily and replace weekly.

3. Coarse filter

Replace when full. Refer to the instructions supplied with the DÜRR

amalgam separator.

4. Amalgam collector

Replace when 95% full. Refer to the instructions supplied with the DÜRR

amalgam separator.

See the Dürr CAS1 amalgam separator installation and operating

instructions for further information.

30 Maintenance
