23.6.2 Using apex locator
The Morita Root ZX mini U apex locator can be used both with hand files
and with the Morita TORX micromotor and the CA-10RC-ENDO 10:1
handpiece.
If you are using hand files, press Apex locator to open the Apex locator
window.
NOTE
If the Apex locator button is not visible in your control panel's swipe menu,
you must add it. See section "Organising items on control panel" on page
173.
If you are using the Morita TORX micromotor and the CA-10RC-ENDO 10:1
handpiece, the Apex locator window automatically opens on the control
panel when you select one of the apical presets a1 - a3.

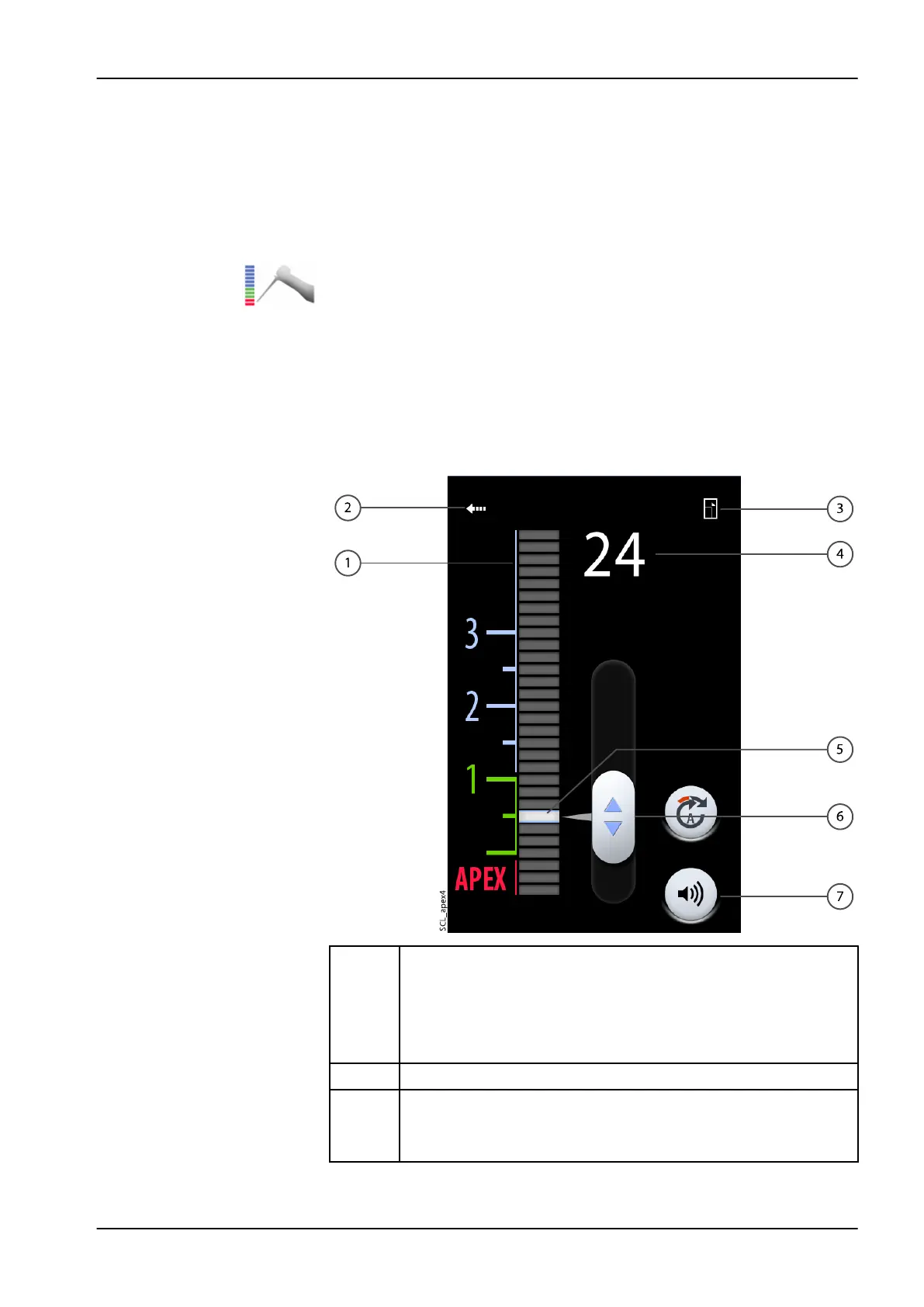

1 Meter scale for estimating the location of the apex.
The numbers on the meter scale do not represent the actual
distance to the apex and should be used only as an estimate of
the distance.
The numerals 1, 2 and 3 do not represent length in millimetres.
2 Press the arrow to close the Apex locator window.
3 Press to minimise the window.
When the window is minimised, press the equivalent button to
maximise the window.
23 Operating instruments
User's manual Planmeca Compact i 149
