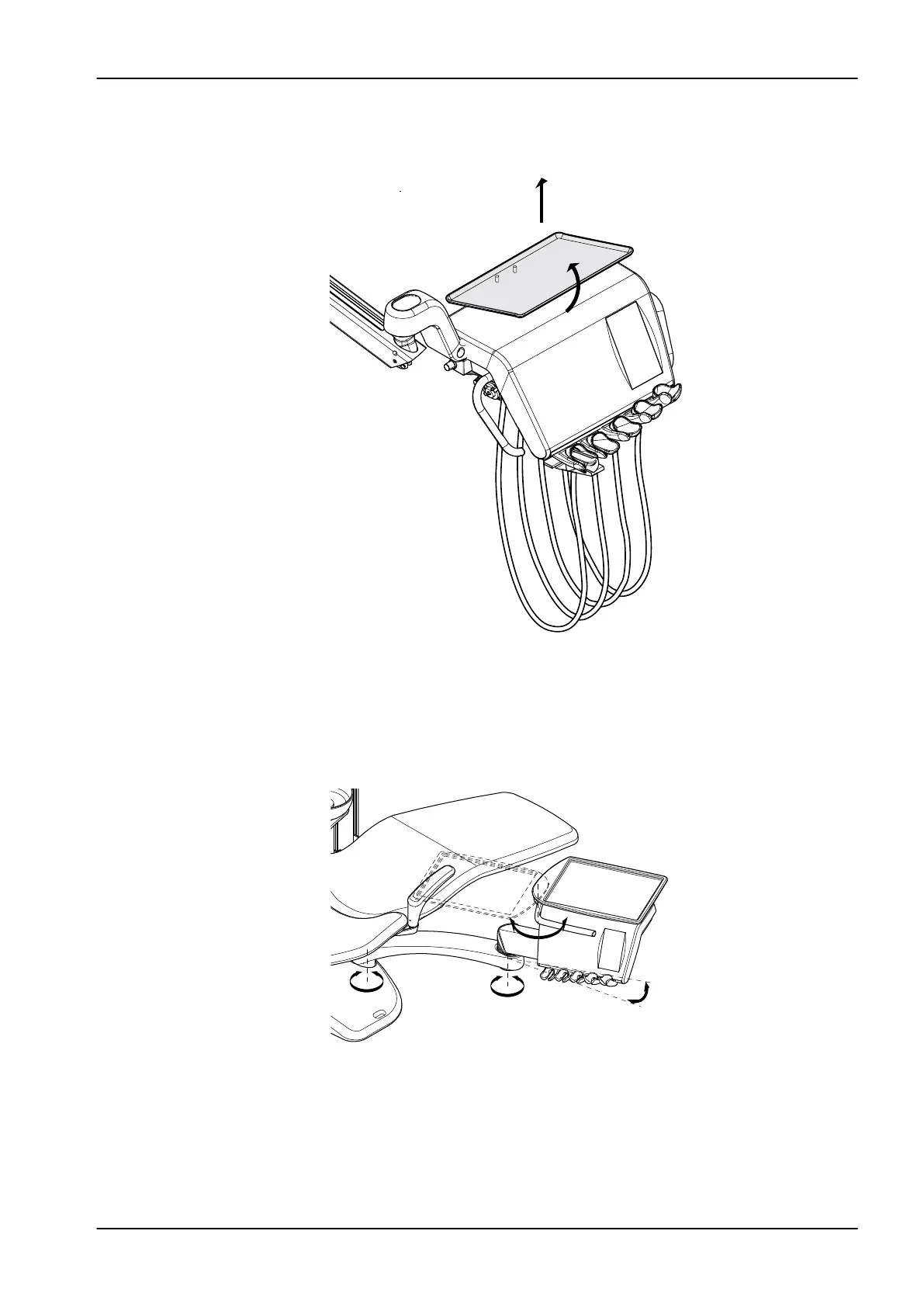

The tray table is attached to the instrument console with a quick-connector,
enabling an easy attachment and detachment of the tray table.
10.5.4 Rotating tray table
The rotating tray table is placed on top of the instrument console and is
available for side deliveries. The maximum load on the tray table is 2
kilograms (4.4 lbs).
You can rotate the tray table 180° to the desired position.
10.5.5 Double tray
The double tray is available for side deliveries. It is a combination of the top
tray table and the rotating tray table. The maximum combined load on the
tray tables is 2 kilograms (4.4 lbs).
10 Instrument system
User's manual Planmeca Compact i 45
