Planmeca Emerald intraoral scanner B
34.3 Dimensions
34.3.1 Positioning of patient, dentist and assistant

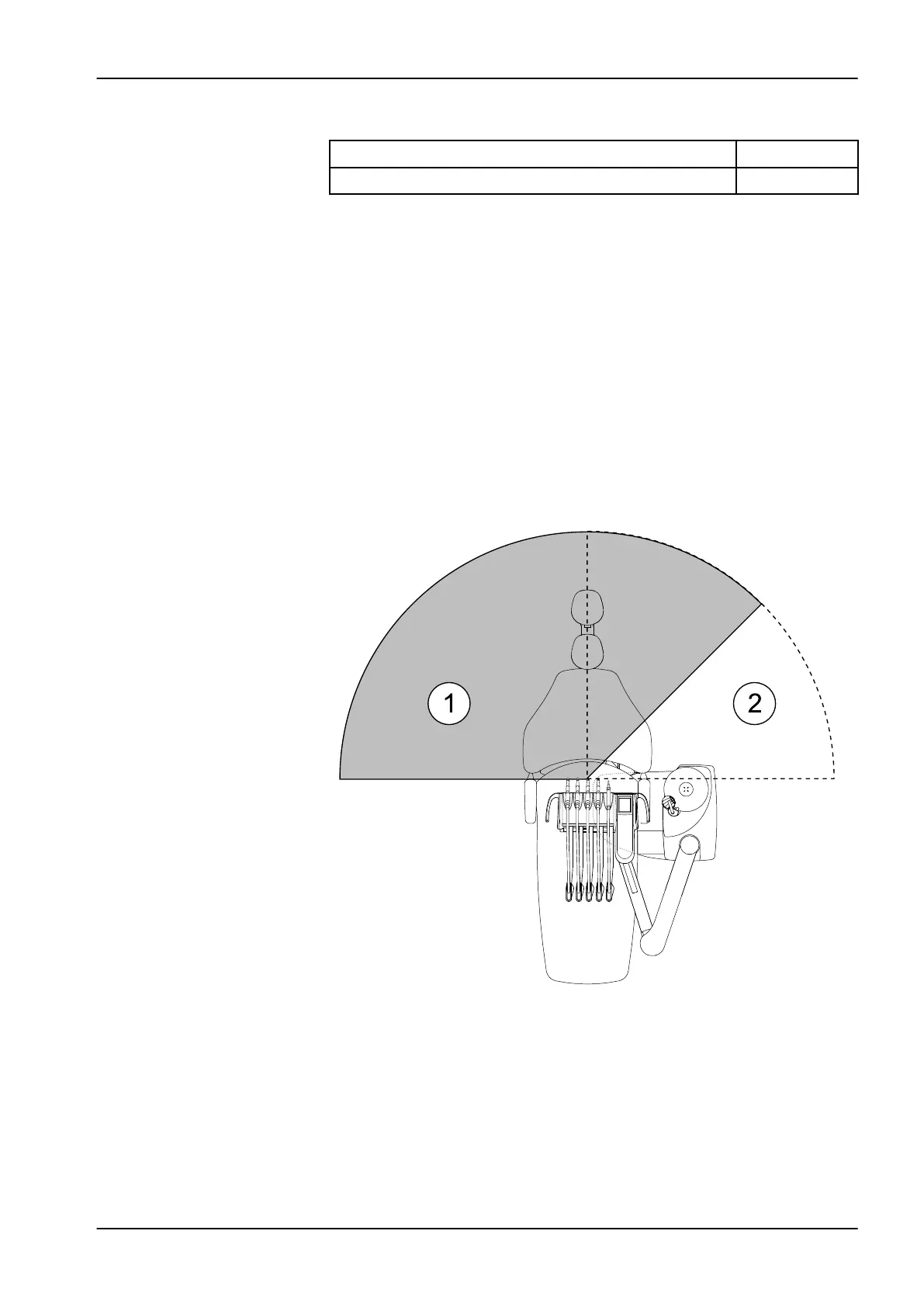

The following picture shows an example of how to position the dentist and
assistant during treatment.
The patient must always be positioned in the patient chair, with arms and
legs resting on the upholstery. The dentist and assistant can move within the
areas marked in the picture below.
NOTE
The following picture is an example only and presents one possible
scenario. The actual positioning of dentist and assistant depends on the
used working method, treatment situation, region etc. and can therefore not
be explicitly stated in this manual.
1. Dentist’s area
2. Assistant’s area
34.3.2 Patient area
The patient area is 1.5 m (59.1”) in each direction from the dental unit.
The external PC, its keyboard and mouse, as well as Planmeca ProSensor’s
power supply and the Planmeca ProX generator assembly must be located
outside the patient area. The dentist, assistant and patient must not touch
the equipment outside the patient area during treatment.
34 Technical information
User's manual Planmeca Compact i 291
