NOTE
When the dental unit is equipped with a motorised headrest, the factory
default is that the normal mode is activated by pushing the left-side knob up.
However, it is possible to configure the foot control so that the normal mode
is activated when you push the right-side knob up instead. Contact your
Planmeca dealer.

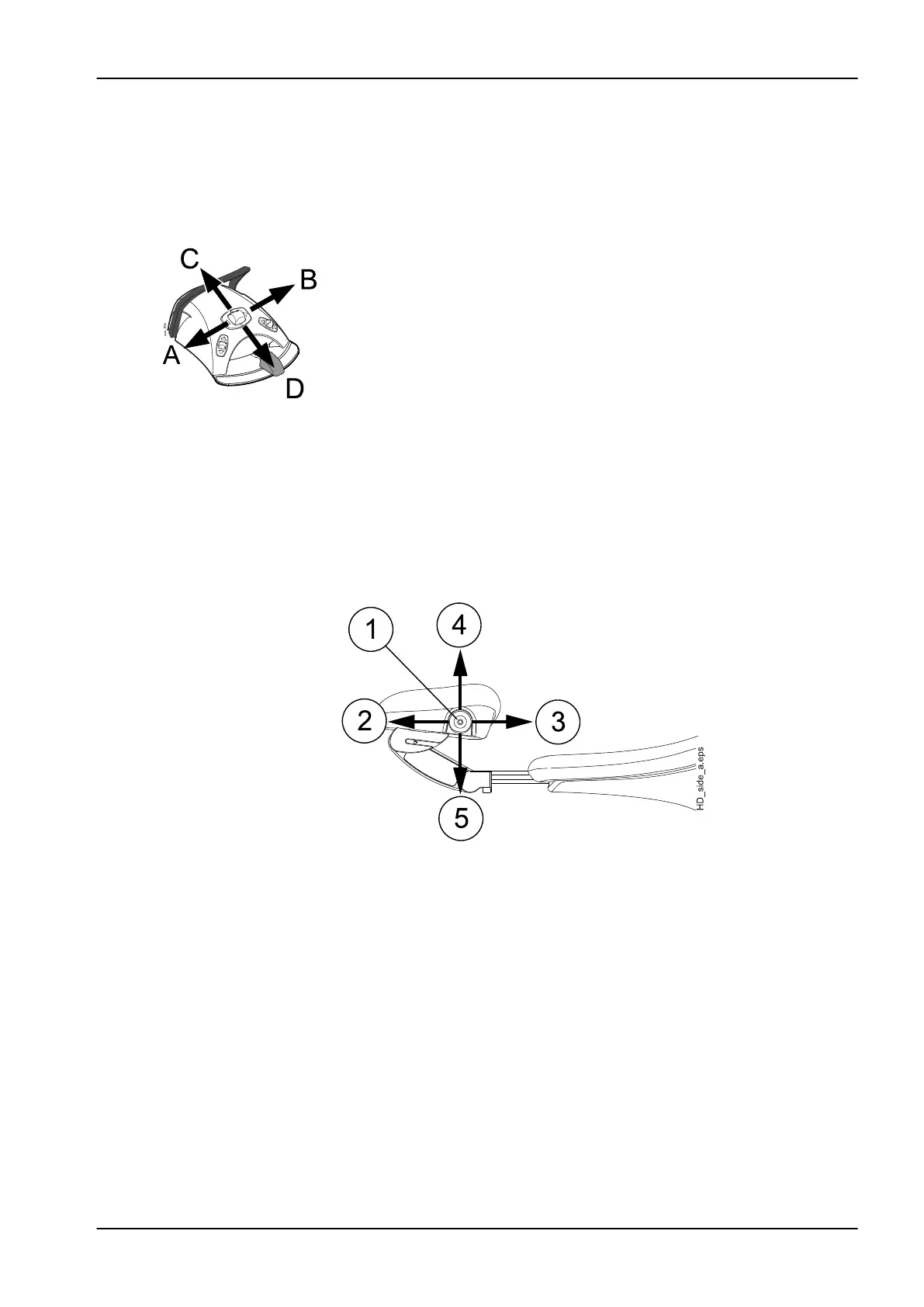

Drive the anatomical movement down (A) or up (B) by pushing the centre
knob.
Push the centre knob in direction C to lengthen and in direction D to shorten
the headrest.
The movement continues for as long as the centre knob is pushed.
NOTE
If the motorised headrest is not in the anatomical tilt line, the headrest will be
driven to this line before the anatomic tilt is adjusted. Therefore, the headrest
may first move away from the direction it is driven to.
21.2 Tilt mode
21.2.1 Joystick
Press the joystick on the headrest for approximately 2 seconds to change
the headrest mode from normal mode to tilt mode.
1. Joystick
2. Tilt up
Push the joystick away from the backrest to tilt the headrest up and raise
the patient’s jaw.
3. Tilt down
Push the joystick toward the backrest to tilt the headrest down and lower
the patient’s jaw.
4. Headrest up
Push the joystick up to drive the headrest up in accordance with the
movement of the anatomical tilt.
5. Headrest down
Push the joystick down to drive the headrest down in accordance with
the movement of the anatomical tilt.
The movement continues for as long as the joystick is pushed.
21 Operating motorised headrest
User's manual Planmeca Compact i 109
