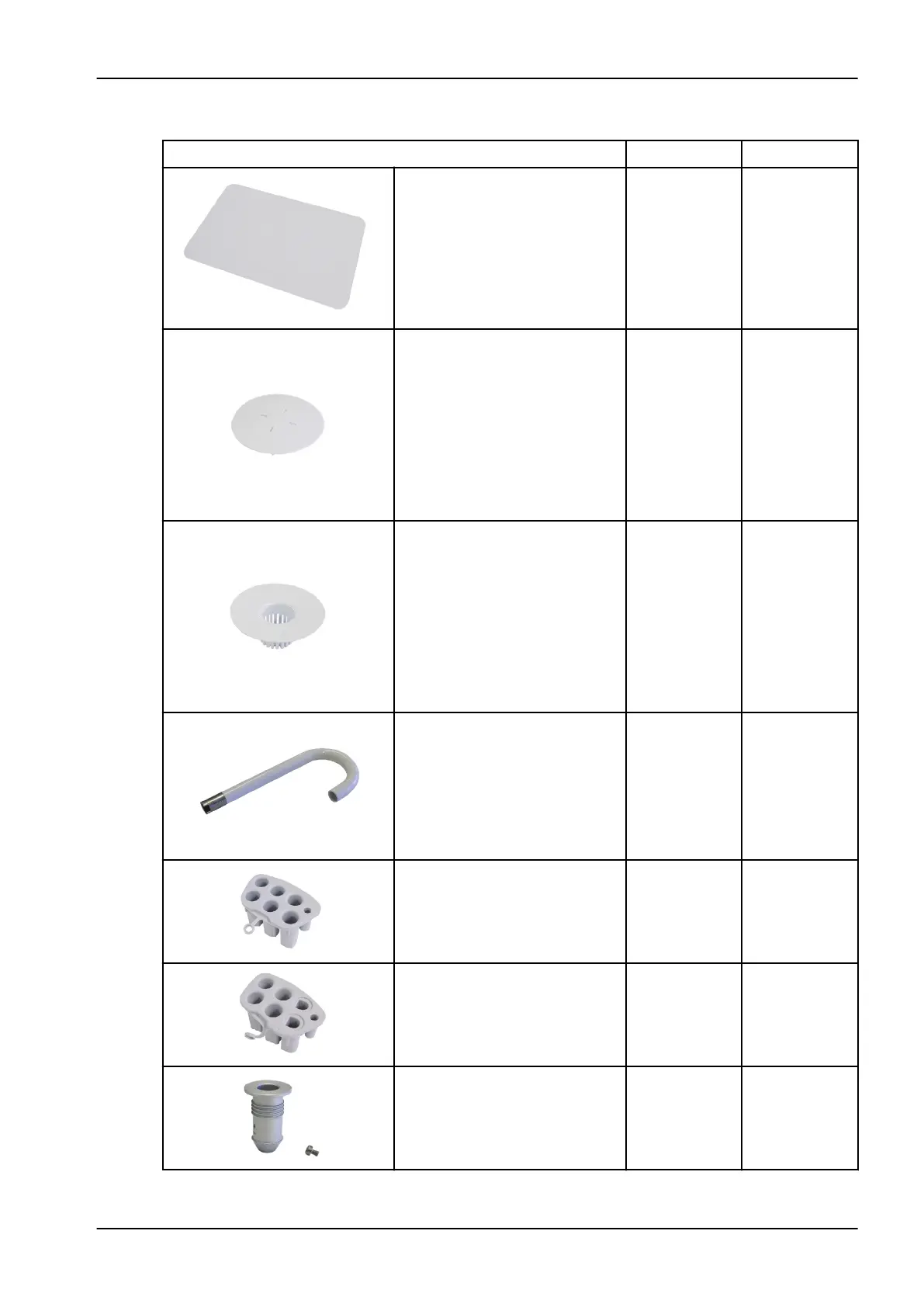

Infection control parts

Part Order number Material

Silicone mat for tray table, size

10029400 Silicone rubber

Cover cap for bowl filter 10005746 PSU

Bowl filter

Filter retains solid particles with

a diameter of >= 1.9 mm

10005329 PSU

Extension for cup fill tube 10005343

Instrument flushing holder for

dental units with Luzzani

MiniBright syringe

10036781 Silicone rubber

Instrument flushing holder for

dental units with Luzzani Ergo

syringe

10005269 Silicone rubber

Adapter for DCI syringe 10005801 Aluminium

32 Consumables

User's manual Planmeca Compact i 283

Default Chapter3
- Table of Contents3
1 Introduction11
2 Associated Documentation12
3 Training14
4 Registering Your Product15
5 Annual Maintenance16
6 Symbols on Product Labels17
7 For Your Safety19
- Safety Precautions19
- Safety Switches24
- Stopping Chair Movements Quickly25
8 Planmeca Compact I Dental Unit26
- Unit Configuration26
- Detachable Parts31
- Applied Parts35
- Bowl35
- Monitor37
- Mobile and Independent Cart37
- Tablet Holder38
- USB Connectivity39
  - Instrument Console39
  - Cuspidor40
- Water and Air Quick-Connectors40
- Planmeca Romexis Connection41
- Planmeca Prox X-Ray Unit42
- Planmeca Intraoral Scanner42
9 Planmeca Solanna and Planmeca Solanna Vision Operating Lights44
10 Instrument System45
- Delivery Arms45
  - Over-The-Patient (OP) Delivery Arm45
  - Side Delivery Arm46
- Instrument Console47
  - Instrument Console with Balanced Instrument Arms47
  - Instrument Console with Hanging-Tube Instruments49
- Quick-Connector Hoses49
- Instrument Functions51
- Tray Tables53
- Sterile Water System57
11 Suction System65
- Suction Arms65
- Flexy-Holder68
- Removing and Replacing Suction Tubes71
12 Patient Chair73
- Patient Recognition73
- Automatic Legrest74
- Trendelenburg Position75
- Armrests75
- Manual Headrest77
- Motorised Headrest80
13 Control Panel81
- Control Panel on Instrument Console81
  - Touchpad Functionality82
- Control Panel on Flexy-Holder84
14 Foot Control85
- Introduction85
- Foot Control Pedal86
- Foot Control Functions87
- Wireless Foot Control88
15 Switching Unit on and off91
16 Signing in and out92
- Signing in92
- Signing out94
17 Managing Users and Personal Settings95
- Introduction95
- Creating New User95
- Deleting User96
- Editing User Settings97
- Resetting Personal Settings102
18 Assigning Planid Card to User103
19 Checking Dental Unit Details106
- About this Unit106
- Unit Type107
- Unit Serial Number107
- Unit Software Version107
- Service107
- Network Settings108
- Message History109
- Bluetooth109
- Licences109
20 Operating Patient Chair110
- Manual Operation110
- Automatic Operation112
21 Operating Motorised Headrest117
- Normal Mode118
  - Joystick118
  - Foot Control118
- Tilt Mode119
  - Joystick119
  - Foot Control120
22 Operating Dental Unit121
- Language121
- Bowl Rinse122
- Cup Fill122
- Timer123
- Door Open / Assistant Call123
- Planmeca Solanna and Planmeca Solanna Vision Operating Light124
- Planmeca Solanna Vision Camera133
- X-Ray Film Viewer140
23 Operating Instruments141
- Instrument Logic141
- Micromotor142
- Bien-Air MCX Micromotor147
  - Torque Limit147
  - RPM Limit148
- Bien-Air MX2 Micromotor148
- Morita TORX Micromotor151
- Apex Locator155
- Turbine163
- Scaler168
- Planmeca Lumion Plus Polymerisation Light172
- Intraoral Camera and Planmeca Romexis173
  - Intraoral Camera Placed in Instrument Console174
  - Intraoral Camera Placed in Suction Holder176
- Planmeca Intraoral Scanner178
  - Operating Intraoral Scanner from Foot Control178
24 Operating Suction Handpieces180
- Saliva and High-Volume Suction180
- Tilting High-Volume Suction181
25 Programming182
- Introduction182
- Organising Items on Control Panel183
- Automatic Chair Positions183
  - Extended View184
  - Traditional View185
- Instrument Settings186
- Timer Settings197
- Bowl Rinse and Cup Fill197
- Planmeca Solanna and Planmeca Solanna Vision Operating Lights200
- Duration of Door Open / Assistant Call203
- Clock204
- Date205
- Wireless Foot Control206
26 Calibrating Clock210
27 Flushing and Cleaning Programs212
- When to Use Cleaning Programs212
- Before You Start212
- Short Instrument Flushing214
- Long Instrument Flushing218
- Suction Cleaning222
- Waterline Cleaning224
28 Cleaning and Disinfection238
- Introduction238
- Dental Unit Surfaces238
- Instruments241
- Cuspidor241
- Suction System244
- Planmeca WEK Water Disinfection System248
- Planmeca Prox248
- Planmeca Prosensor249
- Planmeca Intraoral Scanner249
- External PC249
29 Clean Water System250
- Introduction250
- Waterline Cleaning251
  - After the Working Day251
  - In the Morning255
30 Maintenance257
- Units with Wet Suction System258
- Units with Planmeca MICROVAC Separating Tank259
- Units with CS1 Separator260
- Units with Amalgam Separator260
  - METASYS Amalgam Separator261
  - DÜRR CAS1 Amalgam Separator262
- Units with VS/A Compatible Suction System263
- Oil Collector263
  - Instrument Console with Balanced Instrument Arms263
  - Instrument Console with Hanging-Tube Instruments264
31 Help and Error Messages265
- Overview265
- Help Messages in Short Form266
- Error Messages in Short Form274
- Viewing Help and Error Message History287
32 Consumables291
33 Disposal296
34 Technical Information297
- Technical Specifications297
- Instrument Classifications300
- Dimensions301
- Planmeca Compact I Dental Unit Water Consumption310
35 Certifications311
- EU Declaration of Conformity for Planid RFID-Reader311
- FCC Class B Notice for Wireless Foot Control311
- FCC Class B Notice for Planid RFID-Reader311
- Industry Canada (IC) Compliance Statement312
- Industrie Canada (IC) Déclaration de Conformité312
- RF Exposure312
