22.2.2 Reverse rotation
In normal operation the micromotor rotates in a clockwise direction. To
reverse the direction of rotation press Reverse. Reversing is possible only
when the micromotor is picked up from the instrument console, but not
operated.
When the micromotor rotates in the reverse direction, the indicator light is
amber. To enable a low ticking sound during reverse rotation, please contact
your Planmeca dealer.
NOTE

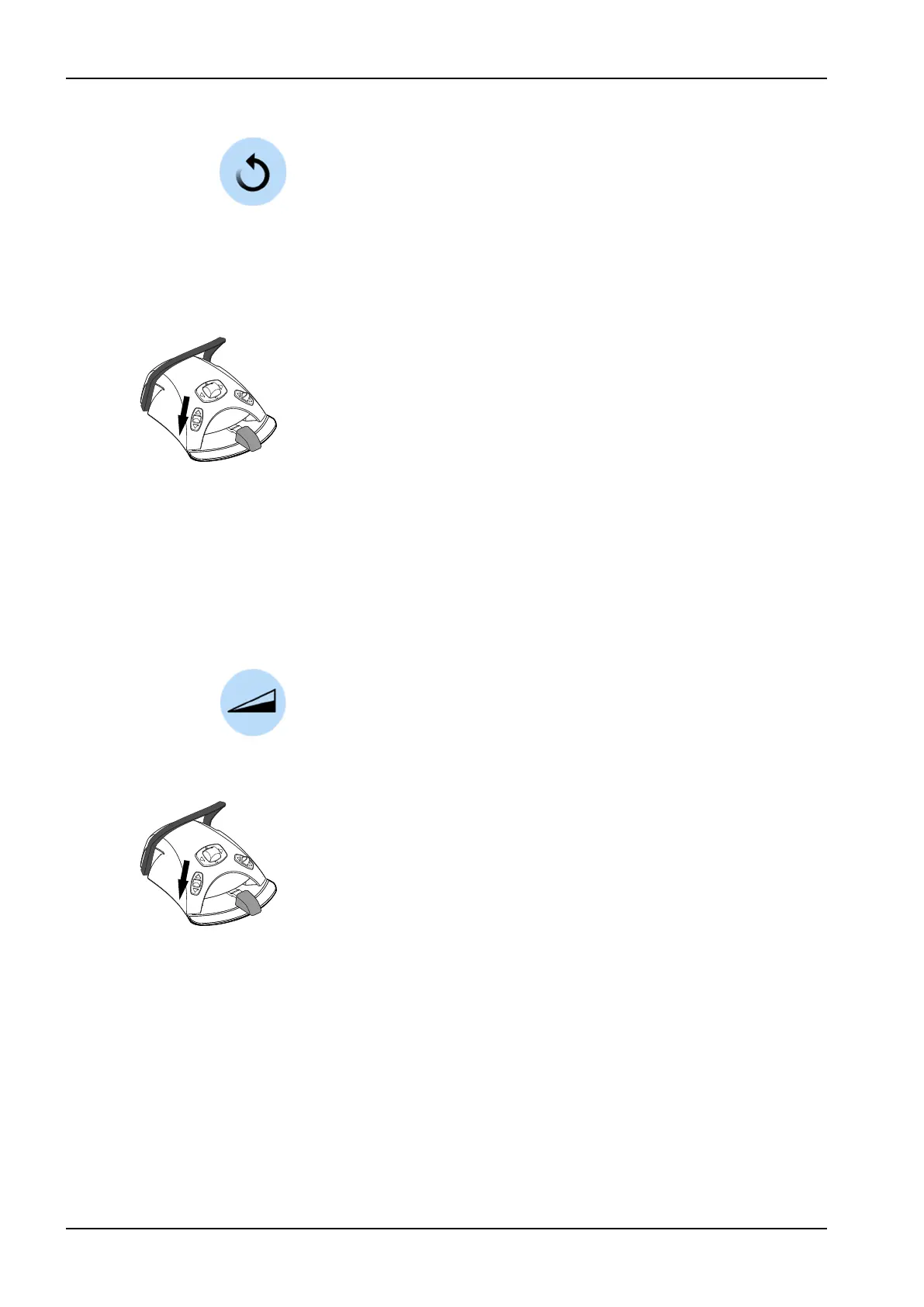

The foot control can be configured so that the reverse rotation is activated/
deactivated when you push the left-side knob down. Contact your Planmeca
dealer.
NOTE
Check the indicator light on the control panel to verify that pushing the left-
side knob down activates the correct function.
22.2.3 Speed/power limit
When the micromotor's speed/power limit is on and set to, for example, 50%,
the foot control pedal movement controls the speed/power between 10 -
50% instead of the normal range of 10 - 100%. The preset maximum value
is displayed on the control panel when the micromotor is picked up from the
instrument console.
When the speed/power limit is on, the indicator light on the control panel
button is green.
Control panel: Press Micromotor speed/power limit to reduce the
micromotor’s speed or power to a preset level. Press Micromotor speed/
power limit again to switch the power limit off.
NOTE
The foot control can be configured so that the micromotor’s speed or power
is limited when you push the left-side knob down. Contact your Planmeca
dealer.
NOTE
Check the indicator light on the control panel to verify that pushing the left-
side knob down activates the correct function.
NOTE
The speed/power limit can be programmed. See section "Instrument speed/
power limit" on page 151.
NOTE
Note that the speed/power limit depends on the instrument.
22.2.4 Instrument spray
The instrument cooling spray setting can be selected to be water & air, air or
no spray.
22 Operating instruments
108 Planmeca Compact i3 User's manual
