Planmeca Compact i3 - Patient Area Definition and Device Placement

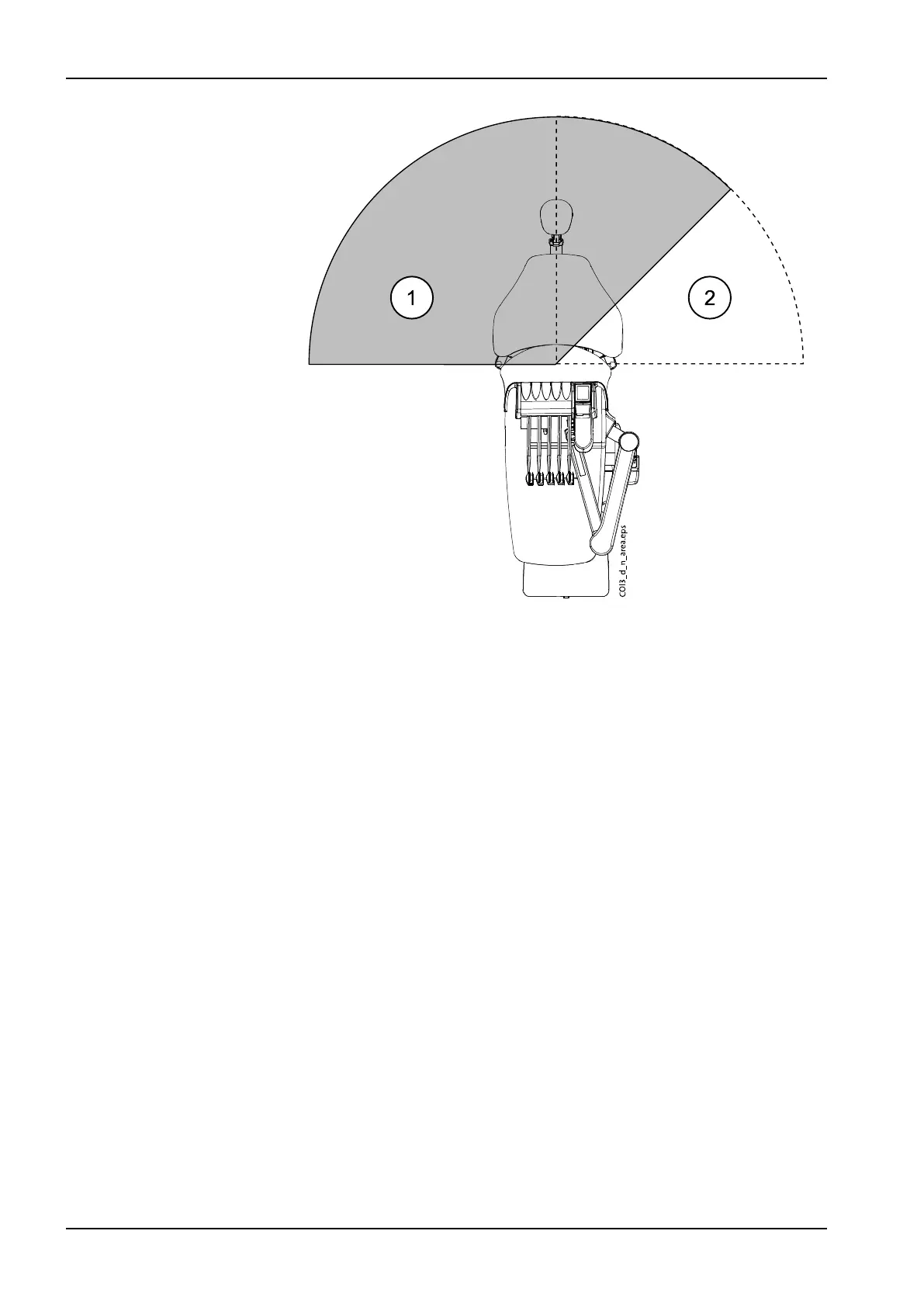

1. Dentist’s area
2. Assistant’s area
32.3.2 Patient area
The patient area is 1.5 m (59.1”) in each direction from the dental unit.
CAUTION
Use only Planmeca specified devices inside the patient area.
CAUTION
The floor of the patient area must be dry.
NOTE
Connect only Planmeca specified devices to the dental unit.
NOTE
The external PC must be protectively earthed and IEC 60950 -approved (CE
marked).
NOTE
The monitor must fulfil IEC 60601-1 ed.3 requirements.
