27.7 Clean-water bottle

Use a bottle brush and a mild soap- and water solution to clean the clean-

water bottle once a week.

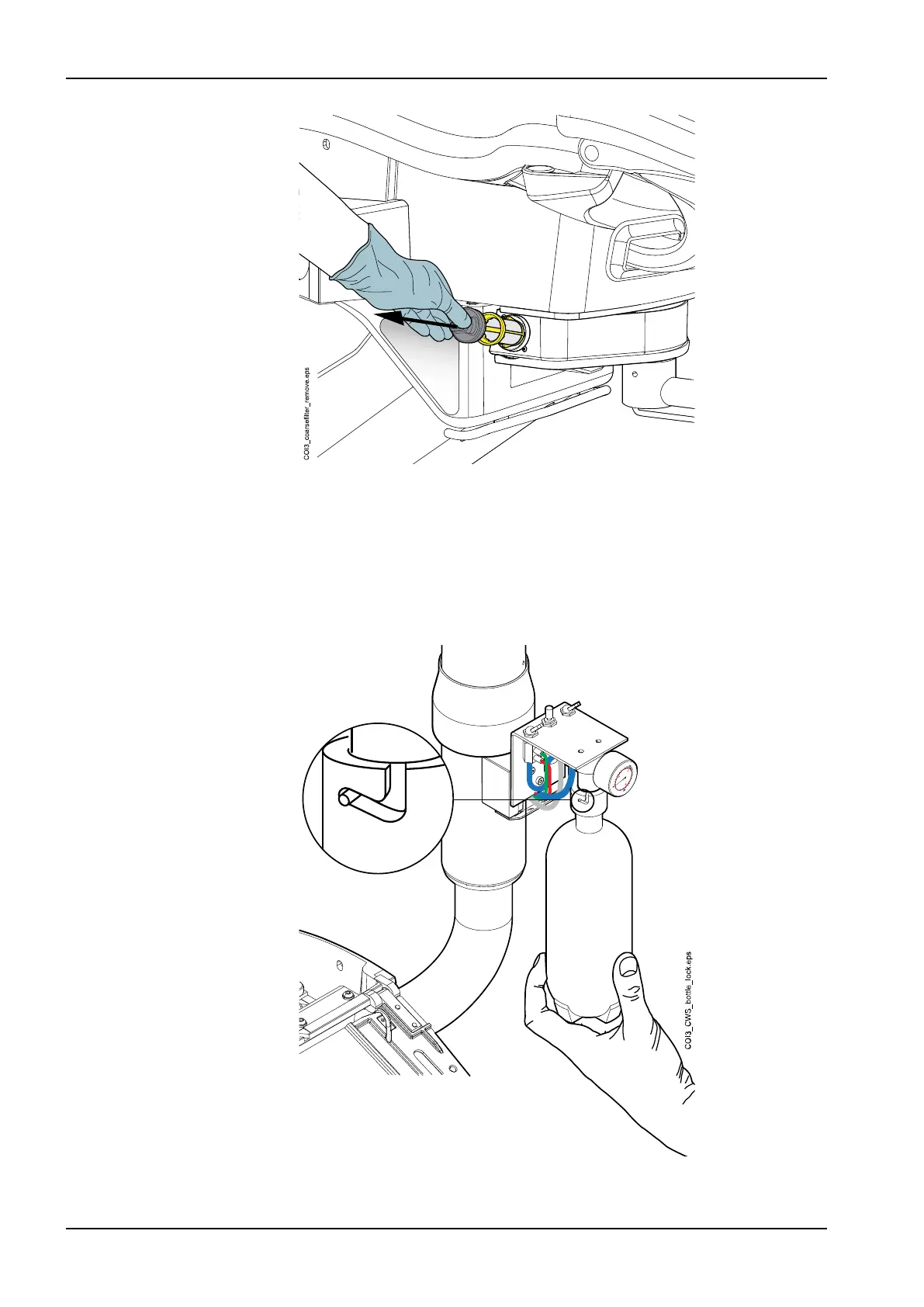

To remove the clean-water bottle from the dental unit, first turn the Water

bottle switch toward 'OFF'. Then, take a hold of the bottom of the bottle, turn

the bottle slightly so that the pin moves along the groove and pull the bottle

downwards.

27 Cleaning and disinfection

188 Planmeca Compact i3 User's manual
