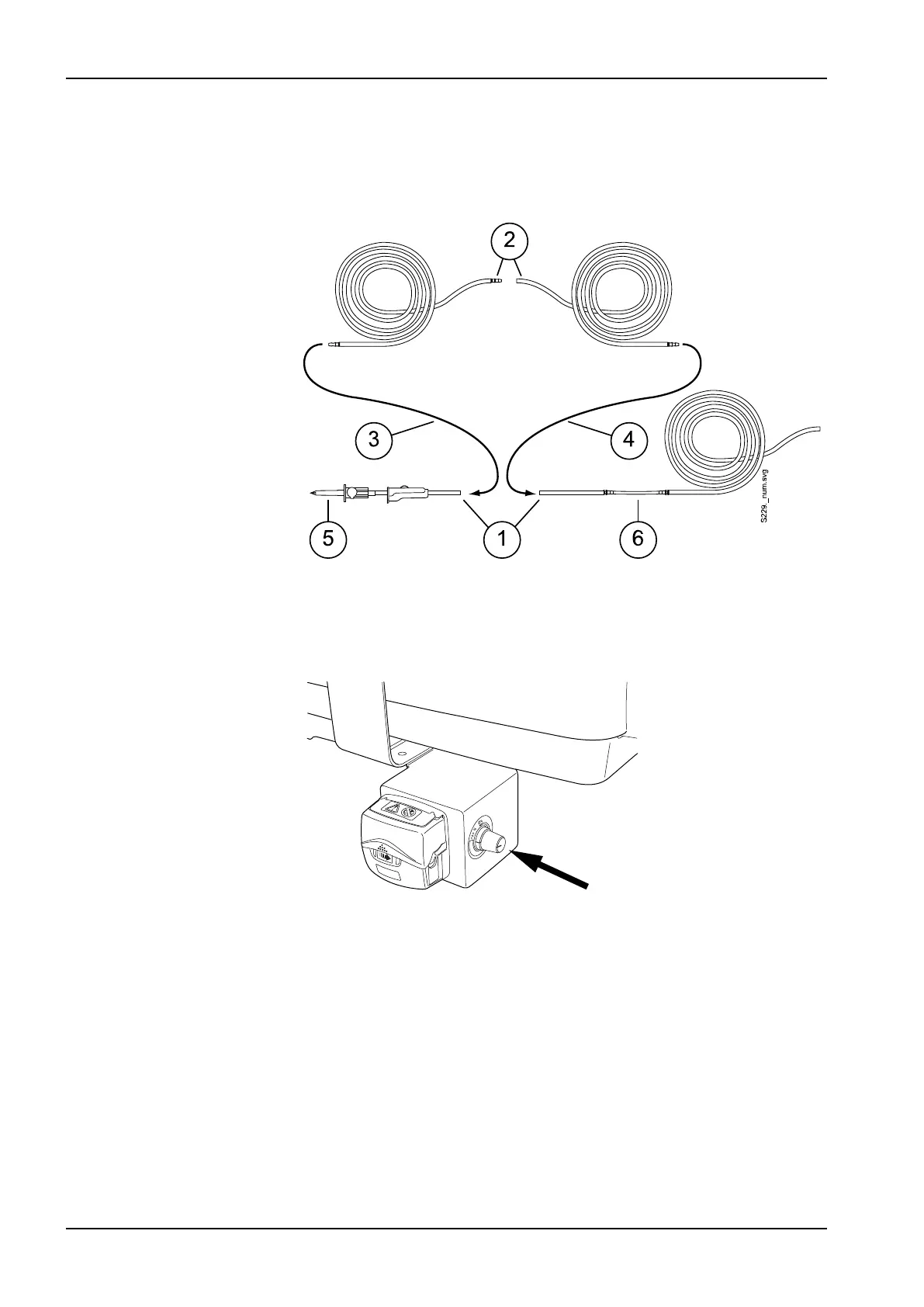

4. Attach the other end of the joint extension tube to the sterile water tube

with pump part (4).

5. This part (5) goes into the sterile water bag.

6. This part (6) goes into the pump.

10.6.4 Adjusting sterile water flow rate

Turn the black knob on the instrument console to adjust the sterile water flow

rate.

10 Instrument system

38 Planmeca Compact i3 User's manual

1 Introduction9
2 Associated documentation10
3 Training12
4 Registering your product13
5 Annual maintenance14
6 Symbols on product labels15
7 For your safety17
- 7.1 Safety precautions17
- 7.2 Safety switches20
- 7.3 Stopping chair movements quickly21
8 Planmeca Compact i3 dental unit23
- 8.1 Unit configuration23
- 8.2 Detachable parts24
- 8.3 Applied parts27
- 8.4 Monitor27
- 8.5 Tablet holder27
- 8.6 USB connectivity28
  - 8.6.1 Instrument console28
  - 8.6.2 Suction element29
- 8.7 Planmeca Romexis connection29
- 8.8 Planmeca intraoral scanner30
9 Planmeca Solanna and Planmeca Solanna Vision operating lights32
10 Instrument system33
- 10.1 Over-the-Patient (OP) delivery arm33
- 10.2 Instrument console34
  - 10.2.1 Instrument console with balanced instrument arms34
  - 10.2.2 Instrument console with hanging-tube instruments36
- 10.3 Quick-connector hoses36
- 10.4 Instrument functions38
- 10.5 Tray tables40
- 10.6 Sterile water system42
11 Suction system48
- 11.1 Suction arm48
- 11.2 Flexy-holder48
- 11.3 Removing and replacing suction tubes52
12 Patient chair54
- 12.1 Patient recognition54
- 12.2 Trendelenburg position54
- 12.3 Armrests55
- 12.4 Manual headrest56
13 Control panel60
- 13.1 Control panel on instrument console60
  - 13.1.1 Touchpad functionality61
- 13.2 Control panel on Flexy-holder63
14 Foot control64
- 14.1 Introduction64
- 14.2 Foot control pedal65
- 14.3 Foot control functions66
15 Switching unit on and off68
16 Signing in and out69
- 16.1 Signing in69
- 16.2 Signing out71
17 Managing users and personal settings72
- 17.1 Introduction72
- 17.2 Creating new user72
- 17.3 Deleting user73
- 17.4 Editing user settings74
- 17.5 Resetting personal settings79
18 Assigning PlanID card to user81
19 Checking dental unit details84
- 19.1 About this unit84
- 19.2 Unit type85
- 19.3 Unit serial number85
- 19.4 Unit software version85
- 19.5 Service85
- 19.6 Network settings86
- 19.7 Message history87
- 19.8 Bluetooth87
- 19.9 Licences87
20 Operating patient chair88
- 20.1 Swivelling chair88
- 20.2 Manual operation88
- 20.3 Automatic operation90
21 Operating dental unit95
- 21.1 Language95
- 21.2 Timer96
- 21.3 Door open / assistant call96
- 21.4 Planmeca Solanna and Planmeca Solanna Vision operating light97
- 21.5 Planmeca Solanna Vision camera106
- 21.6 X-ray film viewer113
22 Operating instruments114
- 22.1 Instrument logic114
- 22.2 Micromotor115
- 22.3 Bien-Air MCX micromotor120
  - 22.3.1 Torque limit120
  - 22.3.2 RPM limit121
- 22.4 Bien-Air MX2 micromotor121
- 22.5 Morita TORX micromotor124
- 22.6 Apex locator128
- 22.7 Turbine136
- 22.8 Scaler141
- 22.9 Planmeca Lumion Plus polymerisation light145
- 22.10 Intraoral camera and Planmeca Romexis146
  - 22.10.1 Intraoral camera placed in instrument console147
  - 22.10.2 Intraoral camera placed in suction holder149
- 22.11 Planmeca intraoral scanner151
  - 22.11.1 Operating intraoral scanner from foot control151
23 Operating suction handpieces153
- 23.1 Saliva and high-volume suction153
- 23.2 Tilting high-volume suction154
24 Programming155
- 24.1 Introduction155
- 24.2 Organising items on control panel156
- 24.3 Automatic chair positions157
  - 24.3.1 Extended view157
  - 24.3.2 Traditional view159
- 24.4 Instrument settings159
- 24.5 Timer settings170
- 24.6 Planmeca Solanna and Planmeca Solanna Vision operating lights171
- 24.7 Duration of door open / assistant call175
- 24.8 Clock175
- 24.9 Date176
- 24.10 Adjusting maintenance functions177
25 Calibrating clock179
26 Flushing and cleaning programs181
- 26.1 When to use cleaning programs181
- 26.2 Before you start181
- 26.3 Short instrument flushing183
- 26.4 Long instrument flushing186
- 26.5 Manual suction cleaning189
27 Cleaning and disinfection191
- 27.1 Introduction191
- 27.2 Dental unit surfaces191
- 27.3 Instruments194
- 27.4 Instrument console194
  - 27.4.1 Oil collector194
- 27.5 Instrument flushing holder195
- 27.6 Coarse filter195
- 27.7 Clean-water bottle196
- 27.8 Suction system197
- 27.9 Planmeca intraoral scanner199
- 27.10 External PC199
28 Clean water system201
- 28.1 Introduction201
- 28.2 Waterline cleaning202
  - 28.2.1 After the working day203
  - 28.2.2 In the morning206
29 Help and error messages209
- 29.1 Overview209
- 29.2 Help messages in short form210
- 29.3 Error messages in short form219
- 29.4 Viewing help and error message history231
30 Consumables235
31 Disposal239
32 Technical information240
- 32.1 Technical specifications240
- 32.2 Instrument classifications242
- 32.3 Dimensions243
- 32.4 Planmeca Compact i dental unit water consumption247
33 Certifications248
- 33.1 CE248
- 33.2 EU Declaration of Conformity for PlanID RFID-reader248
- 33.3 FCC Class B Notice for PlanID RFID-reader248
- 33.4 Industry Canada (IC) Compliance Statement248
- 33.5 Industrie Canada (IC) Déclaration de conformité249
- 33.6 RF Exposure249
