The Flexy-holder is a suction holder that is attached to the suction arm. Its
integrated control panels enable you to control selected functions of the
dental unit. For more information on the control panel, see section "Control
panel on Flexy-holder" on page 55.

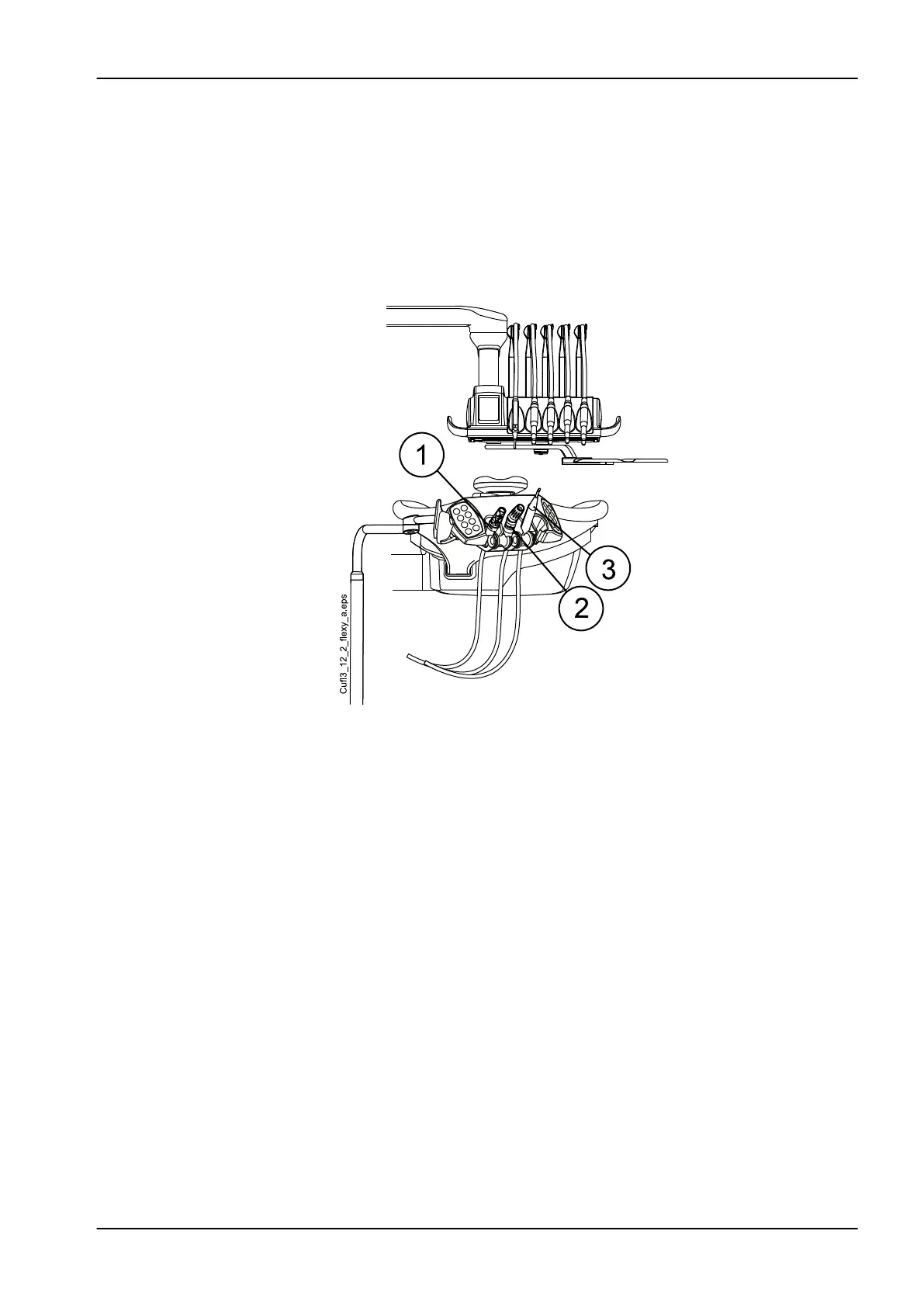

The Flexy-holder has three openings. The two left-most openings can be
equipped with suction handpieces and the right-most with the assistant’s
syringe. In addition, one or two supplementary holders or a holder for the
intraoral scanner can be placed on either side of the Flexy-holder. The
supplementary holder can be equipped with a USB intraoral camera.
1. Saliva suction handpiece
2. High-volume suction handpiece
3. Syringe
NOTE
The intraoral scanner and the USB intraoral camera can not be
simultaneously attached to the Flexy-holder. If the intraoral scanner is
placed in the Flexy-holder, the USB intraoral camera can be placed in the
instrument console.
Optional third suction tube
The dental unit may optionally be equipped with three suction tubes. Also, a
spittoon funnel can be attached to the high-volume suction tube.
When the suction tubes are placed in all three Flexy-holder openings, the
assistant's syringe and one other instrument (intraoral scanner, USB
intraoral camera or polymerisation light) can be placed in the supplementary
holders.
11 Suction system
User's manual Planmeca Compact i3 41
