Planmeca ProMax Technical Manual

Chapter E - C-ARM AND IMAGING ARM
Planmeca ProMax E-45
PANORAMIC BEAM AND PATIENT POSITIONING
MECHANISM ADJUSTMENT
Technical Manual
Layer light adjustment
Remove the patient support table cover according to the instructions given in section 2.1
“Patient support table cover” on page F-7.
To adjust the light vertical position loosen the attachment screw of the laser light assembly
and rotate the assembly (Fig. 63, 1).
To focus the light beam adjust the depth of the lens assembly (Fig. 63, 2)
To adjust the light beam angle rotate the lens assembly of the light (Fig. 63, 3).

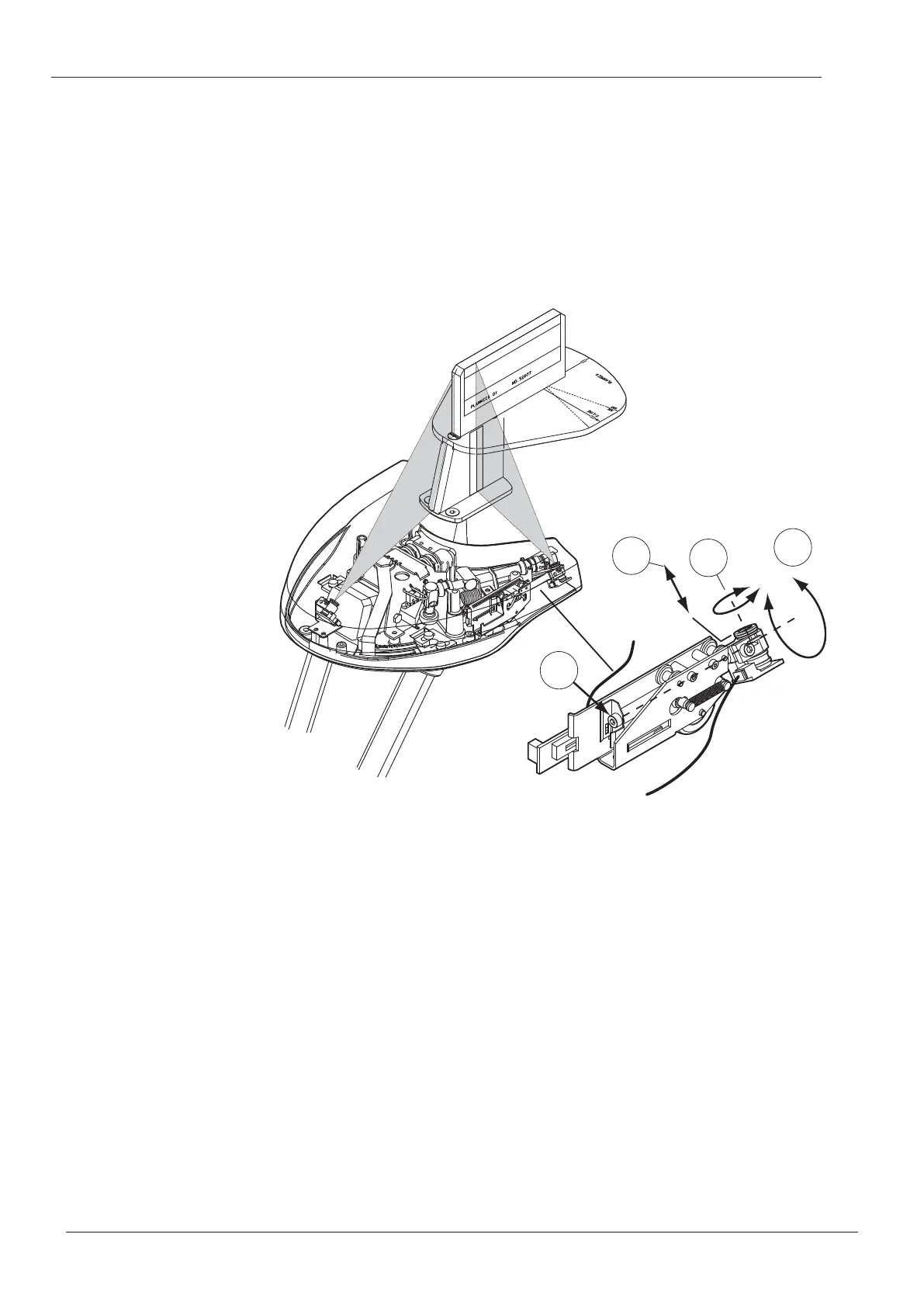

Figure 63
Adj_pat_pos_lights_a.eps
1
2
3
1
2
Layer light

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
