Planmeca ProMax Technical Manual

Chapter E - C-ARM AND IMAGING ARM
Planmeca ProMax E-47
PANORAMIC BEAM AND PATIENT POSITIONING
MECHANISM ADJUSTMENT
Technical Manual
Adjusting the Frankfort plane positioning light
Remove the front cover plate according to the instructions given in section 2.1 “Removing the
telescopic column upper front panel” on page G-8.
To adjust the light horizontal position loosen the attachment screw of the laser light roller
assembly (Fig. 65, 1). Rotate the assembly so that the light beam will come out from the col-
umn front cover opening. The horizontal position of the light can be fine-adjusted by moving
the light assembly. Loosen the light assembly attachment screw (Fig. 65, 2) and rotate the
assembly.
To adjust the light beam angle rotate the lens assembly of the light (Fig. 65, 3).
To focus the light beam adjust the depth of the lens assembly (Fig. 65, 4)

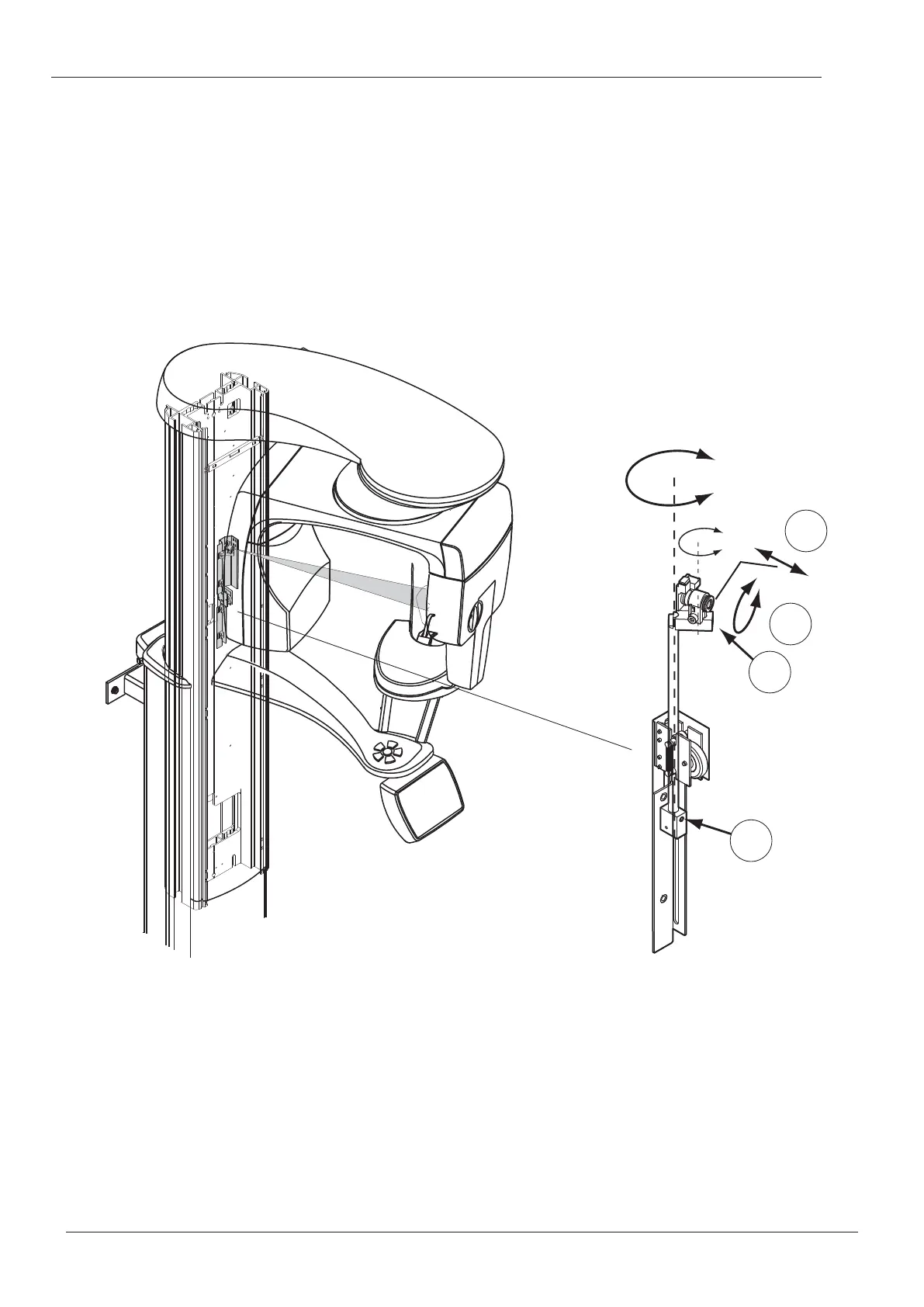

Figure 65
NOTE The light beam must reach the rear end of the Frankfort plane alignment tool. Make
sure that the light beam is not limited by the column front cover.
Digi_Adj_pat_pos_lights2_a.eps
1
2
3
4

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
