Chapter G - COLUMN
Planmeca ProMax G-23
REPLACING THE COLUMN MOTOR
Technical Manual

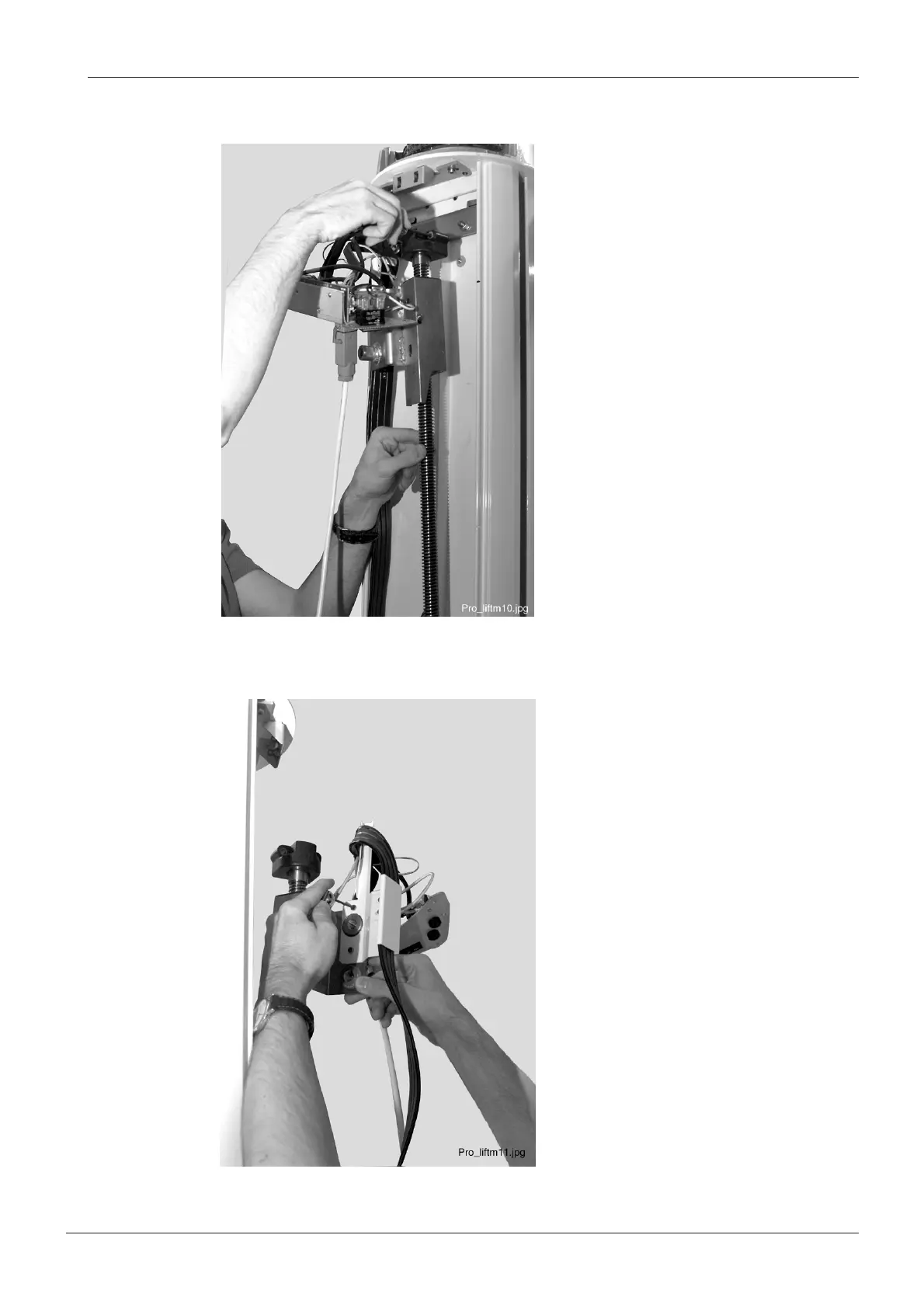

Detach the motor absorber support. Note that you have to prevent the motor from falling down
when the support is detached.
Figure 45
Remove the column cable guide plate from the lift nut.
Figure 46
