Chapter G - COLUMN
G-24 Planmeca ProMax
REPLACING THE COLUMN MOTOR
Technical Manual

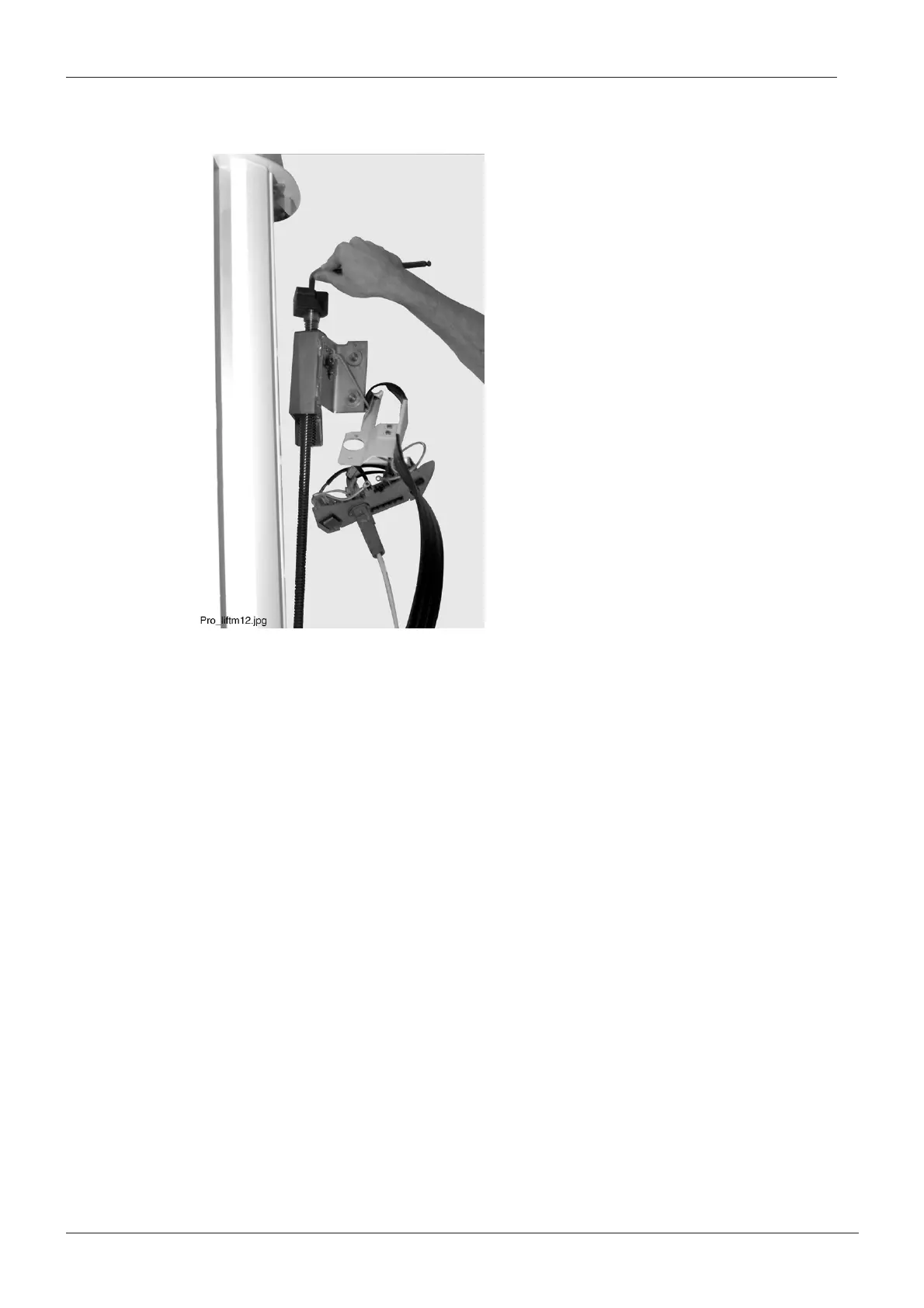

Remove the absorber support from the motor screw and rotate the lift nut out from the motor
screw.
Figure 47
Install the new lift nut assembly in reverse order.
Make sure that you have connected the emergency stop switch before attaching the motor
cover to its position.
