Planmeca ProMax Technical Manual

Chapter G - COLUMN
Planmeca ProMax G-37
REPLACING PCBS
Technical Manual

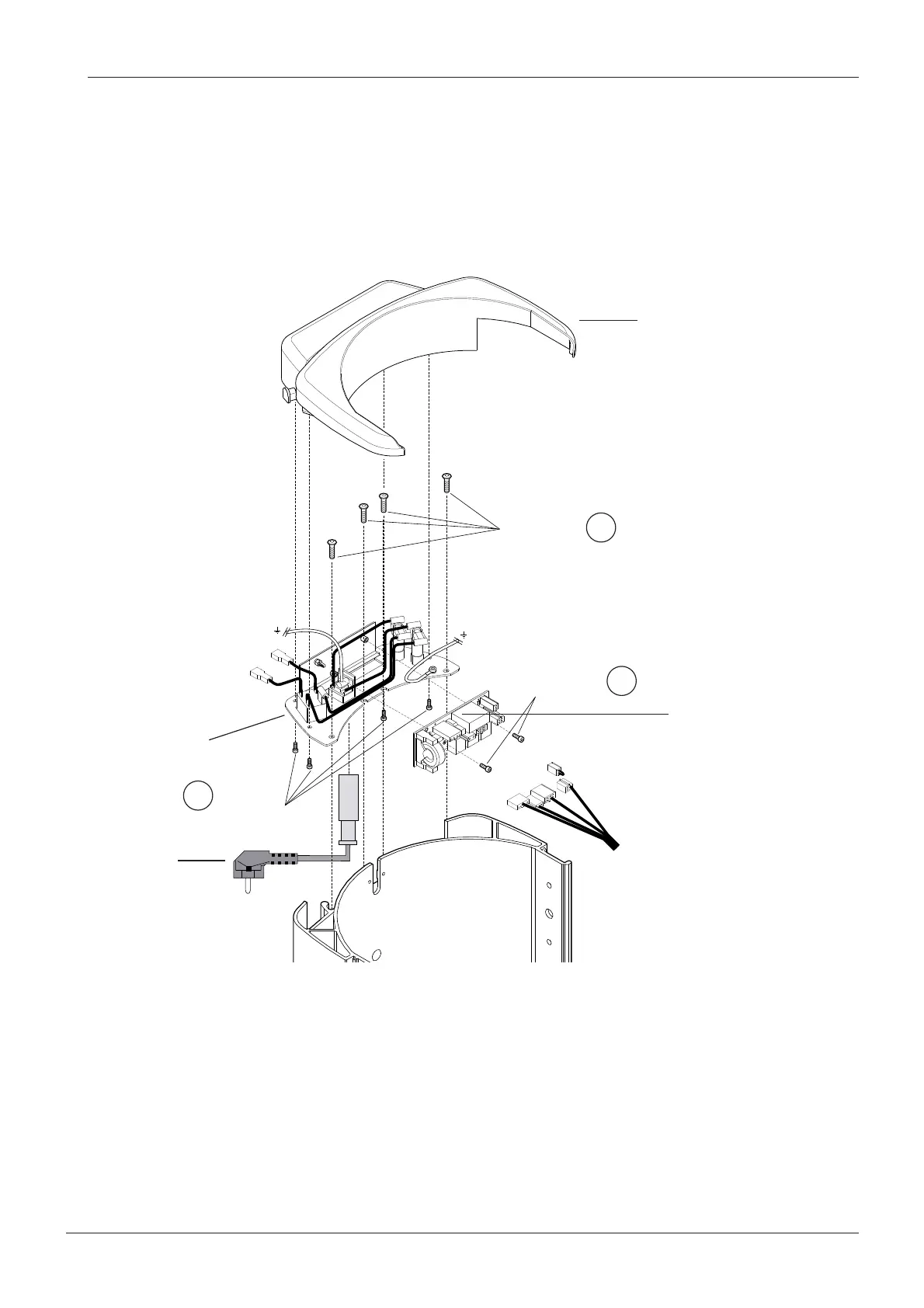

Unscrew the four M4x16 DIN 912 attachment screws of the column top cover with the 3mm
Allen key and remove the cover (Fig. 60, 1).
Unscrew the four M4.8x19 torx 7981 attachment screws of the Input module and detach the
module (Fig. 60, 2).
Disconnect all the cables that are connected to the Input PCB. Unscrew the two M4x16 DIN
912 screws with a 3mm Allen key from the Input PCB and remove the PCB (Fig. 60, 3).
Install the new PCB in reverse order.
Figure 60
.x1 torx 1
x1  1
x1  1
J4
J9
J8
J7
J2
J3
J13
Jumpper
InputPcb.eps
Column top cover
Input module
Input PCB
Unplug the power
supply cable
1
2
3
