Planmeca ProMax Technical Manual

Chapter H - CEPHALOSTAT
H-46 Planmeca ProMax
ADJUSTMENTS AND CALIBRATIONS
Technical manual

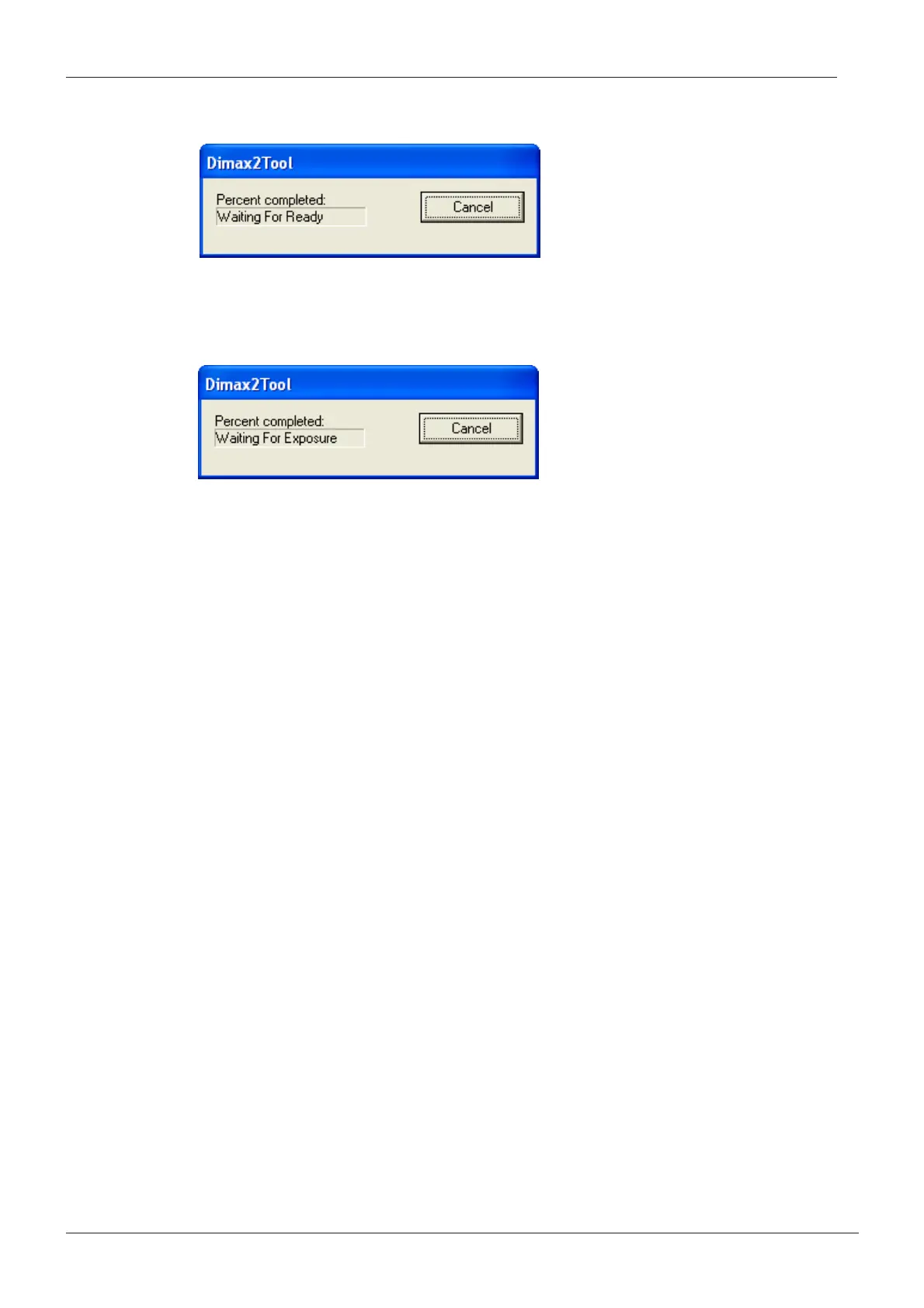

The Dimax2Tool window with text “Waiting For Ready” appears.
Figure 81
Touch the ready field to drive the X-ray to the exposure position.
The text “Waiting for Exposure” appears.
Figure 82
The triangle on the image must be even, without any irregularities. If it is not, recalibrate the
sensor head. If recalibration does not help, check that the Romexis, DIDAPI and drivers you
are using are all from the same CD rom. Check also the cephalostat adjustments by taking an
exposure from the ear posts (see section 1.17 “Checking the adjustment” on page H-54).

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
