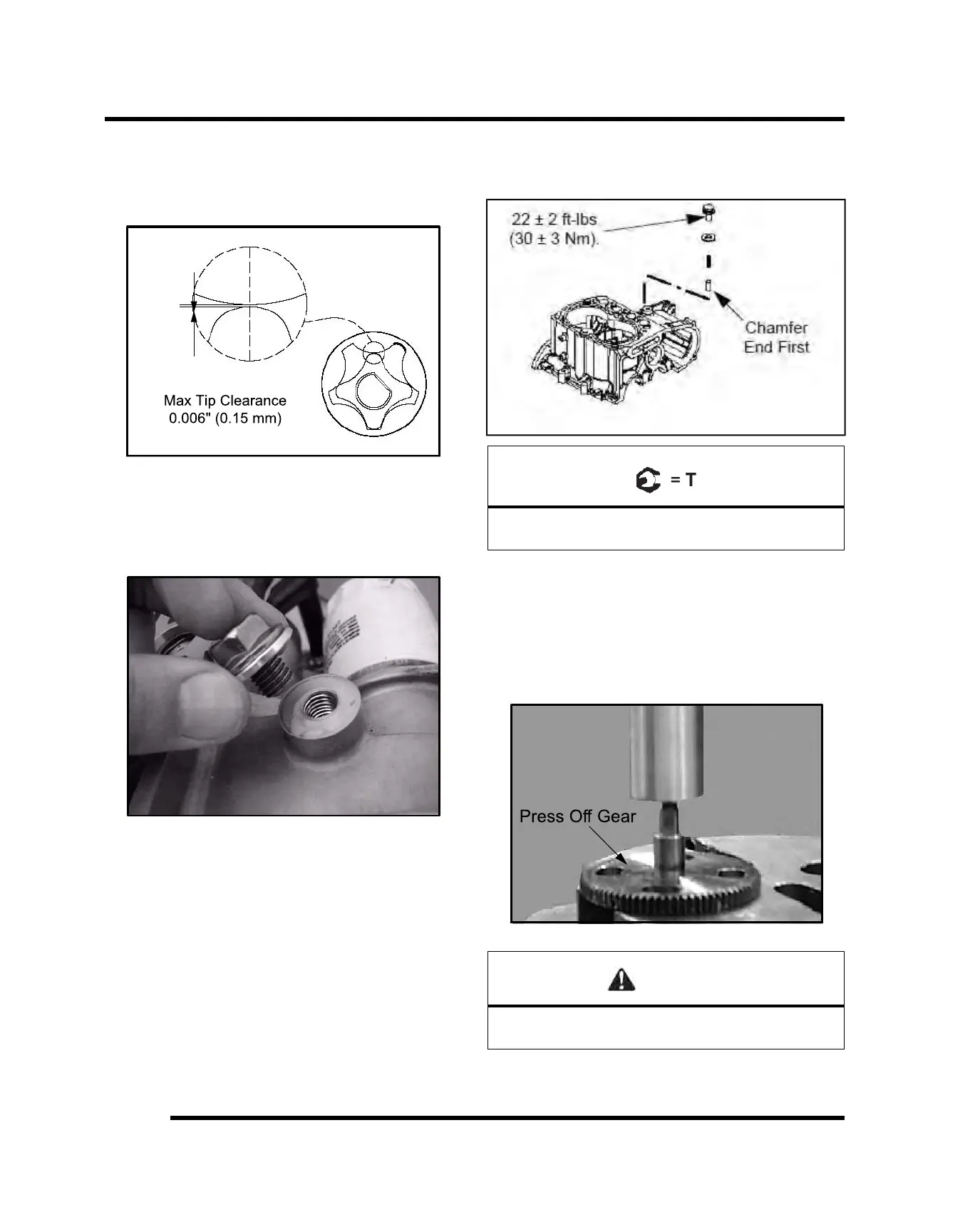

28. Use a feeler gauge to measure the clearance
between the two rotors. Measure the gap between
the two rotor tips as shown below. The clearance
should not exceed 0.006" (0.15 mm).
29. Remove the oil pressure relief. The oil pressure relief
consists of a bolt, washer, spring, and valve (dowel).
Inspect the valve (dowel) for signs of possible
obstructions. Use compressed air to blow out any
debris.
30. Reinstall the valve (dowel chamfered end first).
Install the spring, washer, and bolt. Torque to
specification.
Oil Pressure Relief Bolt:
22 ± 2 ft-lbs (30 ± 3 Nm)
NOTE: Be sure to place the tapered end of the
valve (dowel) in first. If the valve is installed
incorrectly, oil pressure and oil priming problems
will occur.
31. Carefully press the gear off the assembly while
supporting the housing assembly.
CAUTION
Wear appropriate safety gear during this procedure.
Protective gloves, clothing and eye wear are required.
