3.52
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

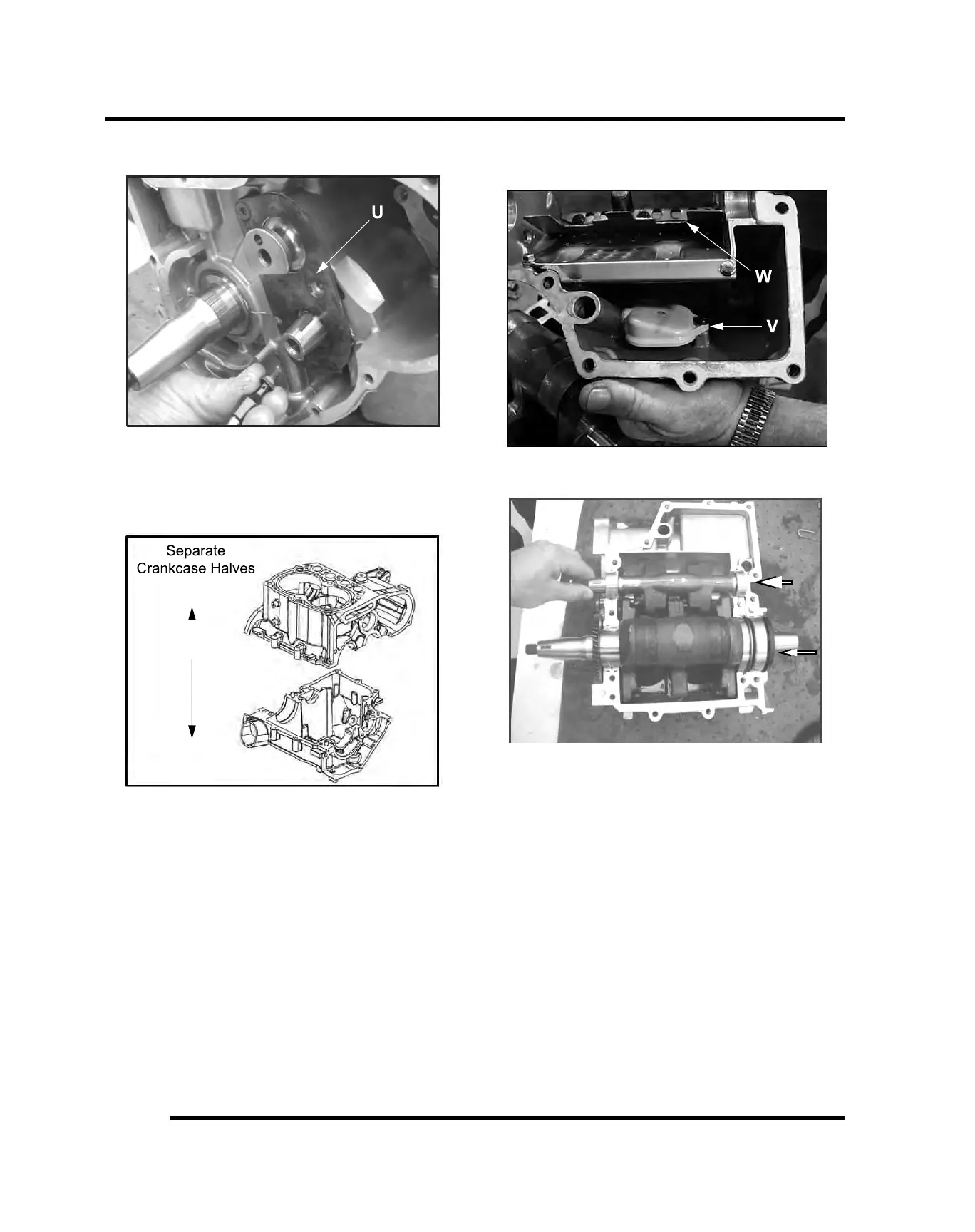

37. Remove thrust plate (U).
38. Remove PTO end engine mount. Remove crankcase
bolts. Tap on the reinforced areas on the cases using
soft hammer. Carefully separate the two crankcase
halves.
NOTE: Only remove the oil baffle if the baffle is
damaged. When removing the oil baffle bolts,
use a heat gun to heat the bolts and loosen the
Loctite™. This will prevent any possible damage
to the bolts or to the crankcase casting.
39. Remove and clean oil pick up (V) and oil baffle
weldment (W).
40. Remove balance shaft and crankshaft.
ENGINE
