9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

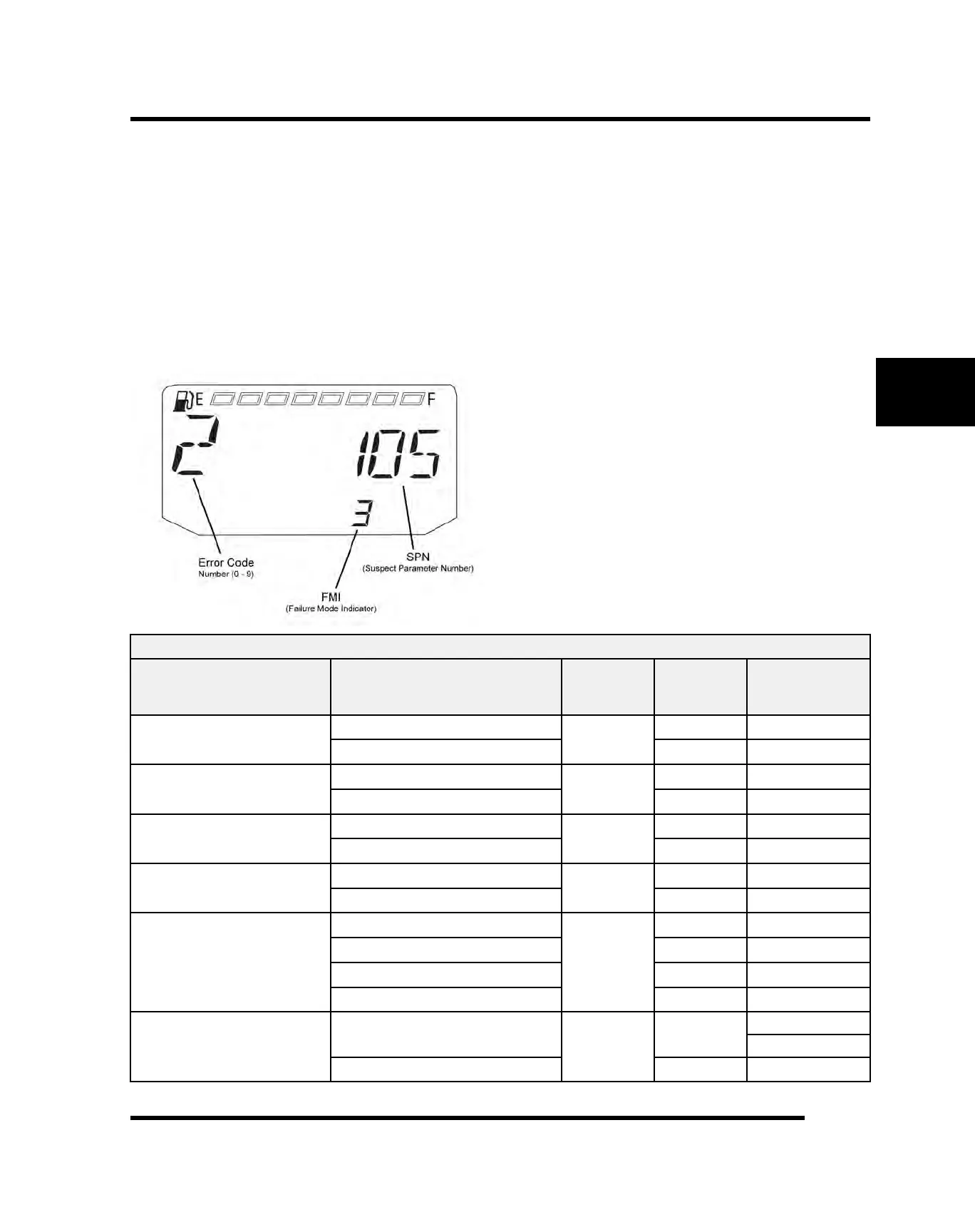

3. A set of three numbers will appear in the information
area.
• The first number (located far left) can range from 0
to 9. This number represents the total number of
trouble code present (example: 2 means there are
3 codes present).
• The second number (located top right) can be 2 to
6 digits in length. This number equates to the
suspected area of fault (SPN).
• The third number (located bottom right) can be 1 to
2 digits in length. This number equates to the fault
mode (FMI).
4. If more than one code exists, press the MODE button
to advance to the next trouble code.
5. To exit the diagnostic mode, press and hold the
MODE button or turn the ignition key OFF once the
codes are recorded.
DIAGNOSTIC TROUBLE CODE TABLE
Component
Condition SPN FMI
Digital
Wrench® P-
Code
Throttle Position Sensor (TPS)
Voltage Too High
51
3 P0123
Voltage Too Low
4 P0122
Vehicle Speed Signal
Data Erratic or Intermittent (or missing)
84
2 P0503
Received Vehicle Speed Has Error
19 C1069
Manifold Absolute Pressure Sensor
(T-MAP)
Voltage Too High
102
3 P0108
Voltage Too Low
4 P0107
Intake Air Temperature (T-MAP)
Voltage Too High
105
3 P0113
Voltage Too Low
4 P0112
Engine Temperature Sensor (ECT)
Voltage Too High
110
3 P0118
Voltage Too Low
4 P0117
Temperature Too High
16 P0217
Engine Overheat Shutdown
0 P1217
System Power
(Battery Potential / Power Input)
Voltage Too High
168
3
P0563
C1063
Voltage Too Low
4 P0562
ELECTRONIC FUEL INJECTION
