9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

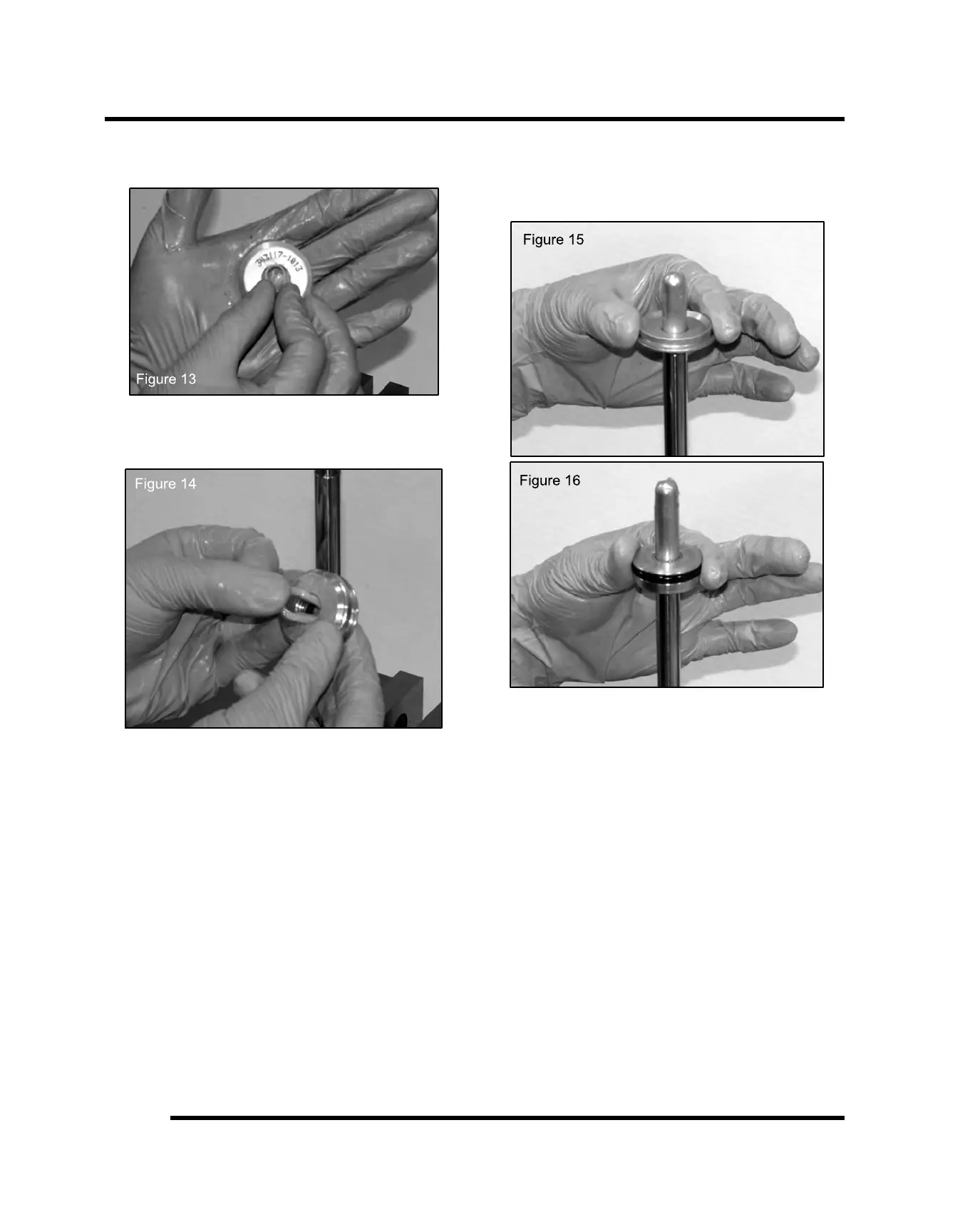

6. Install a new wiper seal in the body cap (Fig. 13).
7. Install a new u-cup seal into bearing assembly (Fig.
14). After installing u-cup seal, install a new o-ring.
8. Install the 5/8” shock shaft seal protector tool onto
the shock shaft. Install the body cap (Fig. 15), and
then the bearing assembly (Fig. 16) onto the shock
shaft.
9. Install the compression valve shim stack onto the
shock shaft.
NOTE: The last compression valve shim is the
air bleed shim. The shim must be orientated
correctly with the piston valve to allow air to
bleed through the assembly during installation.
