6.34
9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.

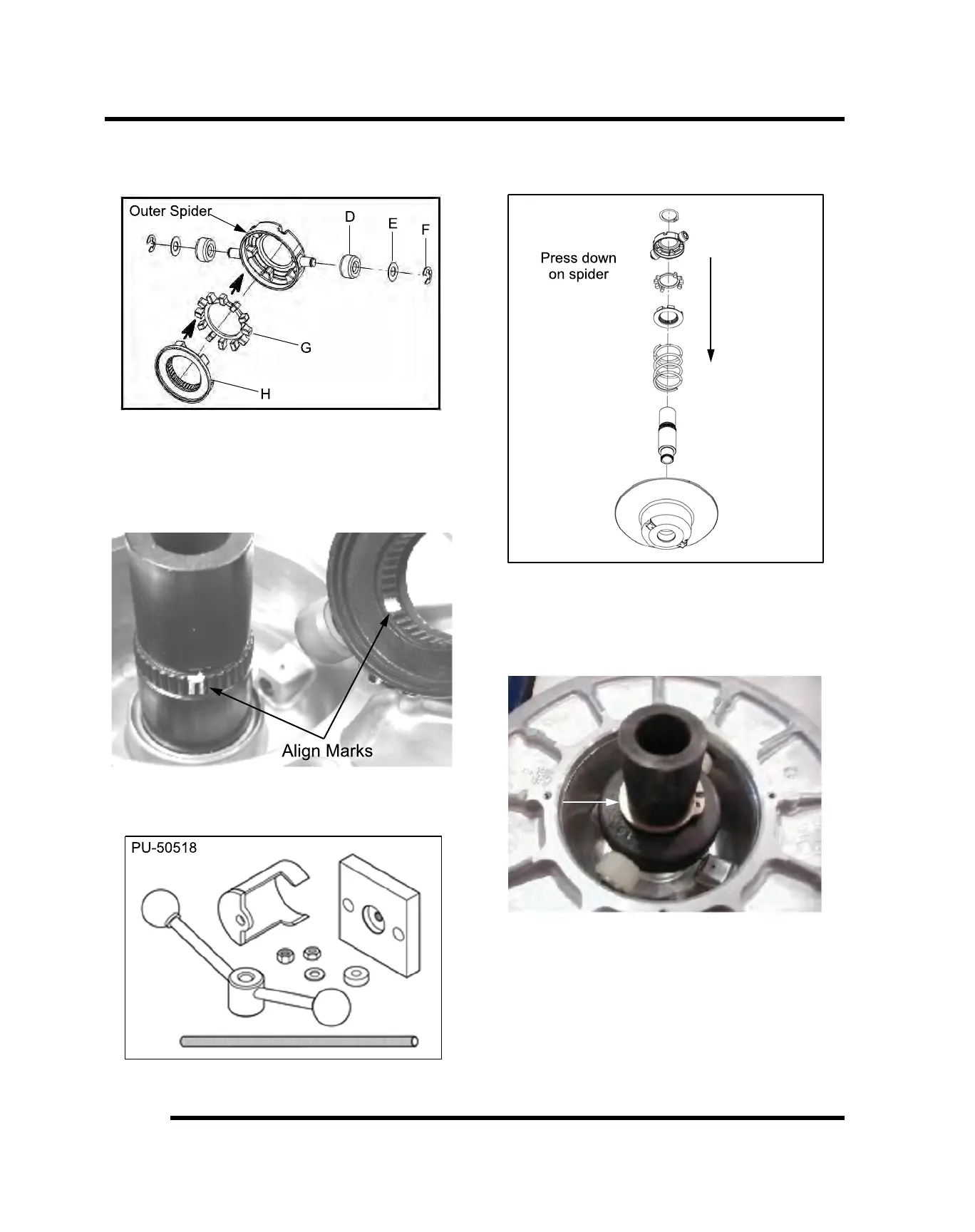

9. Install the spider dampener (G) inside the outer
spider and install the inside spider plate (H).
10. Install the spider assembly onto the shaft with the
retaining ring on top of the spider. NOTE: Use the
marks previously made to align the skip tooth spider,
or use the “X” on top of the spider and align it with
the skip tooth on the shaft.
11. Place the driven clutch into the Universal Clutch
Compressor PU-50518.
12. Press down on the top of the spider assembly,
pushing the spider onto the shaft.
13. Slowly compress the spider into place. If the spider
appears to bind while compressing, stop and make
sure the skip-tooth on the shaft and the spider are
aligned. Once the spider passes the retaining ring
notch on the shaft, install the retaining ring.
CLUTCHING
