9924707 - 2013–2014 RZR 800 Service Manual
© Copyright 2013 Polaris Sales Inc.
14. Install the cam (helix) assembly over the shaft. Line
up the “X” on the cam, “X” on spider, and “X” on the
stationary sheave or use the marks previously made

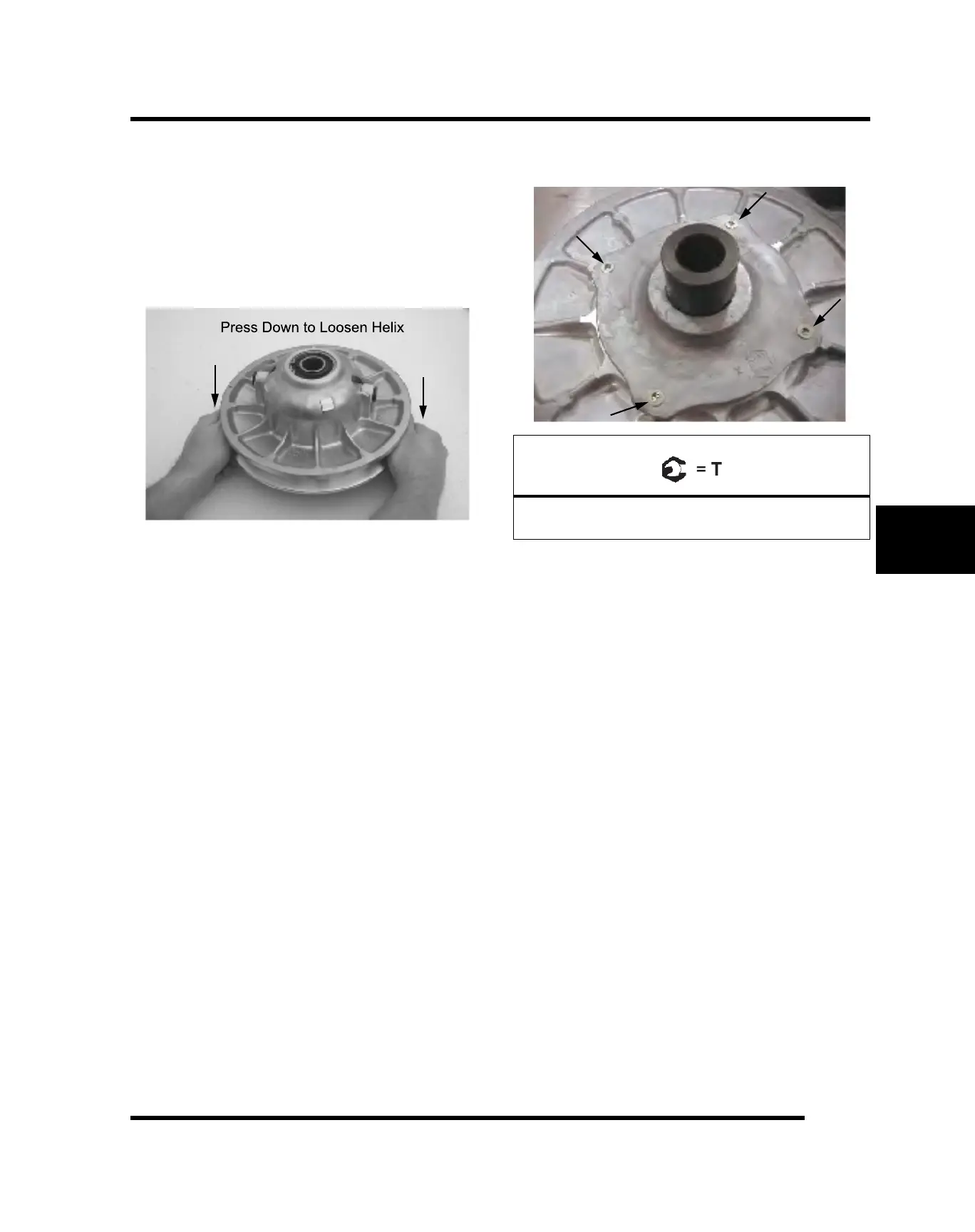

before disassembly. NOTE: If the cam assembly
(helix) is difficult to install, be sure the sheaves are
aligned. To align the sheaves place the clutch
assembly on a flat surface with the cam assembly
(helix) side down. Press down on the moveable
sheave belt face with both hands and the helix will
release.
15. Use a T25 Torx driver to install the four helix
retaining screws and torque to specification.
Helix Retaining Screws:
42-52 in-lbs (4.75 - 5.88 Nm)
CLUTCHING
