Pulmonetic Systems LTV 950 - Page 240

Page C-4 LTV
®
Series ventilator Operator’s Manual
p/n 10664, Rev. Y
6) Torque tighten the mounting screws to these specified values (do not over tighten to avoid
damage to the finish washers);
• Torque tighten the screws in
the back panel of the ventilator to 60 in-oz (0.42 Nm)
• Torque tighten the screws in
the sides of the ventilator to 20 in-oz (0.14 Nm)

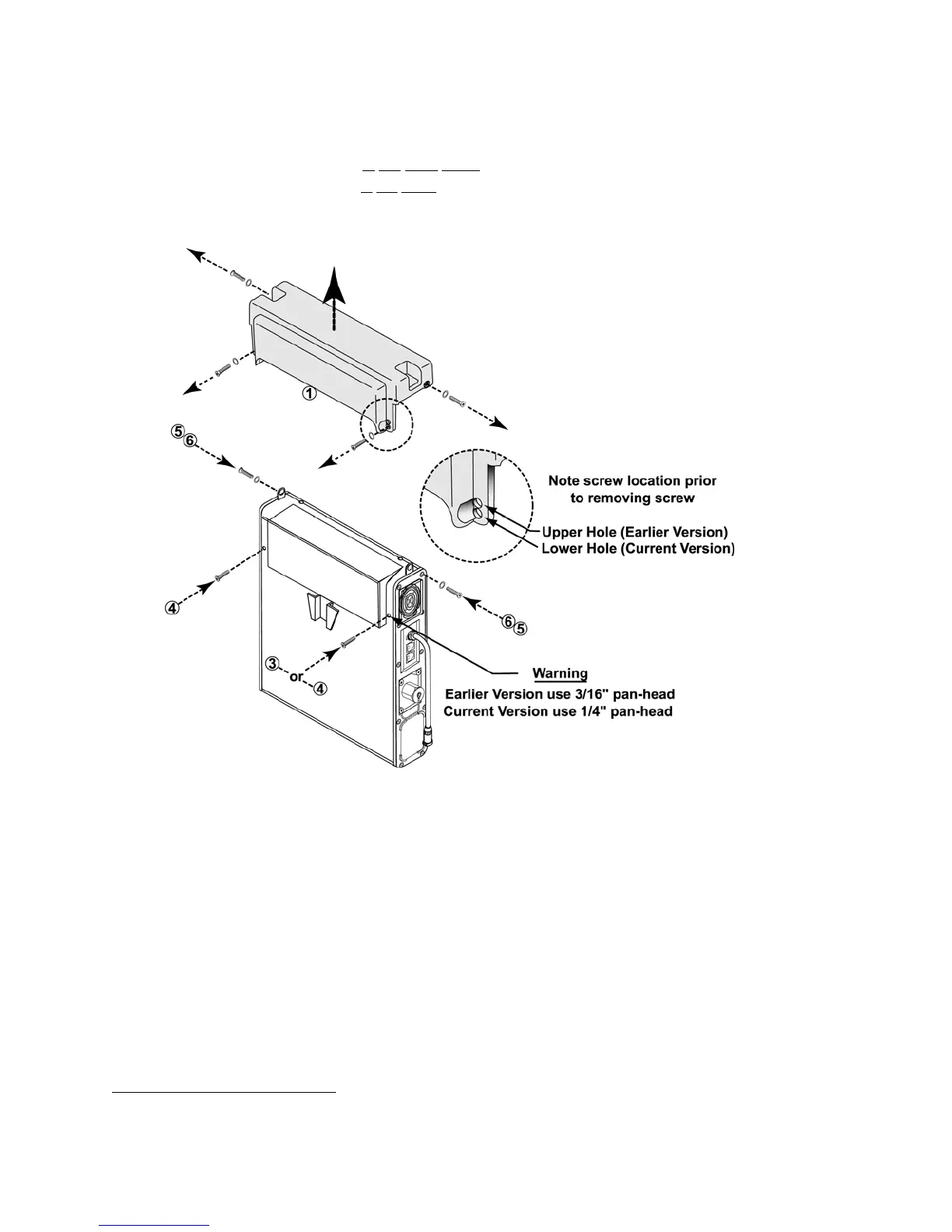

• Item c, Protective Boot, Upper (1), P/N 11421
• Item d, Protective Boot, Lower (1), P/N 11420
• Item e, #4-40 X 3/16” Pan-head screw (1), P/N 10438
83
• Item f, #4-40 X 1/4” Pan-head mounting screws (2), P/N 10435
83
• Item g, #4-40 X 1/4” Flat-head mounting screws (6), P/N 10430
83
• Item h, Finish Washers (6), P/N 10191, 19119-001, or 11919-002
83
83
Contained in Pulmonetic Systems Replacement Screws kit, P/N 11149.
