• Item g, #4-40 X 1/4” Flat-head mounting screw (1) P/N 10430
87
• Item h, Finish Washers (8) P/N 10191, 19119-001, or 19119-002
87
• Item i, #4-40 X 1/2” Flat-head mounting screws (6) P/N 10338
87
• Item j, #4-40 X 3/8” Flat-head mounting screws (2) P/N 10474
87

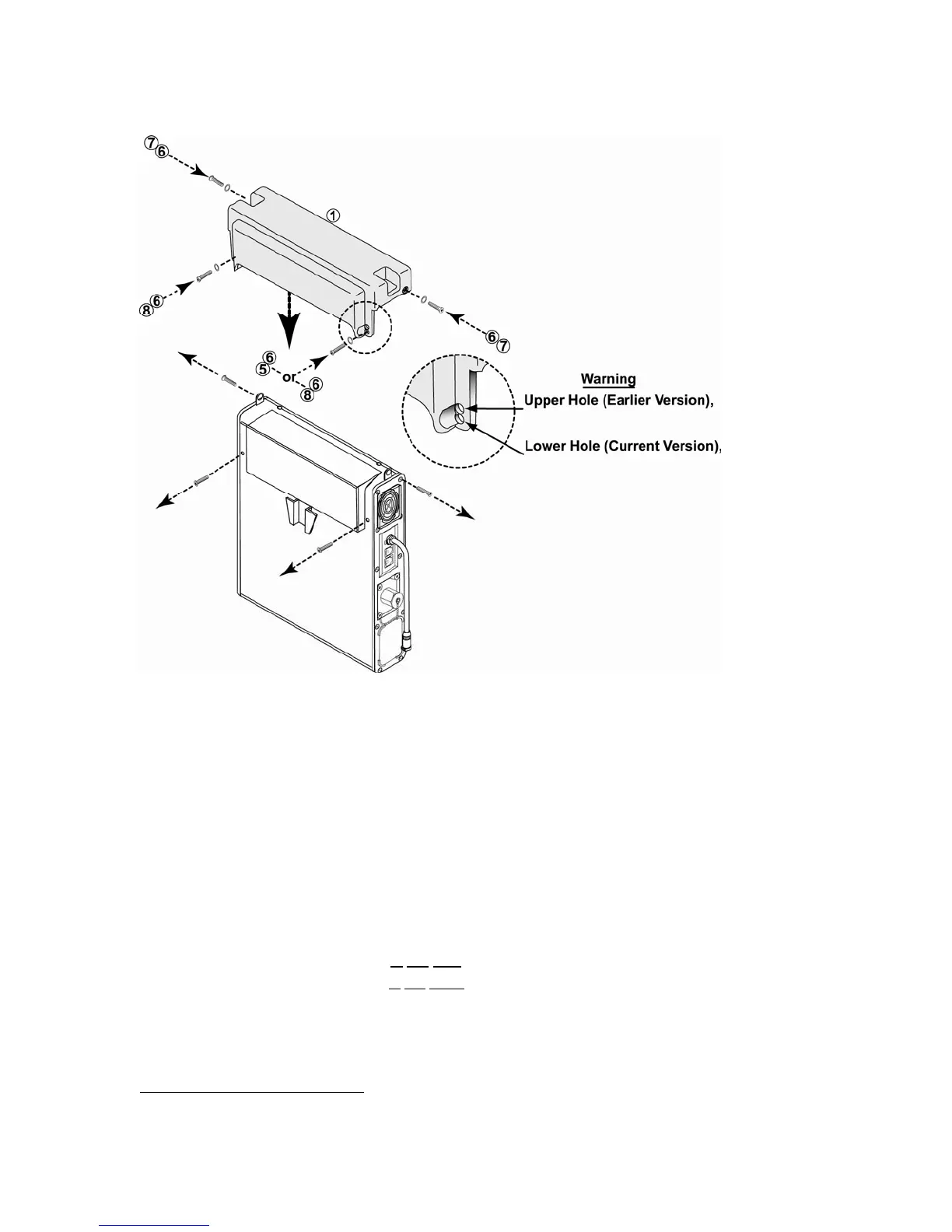

5) Insert and thread two #4-40 X 1/2” flat-head mounting screws i with finish washers h through
the screw holes in the sides of the upper boot, as indicated in the illustration.
6) Torque tighten the mounting screws to these specified values (do not over tighten to avoid
damage to the finish washers).
• Torque tighten the screws in
the legs of the boot to 60 in-oz (0.42 Nm)
• Torque tighten the screws in
the sides of the boot to 20 in-oz (0.14 Nm)
87
Contained in Pulmonetic Systems Replacement Screws kit, P/N 11149.
