8.4 Replace a Cooling Fan and Circulation Fan
336 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual

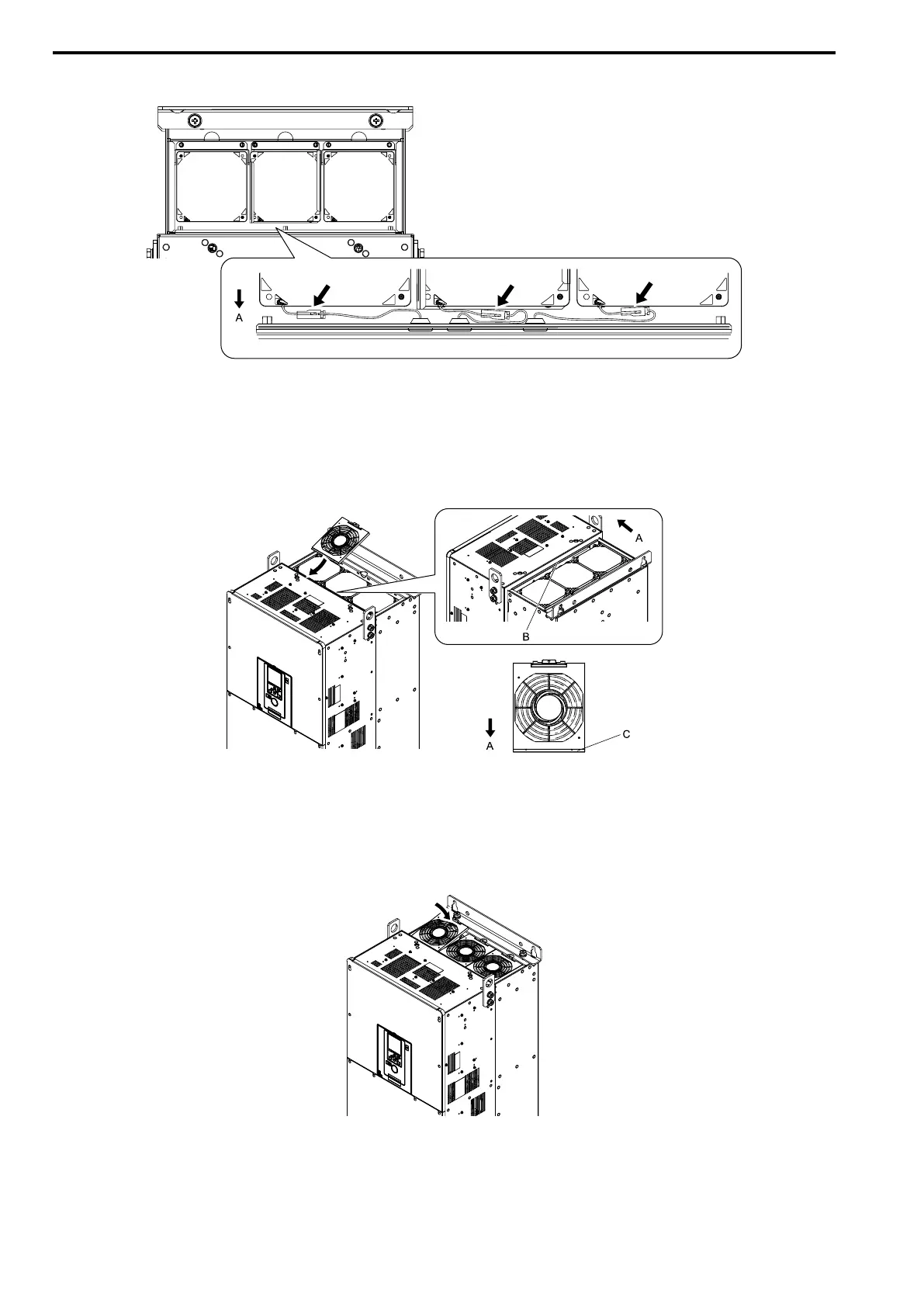

3. Put the cable in the recess of the drive.
A - Front of drive
Figure 8.38 Put the Cable in the Drive Recess
4. Hold the fan finger guard at an angle and put the connector tabs on the fan finger guard into the holes on
the drive.
Note:
When you install the cooling fan, make sure that you do not pinch cables between the fan finger guard and the drive.
A - Front of drive
B - Insertion area
C - Connector tabs
Figure 8.39 Reattach the Fan Finger Guard
5. Push the hook on the back side of the fan finger guard and click it into place on the drive.
Figure 8.40 Reattach the Fan Finger Guard
6. Energize the drive and set o4-03 = 0 [Fan.Oper Setting = 0 h] to reset the cooling fan operation time.
