10.8 Drive Exterior and Mounting Dimensions
390 SIEPYEUOQ2A01G AC Drive Q2A Technical Manual
■ 2138, 4089, 4103

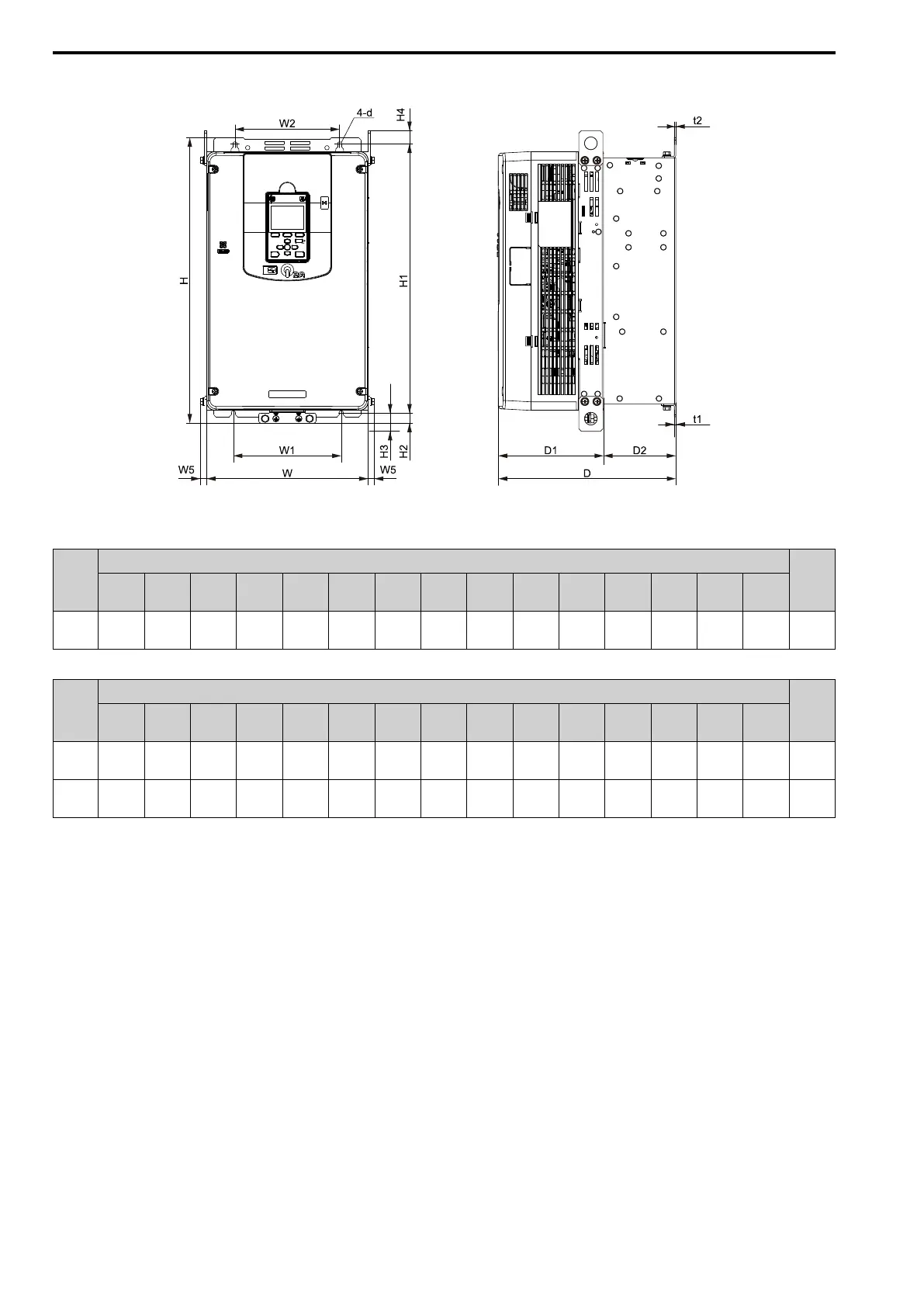

Figure 10.5 Exterior and Mounting Dimensions Diagram for 2138, 4089, 4103
Table 10.33 200 V class (IP20)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2
W5
(max.)
H1 H2 H3 H4 t1 t2 d
2138
255
(10.04)
450
(17.72)
280
(11.02)
166
(6.54)
114
(4.49)
170
(6.69)
165
(6.50)
12
(0.472)
424
(16.69)
16
(0.630)
29
(1.14)
21
(0.827)
2.3
(0.091)
2.3
(0.091)
M6
22
(48.51)
Table 10.34 400 V class (IP20)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2
W5
(max.)
H1 H2 H3 H4 t1 t2 d
4089
255
(10.04)
450
(17.72)
280
(11.02)
166
(6.54)
114
(4.49)
170
(6.69)
165
(6.50)
12
(0.472)
424
(16.69)
16
(0.630)
29
(1.14)
21
(0.827)
2.3
(0.091)
2.3
(0.091)
M6
21
(46.31)
4103
255
(10.04)
450
(17.72)
280
(11.02)
166
(6.54)
114
(4.49)
170
(6.69)
165
(6.50)
12
(0.472)
424
(16.69)
16
(0.630)
29
(1.14)
21
(0.827)
2.3
(0.091)
2.3
(0.091)
M6
25
(55.13)
