RadioLink RC8X User Manual

RadioLink Electronic Limited
www.radiolink.com
15
4

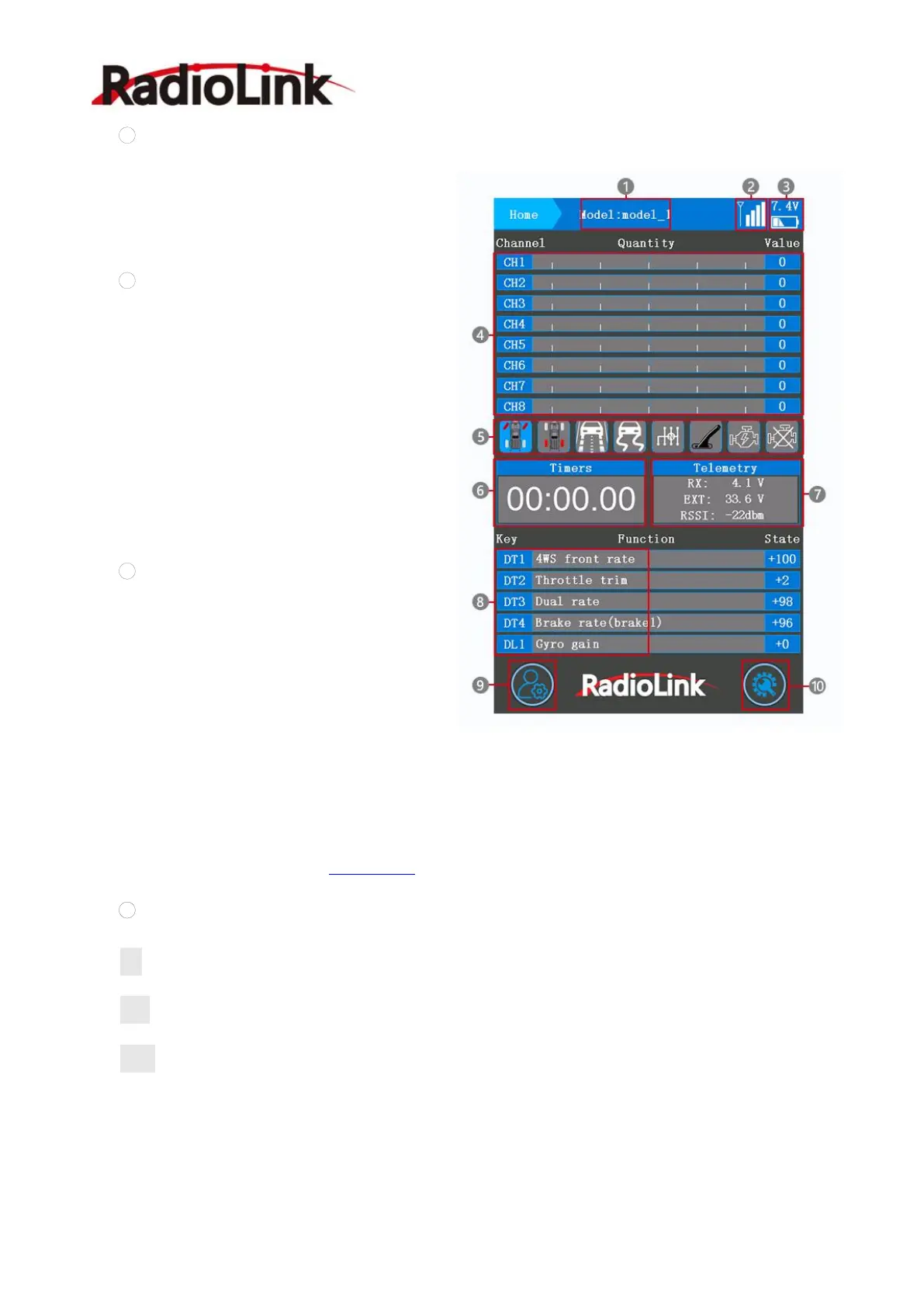

Servo operation from CH1 to CH8. Real-time bar-graph display to demonstrate exactly
what commands the transmitter is sending to
the servos.
5
Mixing function. The background
color of functional block will turn to blue if
the mixing function corresponding turn on
while the background color of functional
block will turn to grey if the mixing function
corresponding turn off.
6
T1：Total timer. It is used to record the
total uptime of the transmitter. Turn off the
transmitter will not affect time accumulation.
T2：Click to time. Click the T2 timer
functional block to start to time, stop to time or reset. Click once to start to time, click twice to
stop to time, click thrice to reset.
The timer set steps can follow: 2.3.4 Timer
7
Telemetry.
RX：the current input voltage of receiver.
EXT：the current input voltage of cars or boat.
RSSI：the receiver signal strength, “NULL” indicate loss of signal or the transmitter and the
receiver failed to bind. The RSSI is 0 to 30dBm is normal when the transmitter is apart
about 50 centimeters from the receiver, the signal is better the RSSI data is closer to 0. The

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
