RadioLink RC8X User Manual

RadioLink Electronic Limited
www.radiolink.com
86

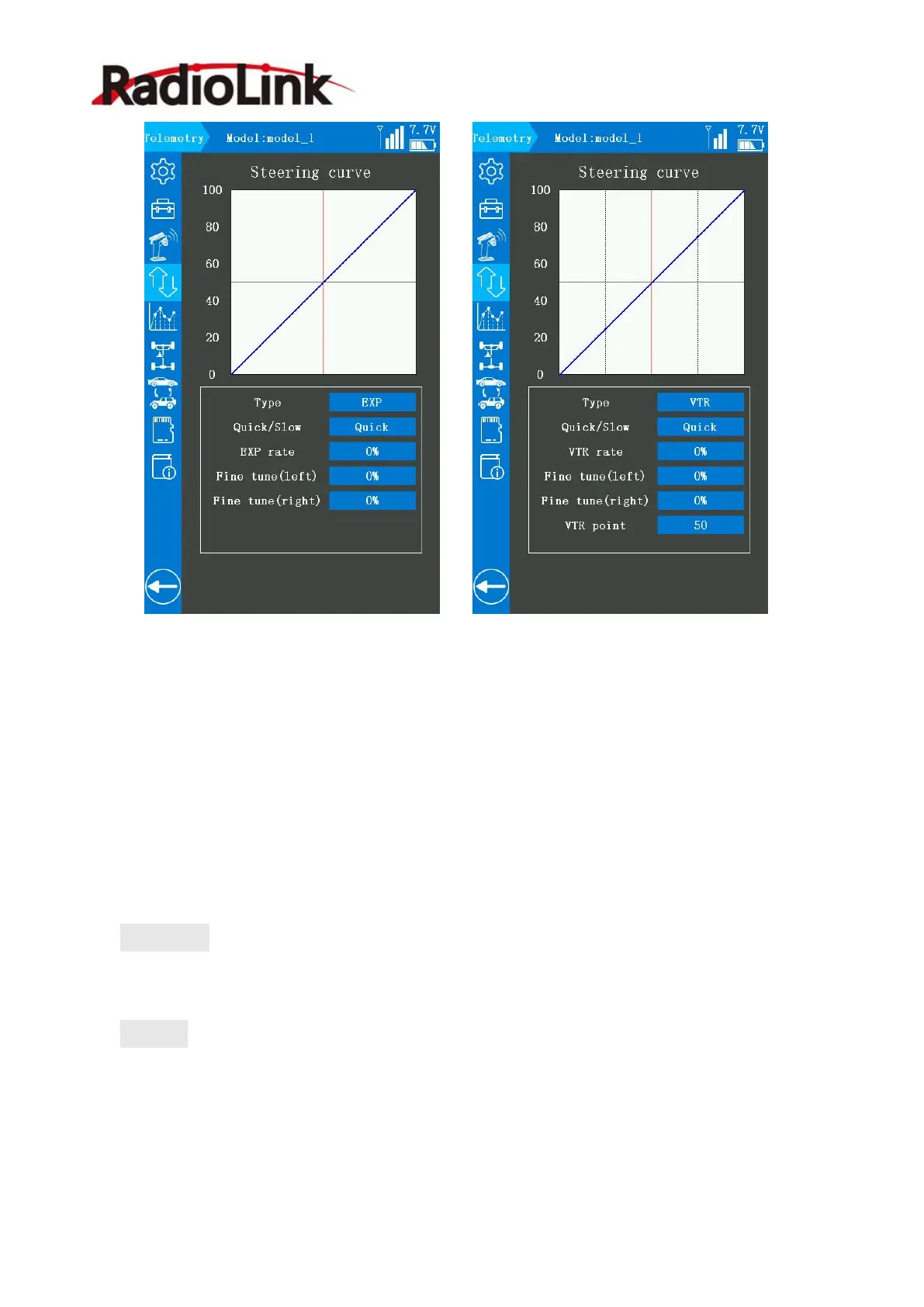

EXP curve: It is used to adjust the sensitivity of the direction wheel both in a neutral position
and ends.
Taking the center line of the EXP as the demarcation point, if set the steering curve type as
Quick EXP curve and the EXP rate is 100%, the steering acceleration is completed in the front
80% of the rudder amount range, thus achieving the effect that the first half of the rudder
amount changes faster than the second half. The slow EXP curve is the opposite.
Quick/Slow: +100 indicates the quick EXP rate, and -100 indicates the slow EXP rate.
The vertical cursor line moves in conjunction with the operation of the steering wheel.
EXP rate: the initial value of EXP rate is 0%, -100% to +100% can be selected. With the
change of this value, the sensitivity of left and right steering is adjusted in the same ratio.

RadioLink RC8X Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Spreading Spectrum	DSSS
Antenna Type	Dual Antenna
Output Signal	PWM, PPM, SBUS
Low Voltage Alert	Yes
Simulator	Yes
Battery Type	LiPo
Voice Alerts	Yes
Display	3.5 inch color screen, 320*480 resolution
Frequency Band	2.4GHz
Operating Voltage	3.5-4.2V
Channel Resolution	4096
Model Type	Helicopter, Airplane, Glider, Multirotor
Compatible Receivers	R8EF, R6FG, R4FGM, R4F
Battery	3.7V 3000mAh LiPo
