Remote control commands
R&S
®
NRPxxS(N)
115User Manual 1177.5079.02 ─ 15
Sensor ← Menu bar
Provides options for loading and saving calibration data directly from or to the sensor,
see:
●
"To load a calibration data set from a power sensor" on page 117
●
"To save the calibration data to the sensor" on page 121
Device ← Menu bar
Provides functions for editing the table of S-parameter devices.
Options ← Menu bar
Provides functions for editing user data, changing remote control timeouts, and dis-
playing calibration data as plain text.

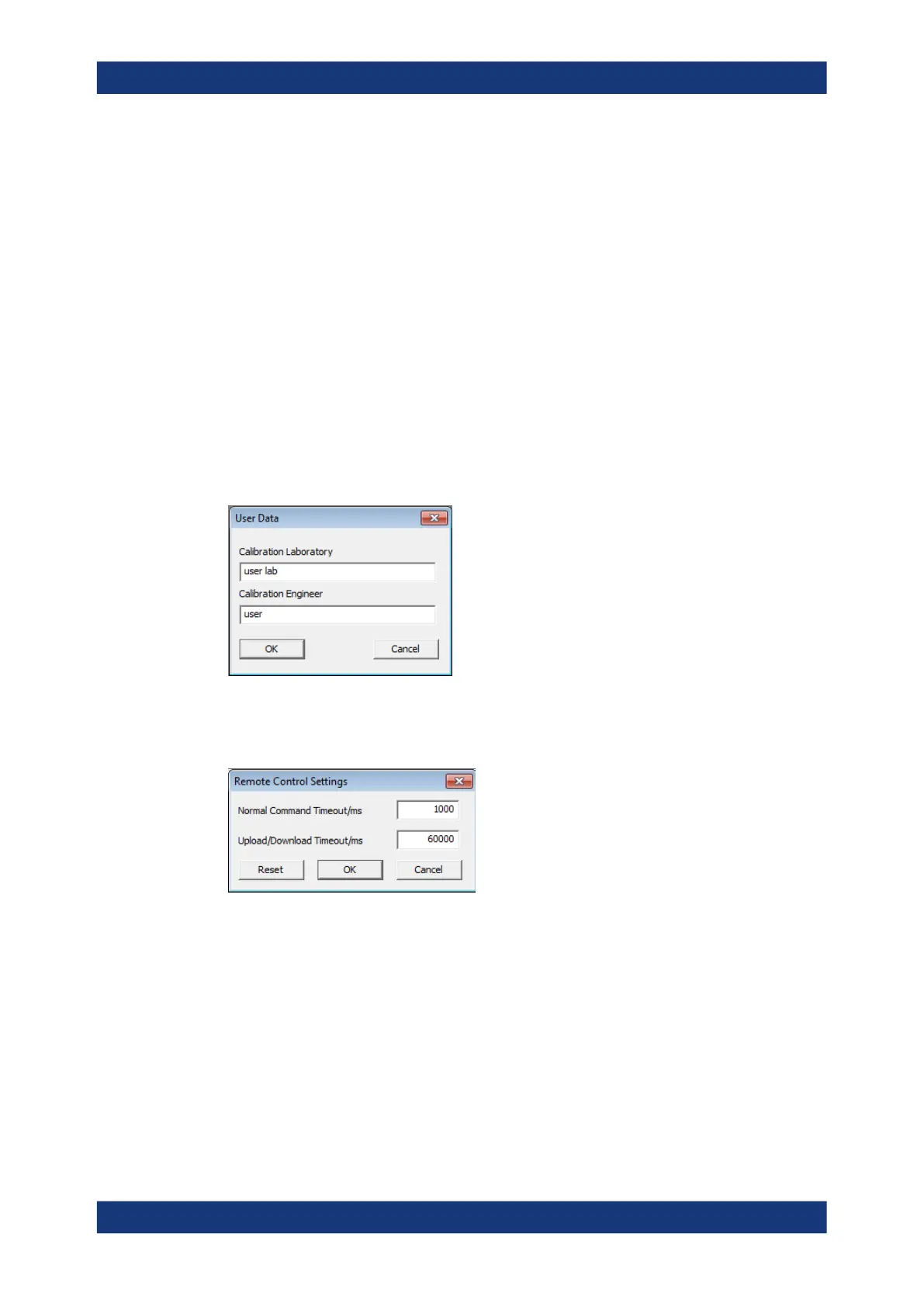

User Data ← Options ← Menu bar
Opens the "User Data" dialog.
Here, you can enter the name of the calibration laboratory and the calibration engineer
that is stored in the calibration data set if changes are made.
Remote ← Options ← Menu bar
Opens the "Remote Control Settings" dialog. It is normally not necessary to change
timeouts.
Show Cal. Data ← Options ← Menu bar
Displays the content of the calibration data set that has been loaded either from a file
of directly from a sensor as a plain text.
You can copy the text output to the clipboard by clicking "Copy to Clipboard."
Configuring basic measurement parameters
