Remote control commands

R&S

NRPxxS(N)

96User Manual 1177.5079.02 ─ 15

[SENSe<Sensor>:][POWer:]BURSt:LENGth?

Queries the length of a burst (pulse interval), the time between the trigger point of the

measurement and the time the trigger logic detects the end of the pulse. See Fig-

ure 9-2.

Usage: Query only

9.7.3 Timeslot measurement

The timeslot mode is used to measure the average power of a definable number of

successive timeslots within a frame structure with equal spacing. The measurement

result is an array with the same number of elements as timeslots. Each element repre-

sents the average power in a particular timeslot.

Trigger level

Power

Trigger event

Timeslot 1 Timeslot 2 Timeslot 3

Timeslot width

Time

Start of fence

Length of fence

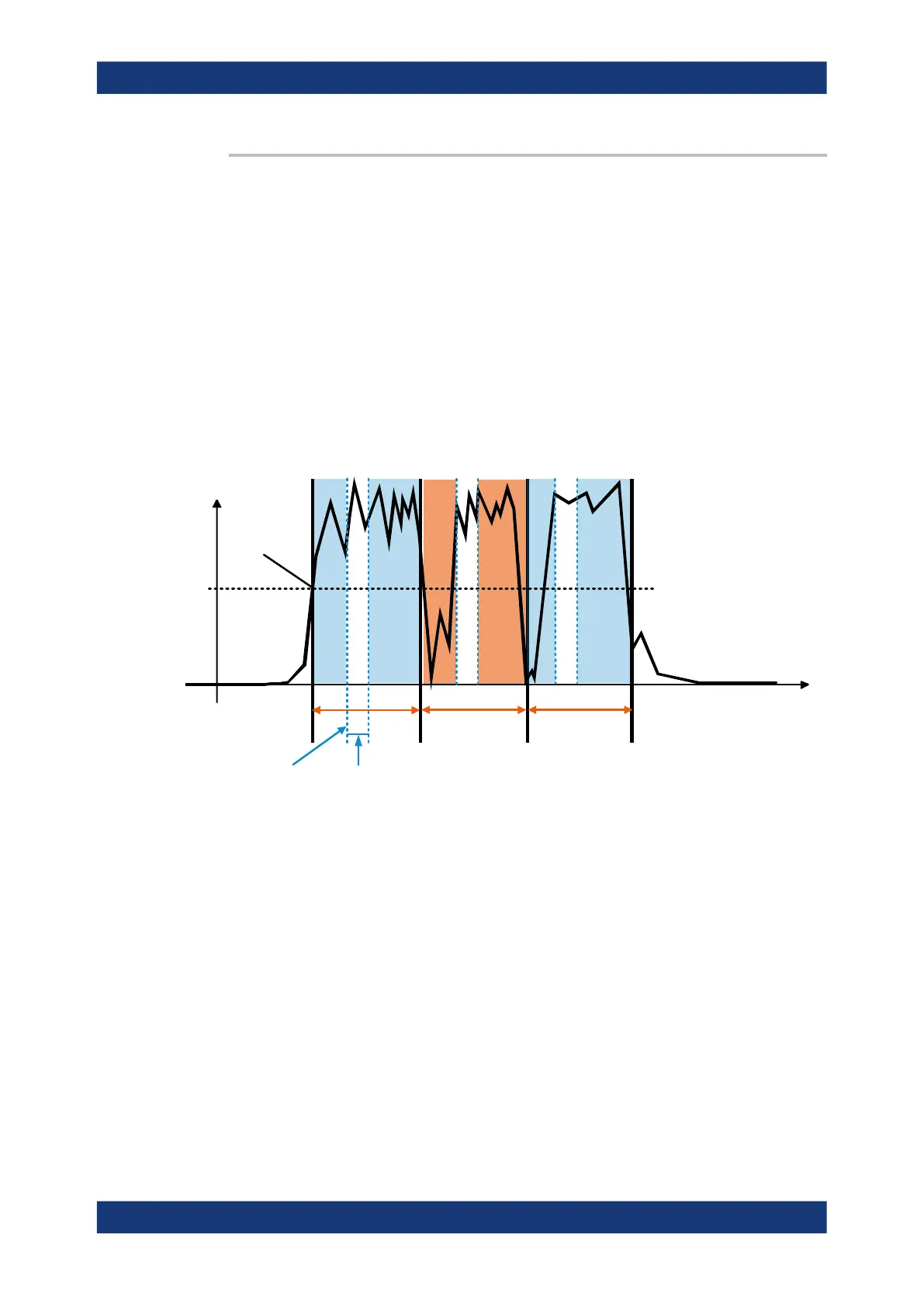

Figure 9-3: Timeslot parameters

Triggering a timeslot measurement

In timeslot mode, internal and external trigger events from the signal are evaluated

depending on the settings of the TRIGger:SOURce parameter. It is essential to define

the TRIGger:DELay parameter to ensure that the beginning of the first slot to be mea-

sured coincides with the delayed trigger point.

Defining a time interval for the measurement

At the beginning and at the end of the measurement interval, you can define time inter-

vals that are excluded from the measurement, see Chapter 9.8.3, "Excluding intervals",

on page 107.

Remote commands:

Configuring the measurement modes
