Browser-based user interface

R&S

NRPxxS(N)

42User Manual 1177.5079.02 ─ 15

6 Browser-based user interface

The web user interface is an alternative way to operate an R&S NRPxxSN LAN power

sensor.

This chapter provides a description of the parameters used for setting a power mea-

surement with the web user interface.

For a detailed description of how to connect the sensor to a device and start the web

user interface, refer to Chapter 5.2, "Browser-based user interface", on page 34.

6.1 Main dialog of the web user interface

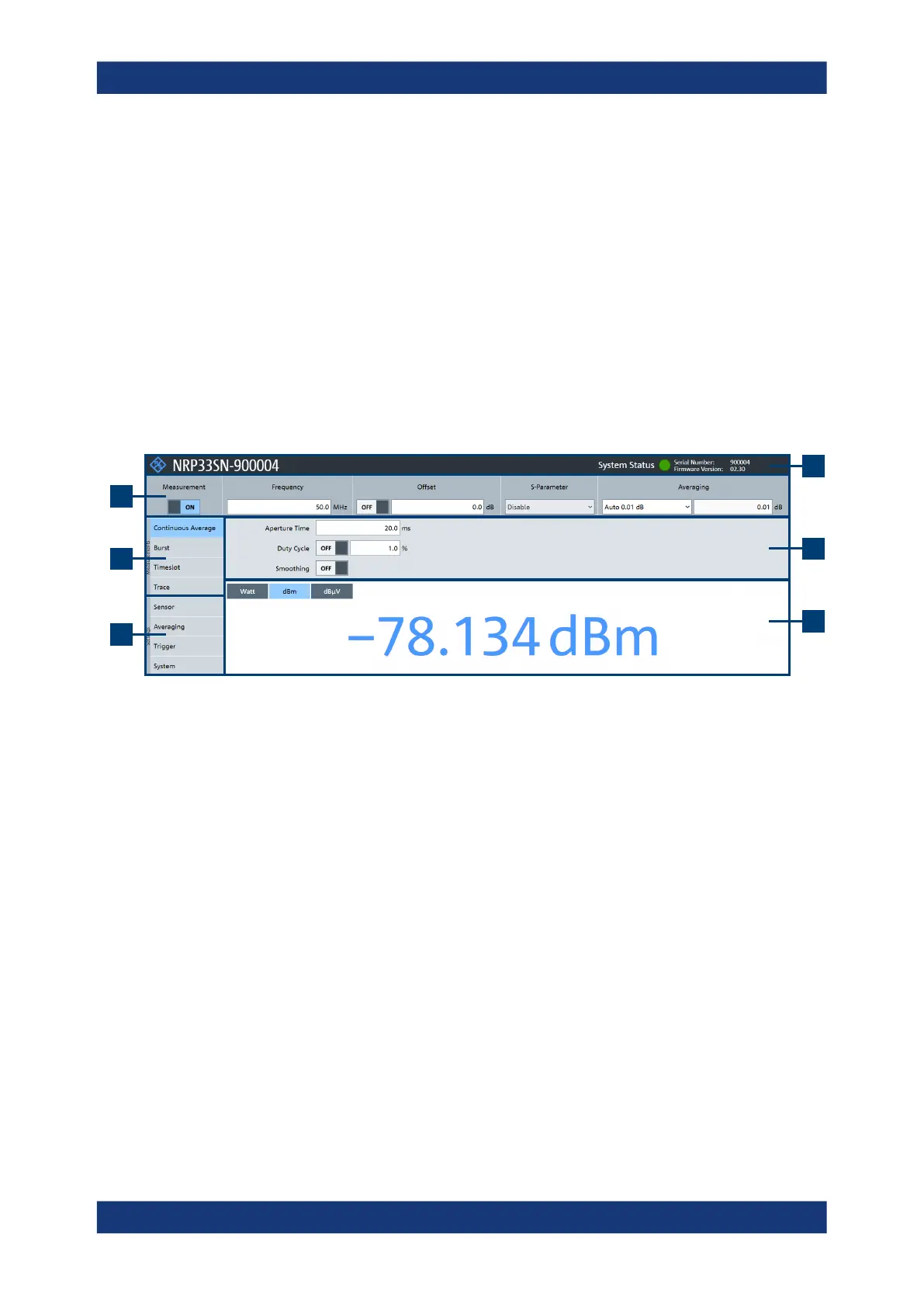

Figure 6-1: Explanation of the web user interface

1 = Navigation pane - "Settings", see Chapter 6.5, "Settings", on page 49

2 = Navigation pane - "Measurements", see Chapter 6.4, "Measurement modes", on page 45

3 = Common settings, see Chapter 6.3, "Common settings", on page 44

4 = Title bar

5 = Parameter pane

6 = Result pane

Title bar

Shows the following information:

●

Hostname.

See also Chapter 3.7.3.3, "Using hostnames", on page 24.

●

System status

Confirms that there is a connection between the sensor and the remote computer

and that the sensor is recognized by the software. The presentation of this sym-

bolic LED mirrors the physical LED of the sensor. See Chapter 4.2, "Status infor-

mation", on page 28.

Parameter pane

Displays the content selected in the navigation pane.

Main dialog of the web user interface
