Auto Measurement Time
Available only if "Noise Content" is set under "<Mode>" on page 45.
Sets an upper limit for the settling time of the auto-averaging filter, thus limiting the
length of the filter.
Remote command:
[SENSe<Sensor>:]AVERage:COUNt:AUTO:MTIMe
6.5.3 Trigger settings

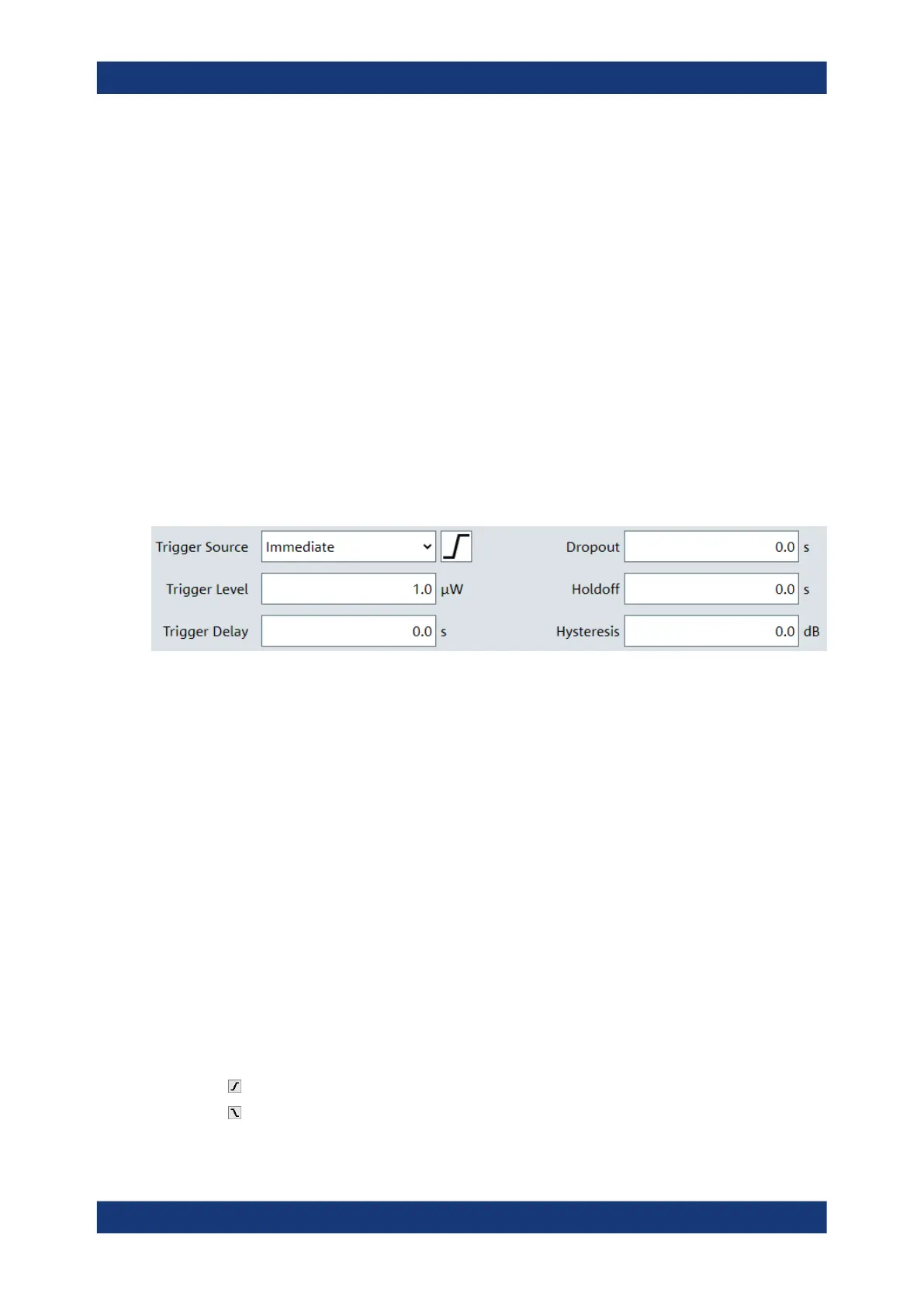

Describes the trigger parameters. You can define the conditions that have to be fulfilled
for a measurement to be triggered.
Further information:
●
Chapter 9.5.5, "Configuring the trigger", on page 83
●
Chapter 9.5, "Controlling the measurement", on page 73
Access: main dialog of the web user interface > navigation pane > "Trigger"
Trigger Source...............................................................................................................52
└ <Source>........................................................................................................ 52
└ <Slope>...........................................................................................................52
Trigger Level................................................................................................................. 53
Trigger Delay.................................................................................................................53
Dropout......................................................................................................................... 53
Holdoff...........................................................................................................................53
Hysteresis..................................................................................................................... 53
Trigger Source
Groups the trigger source settings.
<Source> ← Trigger Source
Selects the trigger source. See Chapter 9.5.2.3, "Trigger sources", on page 76.
Remote command:
TRIGger:SOURce
<Slope> ← Trigger Source
Sets the polarity of the active slope of the trigger signal that is externally or internally
applied.
"Positive"
The rising edge of the trigger signal is used for triggering.
"Negative"
The falling edge of the trigger signal is used for triggering.
