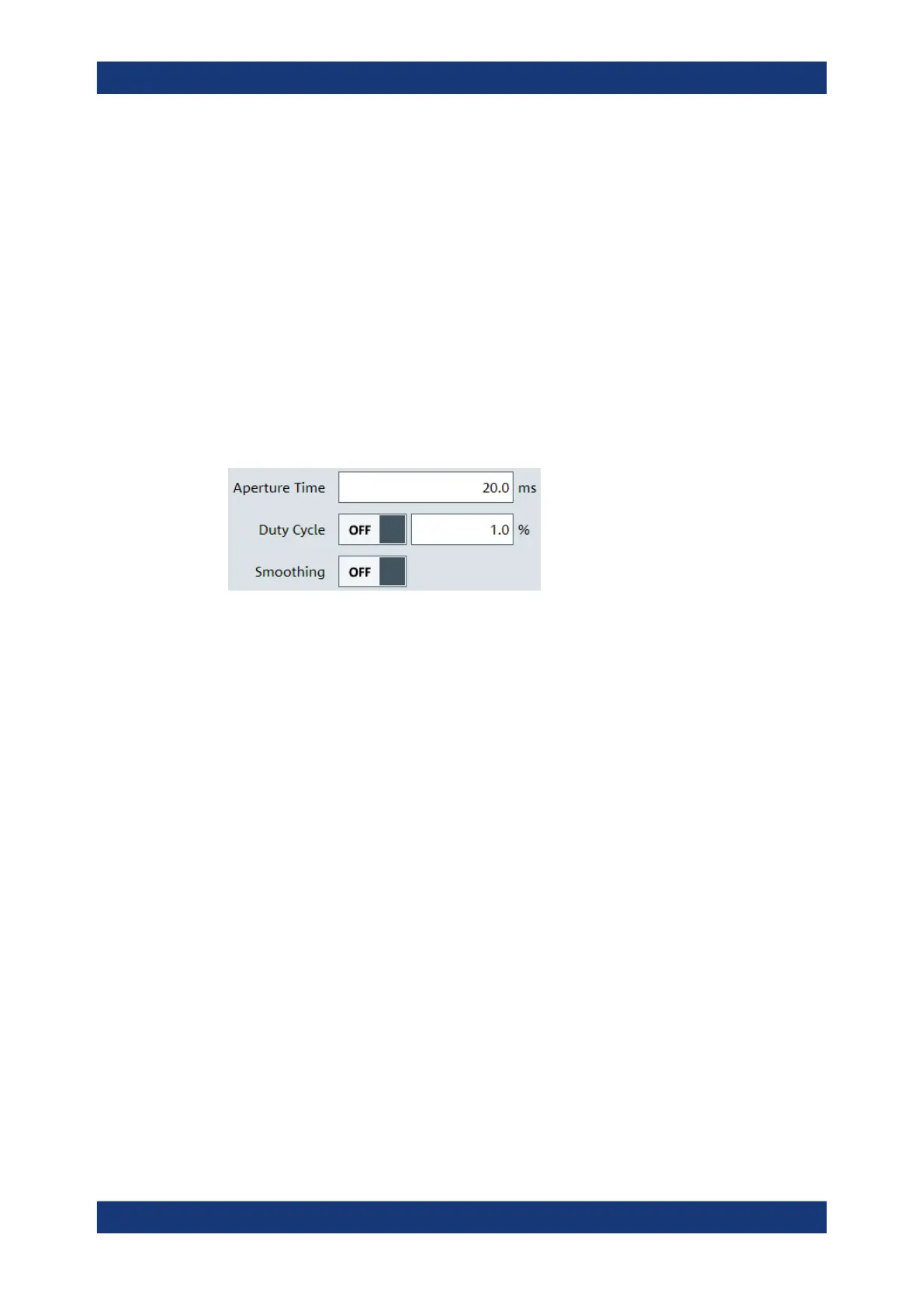

6.4.1 Continuous average mode
Describes the parameters of the continuous average measurement.
Further information:
●
Chapter 9.7.1, "Continuous average measurement", on page 91
Detailed description of the continuous average mode and its remote commands
Access: main dialog of the web user interface > navigation pane > "Continuous Aver-
age"
Aperture Time................................................................................................................46
Duty Cycle.....................................................................................................................46
Smoothing.....................................................................................................................46
Aperture Time
Sets the aperture time, the width of the sampling windows.
Remote command:
[SENSe<Sensor>:][POWer:][AVG:]APERture on page 92
Duty Cycle
Sets the duty cycle, the percentage of one period during which the signal is active, for
pulse modulated signals. If the duty cycle is set, the sensor calculates the signal pulse
power from its value and the average power.
Remote command:
[SENSe<Sensor>:]CORRection:DCYCle:STATe
[SENSe<Sensor>:]CORRection:DCYCle
Smoothing
Enables the smoothing filter, a steep-cut off digital lowpass filter. The filter reduces
result fluctuations caused by modulation.
Remote command:
[SENSe<Sensor>:][POWer:][AVG:]SMOothing:STATe
