Browser-based user interface
R&S
®
NRPxxS(N)
47User Manual 1177.5079.02 ─ 15
6.4.2 Burst average mode
Describes the parameters of the burst average measurement.
Further information:
●
Chapter 9.7.2, "Burst average measurement", on page 94
Detailed description of the burst average mode and its remote commands

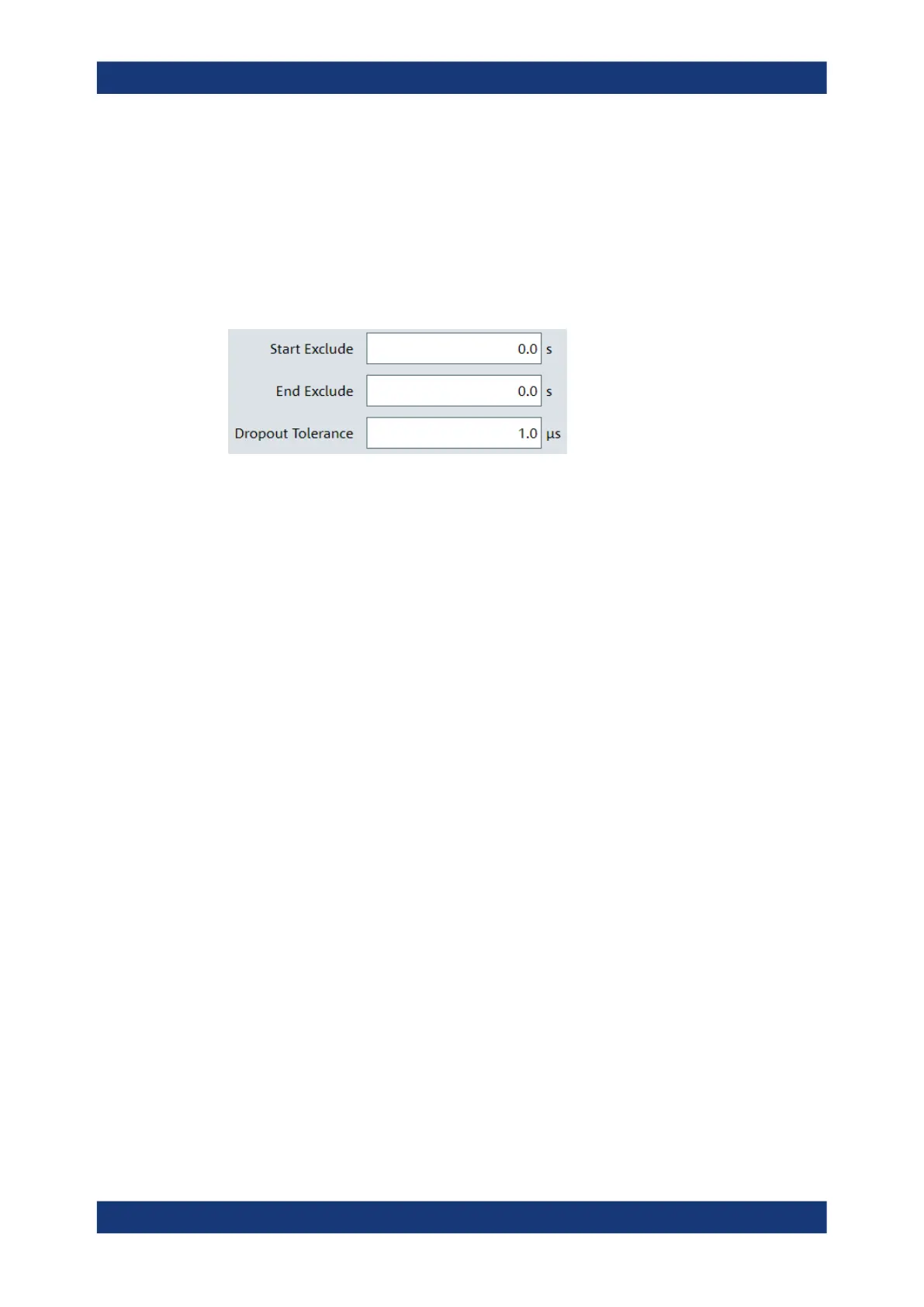

Access: main dialog of the web user interface > navigation pane > "Burst"
Start Exclude.................................................................................................................47
End Exclude..................................................................................................................47
Dropout Tolerance.........................................................................................................47
Start Exclude
Sets a time that is to be excluded at the beginning of the measurement period.
Remote command:
[SENSe<Sensor>:]TIMing:EXCLude:STARt
End Exclude
Sets a time that is to be excluded at the end of the measurement period.
Remote command:
[SENSe<Sensor>:]TIMing:EXCLude:STOP
Dropout Tolerance
Sets the dropout time. The dropout time is a time interval in which the pulse end is only
recognized if the signal level no longer exceeds the trigger level.
Remote command:
[SENSe<Sensor>:][POWer:]BURSt:DTOLerance
6.4.3 Timeslot mode
Describes the parameters of the timeslot measurement.
Further information:
●
Chapter 9.7.3, "Timeslot measurement", on page 96
Detailed description of the timeslot mode and its remote commands
Access: main dialog of the web user interface > navigation pane > "Timeslot"
Measurement modes
