Power
Time
Trigger level
Dropout time
Dropout tolerance
Pulse interval

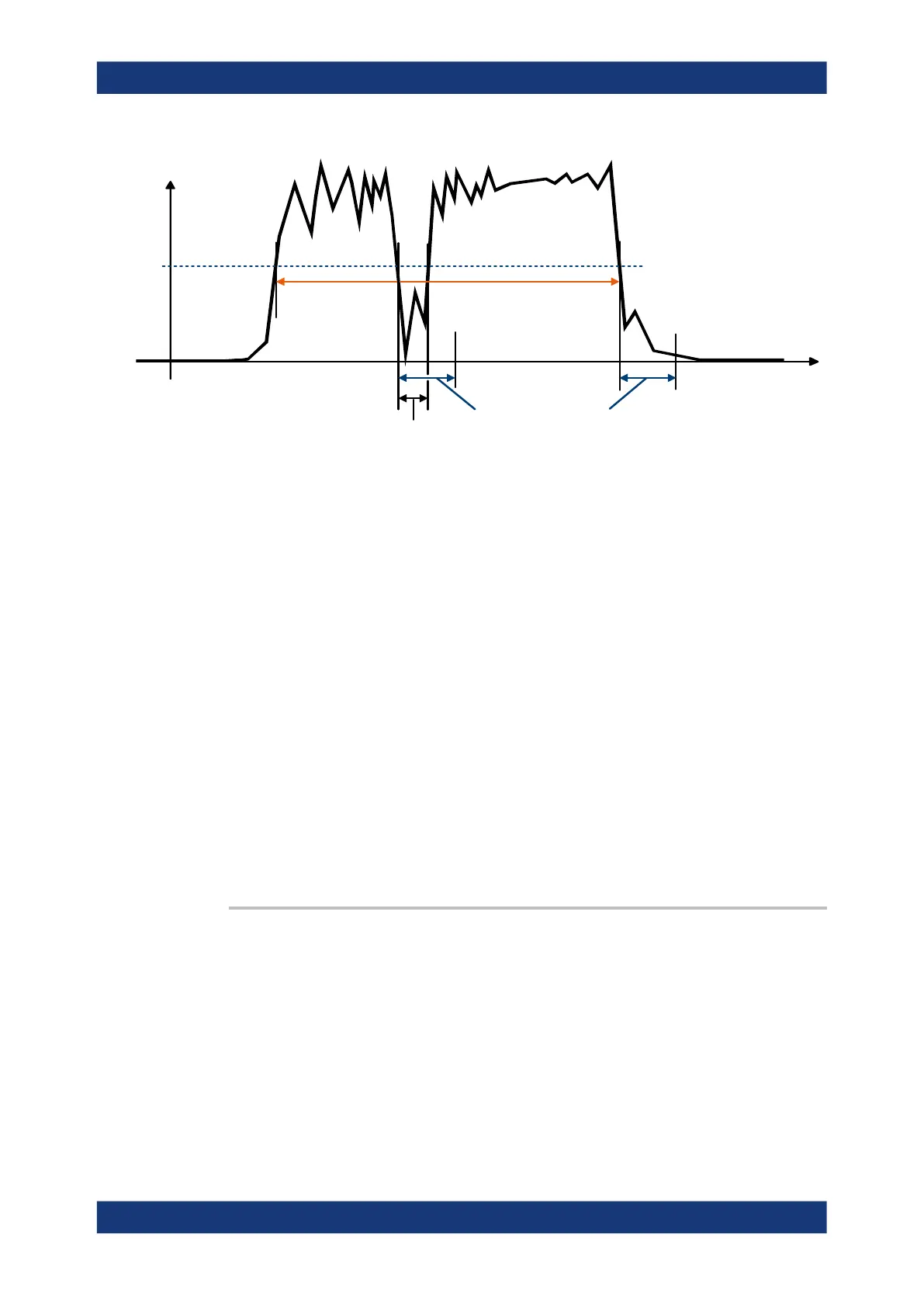

Figure 9-2: Burst average parameters
To prevent power drops due to modulation from being erroneously interpreted as the
end of a pulse, you must define the dropout tolerance. The dropout tolerance is a time
interval in which the pulse end is only recognized if the signal level no longer exceeds
the trigger level.
Triggering a burst average measurement
In burst average mode, only internal trigger events from the signal are evaluated, irre-
spective of the setting of the TRIGger:SOURce parameter. The TRIGger:DELay
parameter is also ignored, so that the measurement interval begins exactly when the
signal exceeds the trigger level.
Defining a time interval for the measurement
At the beginning and at the end of the measurement interval, you can define time inter-
vals that are excluded from the measurement, see Chapter 9.8.3, "Excluding intervals",
on page 107.
Remote commands:
[SENSe<Sensor>:][POWer:]BURSt:DTOLerance................................................................ 95
[SENSe<Sensor>:][POWer:]BURSt:LENGth?..................................................................... 96
[SENSe<Sensor>:][POWer:]BURSt:DTOLerance <tolerance>
Sets the drop-out tolerance, a time interval in which the pulse end is only recognized if
the signal level no longer exceeds the trigger level. See Figure 9-2.
Parameters:
<tolerance> Range: 0.00 to 0.30
*RST: 1.000e-6
Default unit: Seconds
Manual operation: See "Dropout Tolerance" on page 47
