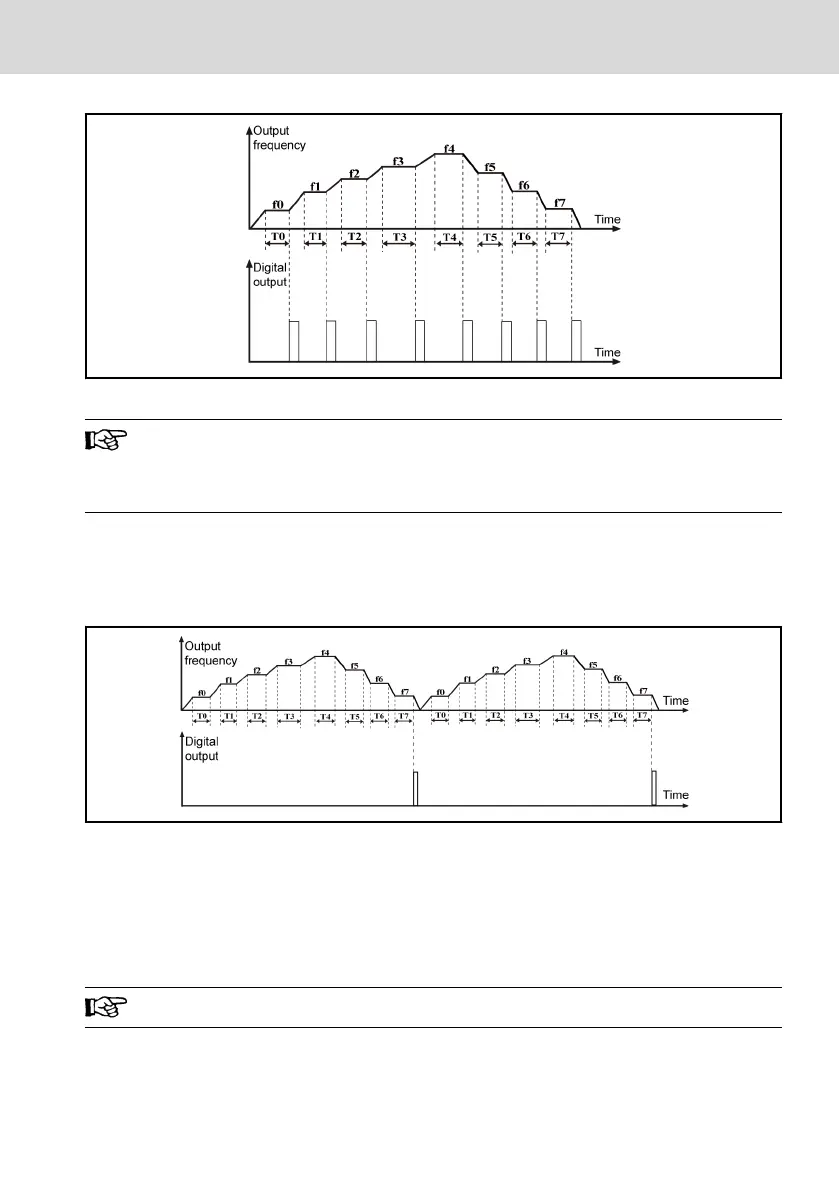

Fig. 8-37: Simple PLC phase completion indication
If the running time of one of the stages is so short that it finishes be-
fore the “phase completion” signal of the previous stage is deactiva-
ted, the signal remains active and the pulse duration calculation is
restarted.
● 8: Simple PLC cycle completion indication
When PLC mode [E2.30]=1, 2 or 3, this terminal outputs a pulse (duration
0.5s) at the end of every cycle. See parameters E2.10 ~ E2.16 and E2.30 ~
E2.50.
Fig. 8-38: [E2.30]=1, 2 or 3
● 9: Reserved
● 10: Under voltage indication
Active when DC bus voltage is lower than 230 VDC (200 V models) / 430 V
(400 V models). It will be deactivated when DC bus voltage recovers and be-
comes stable.
Any soft start error will activate this digital output.
● 11: Frequency converter overload pre-warning
See parameters E1.09 and E1.11.
● 12: Motor overload pre-warning
