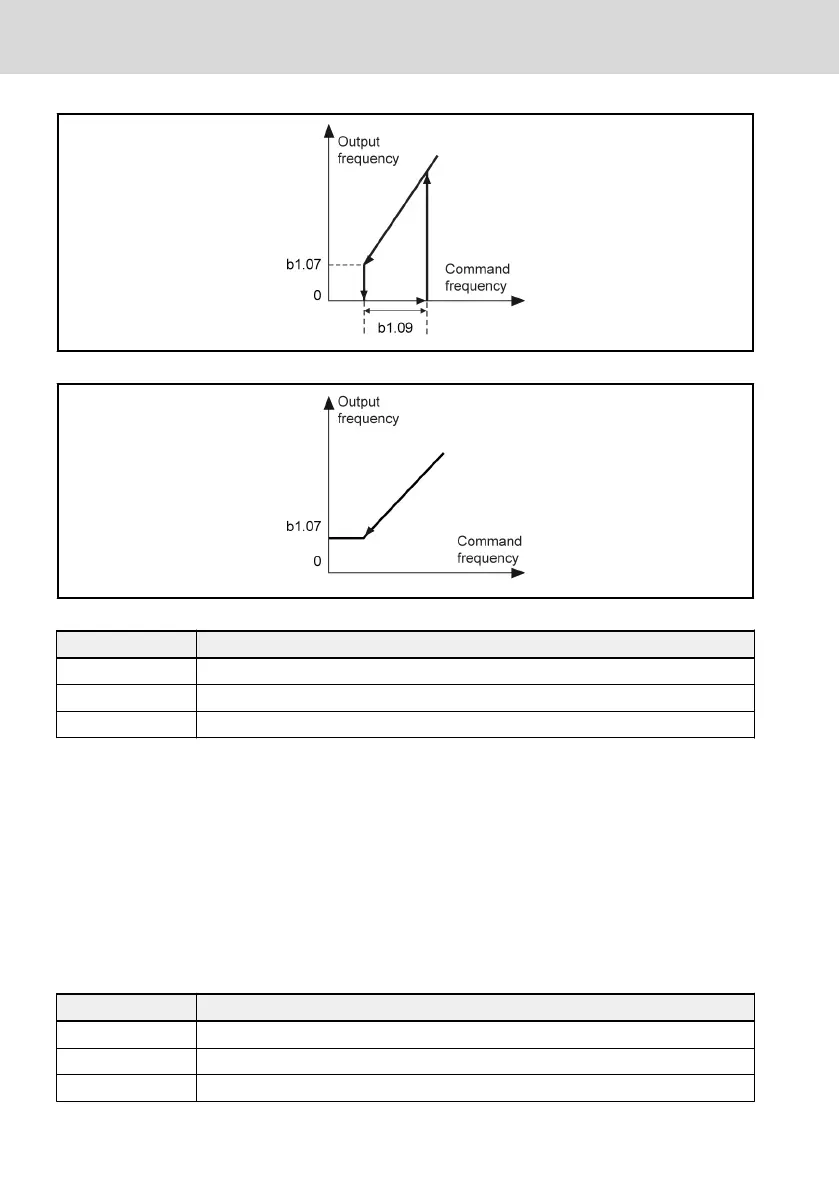

Fig. 8-1: [b1.08]=0
Fig. 8-2: [b1.08]=1
b1.10 Direction control
Setting range 0 ~ 3
Minimum unit 1
Factory default 0
Used for general settings of direction control. It accepts all the direction control
source (operating panel, communication and external terminal).
● 0: Both directions
● 1: Forward only. When reverse rotation command is active, the frequency
converter will stop immediately and the error(s) shows up (dir1/dir2).
● 2: Reverse only. When forward rotation command is active, the frequency
converter will stop immediately and the error(s) shows up (dir1/dir2).
● 3: Inverse default direction.
An adjustable dead zone time between forward and reverse can be set, please
refer to S3.30.
b1.11
Operating panel controls direction
Setting range 0 ~ 1
Minimum unit 1
Factory default 0
