This parameter is only applicable for operations by the operating panel.
● 0: Forward rotation
● 1: Reverse rotation

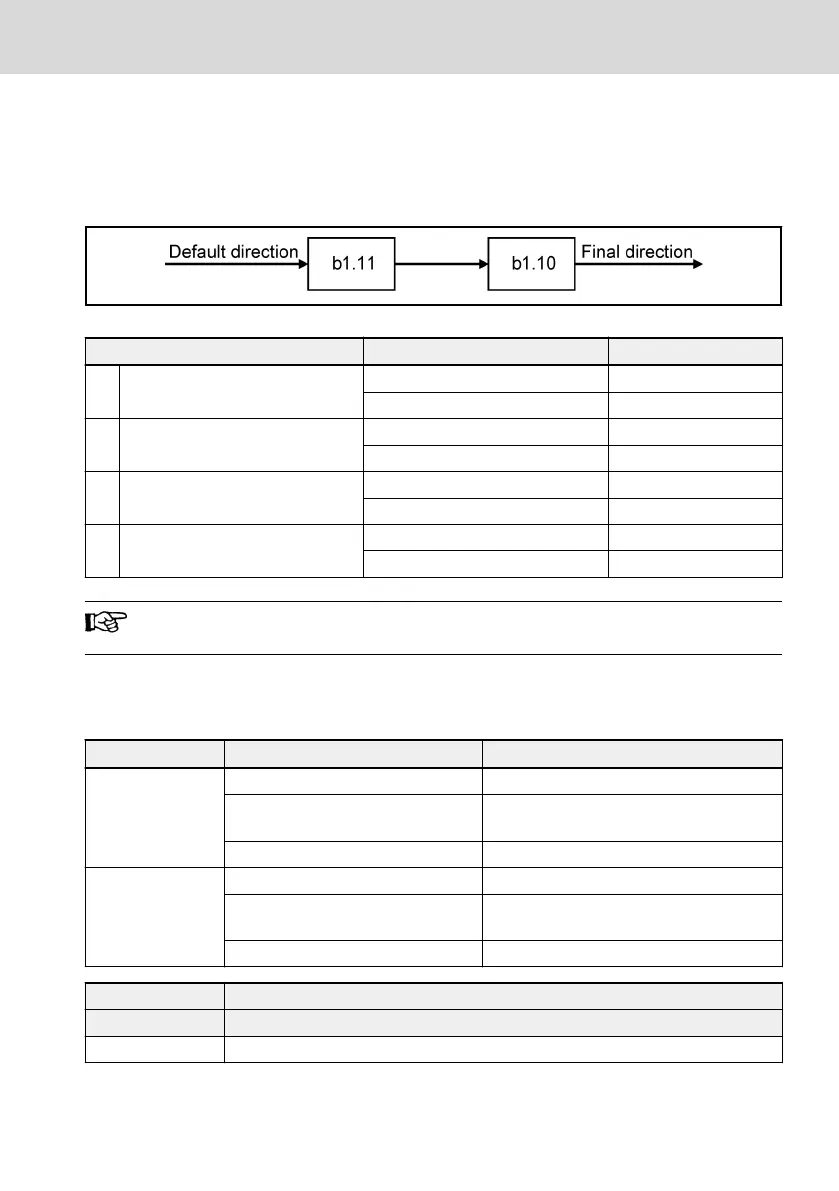

The relationship between [b1.10] and [b1.11] is:
Fig. 8-3: Relationship between [b1.10] and [b1.11]
Direction control [b1.10] Default direction [b1.11] Final direction
0 Both directions
Forward Forward
Reverse Reverse
1 Forward only
Forward Forward
Reverse STOP with error
2 Reverse only
Forward STOP with error
Reverse Reverse
3 Inverse default direction
Forward Reverse
Reverse Forward
For "STOP with error", please see chapter 9.5 "Diagnosis on Errors"
on page 126.
Normally, each RUN / STOP command source has its own direction command
source. The generated direction is further controlled by internal direction con-
trol (b1.10).
Frequency source
RUN / STOP command source Direction command source
Multi-speed
Operating panel Defined by multi-speed/PLC configuration
2-wire / 3-wire running control
E0.00
2-wire / 3-wire running control E0.00
Communication Communication
Other setting sour-
ces in b1.00 and
b1.16
Panel Defined by b1.11
2-wire / 3-wire running control
E0.00
2-wire / 3-wire running control E0.00
Communication Communication
b1.12~b1.14 Reserved
b1.15 Combination frequency command source
Setting range 0 ~ 2
EFC 3600 Bosch Rexroth AG
Parameter Settings
DOK-RCON03-EFC-3600***-IT03-EN-P
57/259
