● a stop command is active, and
● [b1.40] = 0, and
● output frequency ≤ [b1.41], and
● digital input “Stopping DC-braking enabled” is active, or [b1.42] > 0.
When [b1.42] > 0 and digital input “Stopping DC-braking enabled”
(Xn terminal is set as 13) is active, the frequency converter will keep
on DC-braking before the digital input goes inactive, even if the time
[b1.42] is elapsed.

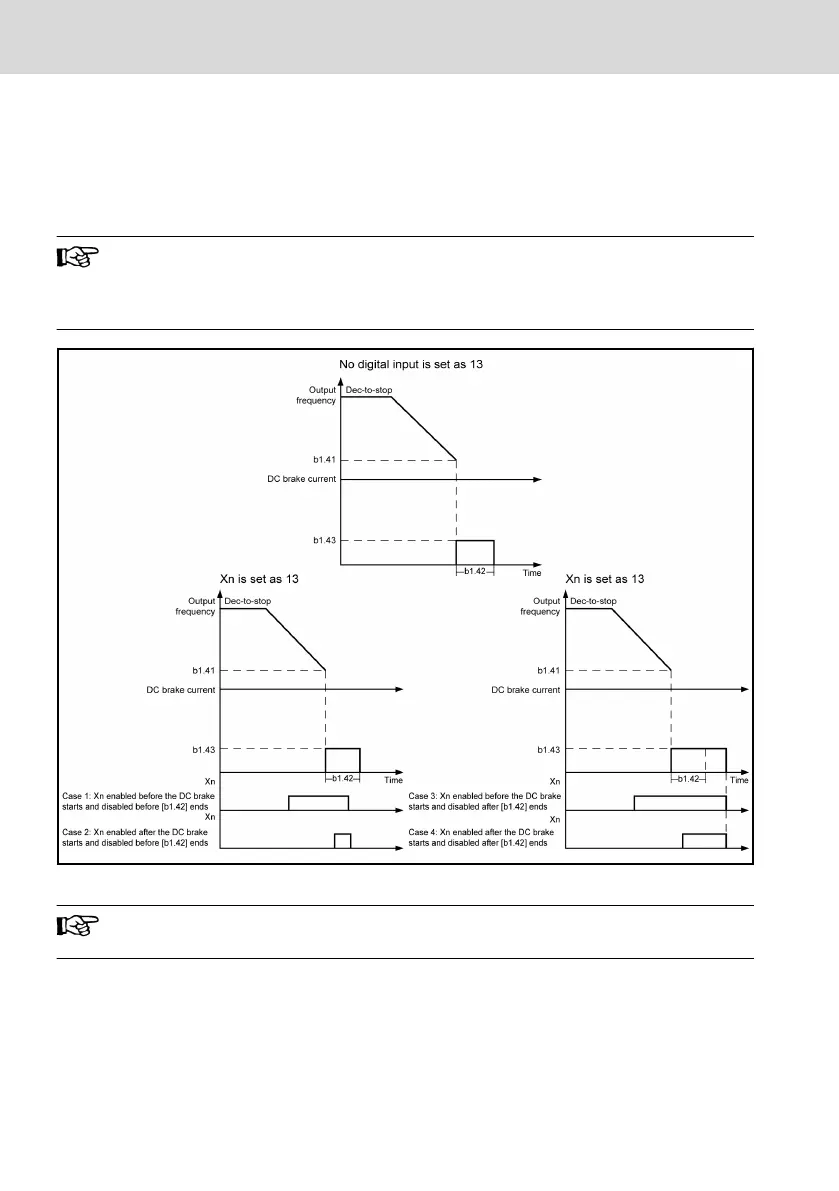

Fig. 8-11: Stopping DC braking
For the actual stopping DC braking current calculation, see descrip-
tions in parameter b1.30.
