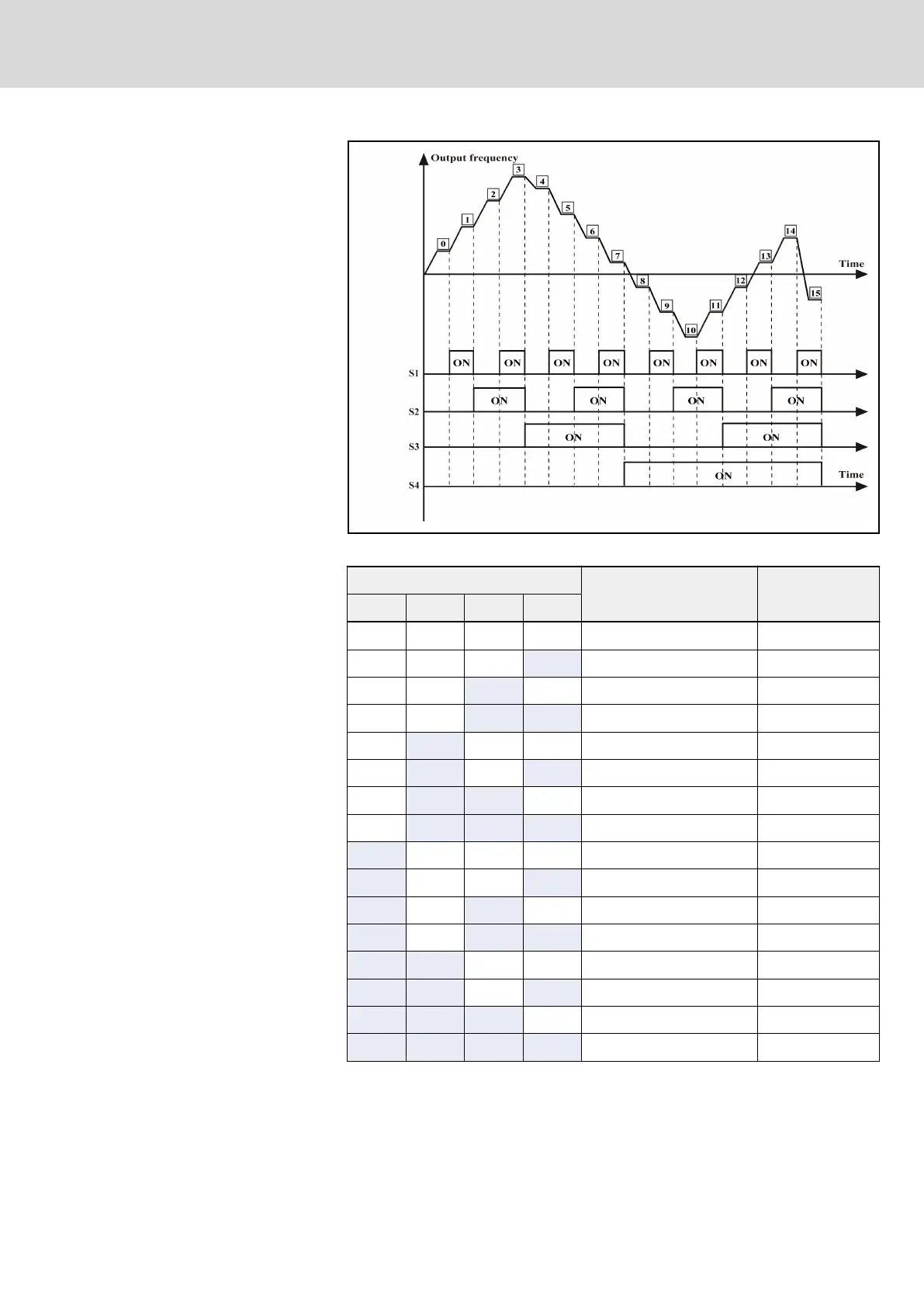

Fig. 7-32: Multi-speed control process
Combination of digital inputs
Selected frequency
Corresponding
parameter
S4 S3 S2 S1
OFF OFF OFF OFF Multi-speed frequency 0 b1.00
OFF OFF OFF ON Multi-speed frequency 1 E2.06
OFF OFF ON OFF Multi-speed frequency 2 E2.07
OFF OFF ON ON Multi-speed frequency 3 E2.08
OFF ON OFF OFF Multi-speed frequency 4 E2.09
OFF ON OFF ON Multi-speed frequency 5 E2.10
OFF ON ON OFF Multi-speed frequency 6 E2.11
OFF ON ON ON Multi-speed frequency 7 E2.12
ON OFF OFF OFF Multi-speed frequency 8 E2.13
ON OFF OFF ON Multi-speed frequency 9 E2.14
ON OFF ON OFF Multi-speed frequency 10 E2.15
ON OFF ON ON Multi-speed frequency 11 E2.16
ON ON OFF OFF Multi-speed frequency 12 E2.17
ON ON OFF ON Multi-speed frequency 13 E2.18
ON ON ON OFF Multi-speed frequency 14 E2.19
ON ON ON ON Multi-speed frequency 15 E2.20
Tab. 7-10: Multi-speed digital inputs
DOK-RCON02-FV*********-IB08-EN-P Bosch Rexroth AG 131/259
