REXROTH Fv Series User Manual

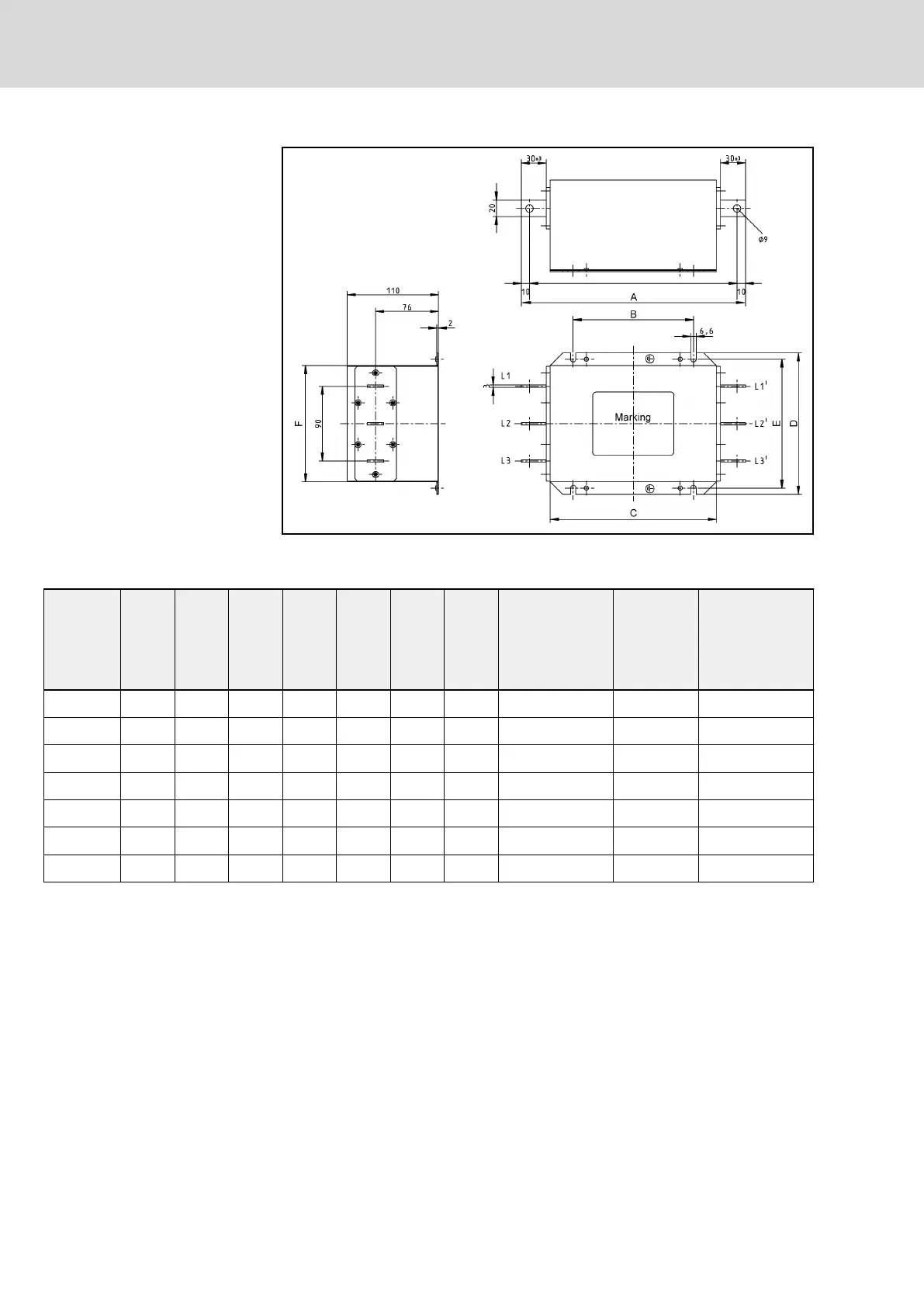

Fig. 10-6: E0250
Dimensions
EMC
filter
A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
PE
size
PE
tightening
torque
[Nm]
Terminal
wire size
[mm
2
]
Terminal
tightening
torque
[Nm]
E0008 165 155 134 51.5 38 63 M4 1.2 4 0.5...0.6
E0025 231 221 200 46 38 83 M5 2 4 0.5...0.6
E0050 265 255 200 58 35 90 M6 3 10 1.2...1.5
E0066 265 255 200 58 35 142 M6 3 16 1.5...1.8
E0090 290 255 240 80 60 135 M10 10 35 3.2...3.7
E0120 290 255 240 90 65 150 M10 10 35 3.2...3.7
E0250 250 145 200 170 155 110 Ø6.6 6...9 Ø9 6...9
Tab. 10-2: Dimensions
Bosch Rexroth AG DOK-RCON02-FV*********-IB08-EN-P194/259
Rexroth Frequency Converter Fv
