Risks of damage to the components!
Only operate the components in their allowed mounting modes.
Allowed mounting mode of the components:
Only the mounting mode G1 is allowed for Fv.
a Mounting surface
g Direction of gravitational force
G1 Normal mounting mode. The natural convection supports the
forced cooling air current. This avoids the generation of pock‐
ets of heat in the component.
G2 180° to normal mounting mode
G3 Turned by 90° from vertical to horizontal mounting position
G4 Bottom mounting; mounting surface on bottom of control cabi‐
net
G5 Top mounting; mounting surface at top of control cabinet

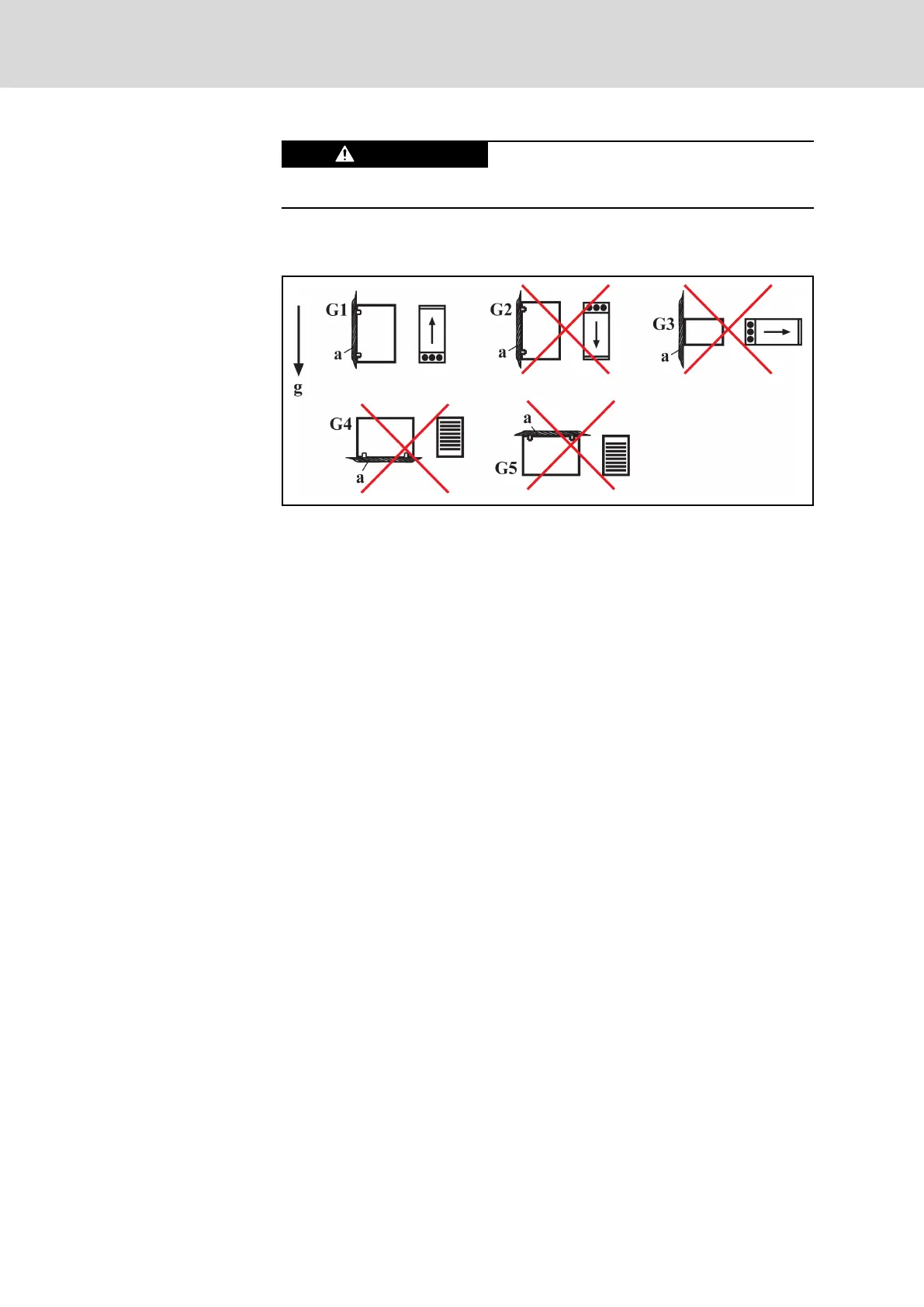

Fig. 4-2: Mounting mode
Bosch Rexroth AG DOK-RCON02-FV*********-IB08-EN-P36/259
Rexroth Frequency Converter Fv
Fv Mounting
