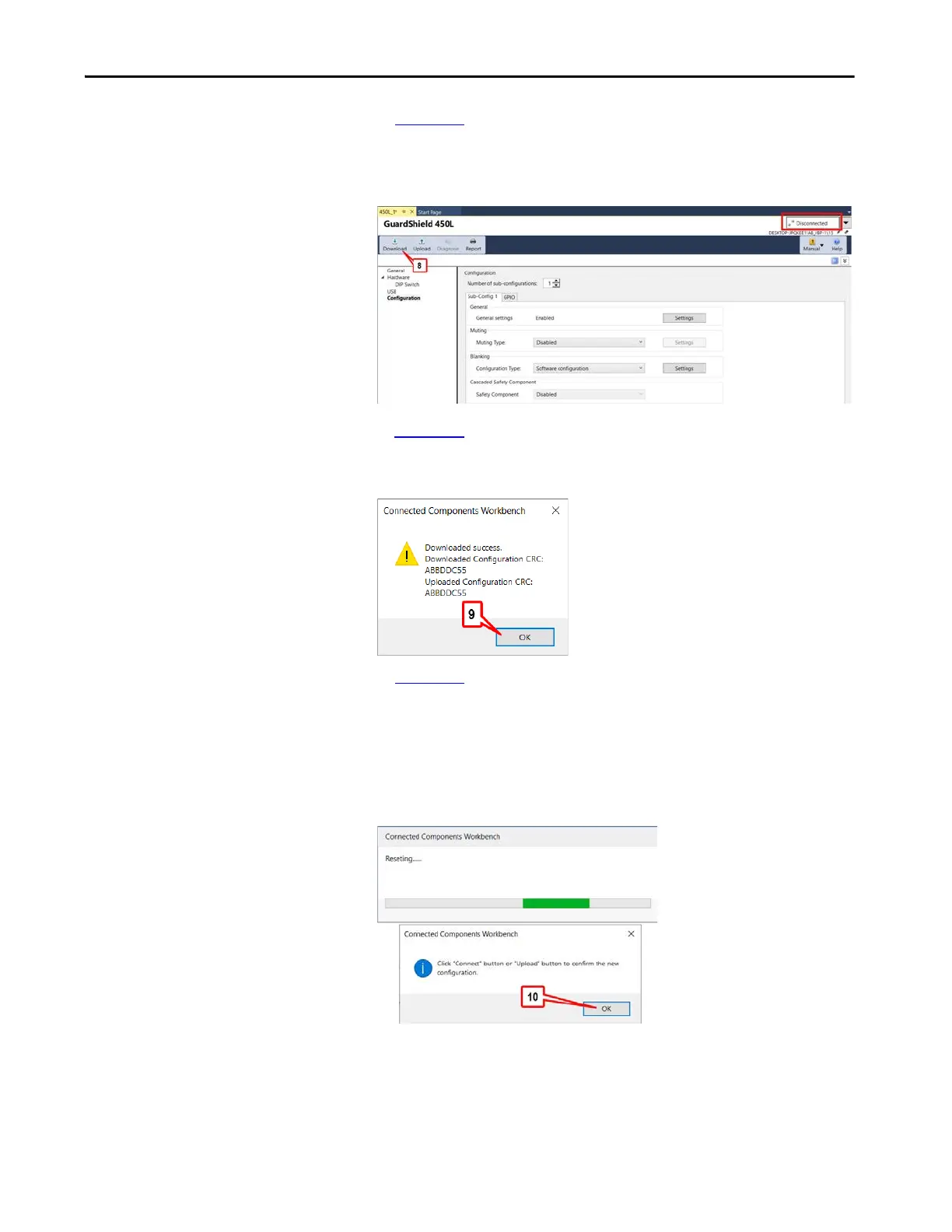

8. In Figure 130, click Download with the light curtain disconnected. The
OSSD outputs turn OFF while the new configuration is being
downloaded.
Figure 130 - Download
9. In Figure 131, the download was a success. The downloaded and uploaded
CRC values are the same. Click OK.
Figure 131 - Download Success
10. In Figure 132, the Connected Components Workbench software resets.
After resetting, the Connected Components Workbench software is
disconnected from the light curtain, and the message box instructs you to
click Upload or Connect to confirm the new configuration. On the light
curtain, the status indicator is alternating red and green. The OSSD
outputs are OFF. The Blanking indicator is OFF. Click OK.
Figure 132 - Resetting
To Next Page
