Section04ENGINEMANAGEMENT(15034-TEC)
Subsection 02 (DIAGNOSTIC PROCEDURES)
Fuse and Related Fault Code
FUSE RATING (A) FAULT CODE
FAULT DETECTED
WHILE ENGINE
NOT RUNNING
TOPS
10 P0344, P1200 N
Depth gauge (if so equipped) or spare fuse 2 P1675 Y
Cylinder #3 ignition coil and injection
10 P0353, P0267 N
Information center
1
P1680, P1681 N
Cylinder #2 ignition coil and injection
10 P0352, P0264 N
Cylinder #1 ignition coil and injection
10 P0351, P0261 N
Bilge pump (optional), beeper, diagnostic connector 3 P0616 Y
Spare fuse
5
P1678 Y
Electric starter, fuel pump 10 P0231 Y
MPEM 2 P0600 N
VTS (if so equipped)
7.5
P1690, P1692 N
EMS, start/stop circuit
5
None N
10A
2A
10A
1A
10A
10A
3A
5A
10A
2A
7.5A
5A
10A
2A
10A
1A
10A
10A
3A
5A
10A
2A
7.5A
5A
10A
2A
10A
1A
10A
10A
3A
5A
10A
2A
7.5A
5A
Depth gauge
(if so equipped)
or spare fuse
TOPS
Cylinder 3
ignition coil
and injection
Information center
EMS
start/stop circuit
VTS
(if so equipped)
MPEM
Electric starter,
fuel pump
Bilge pump (optional)
Beeper diagnostic,
connector
Cylinder 2
ignition coil
and injection
Cylinder 1
ignition coil
and injection
Spare fuse

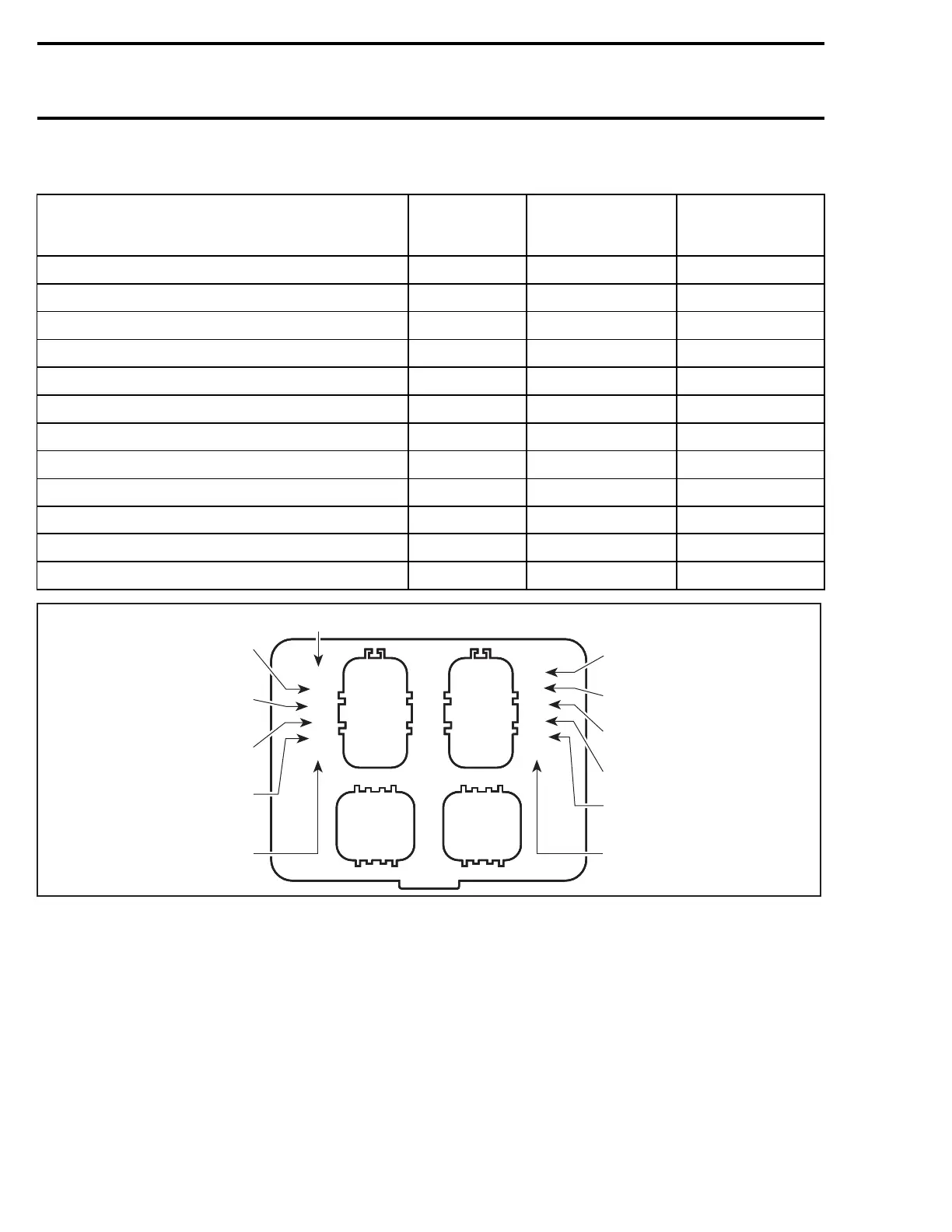

F18H07U
104 smr2005-012
www.SeaDooManuals.net
