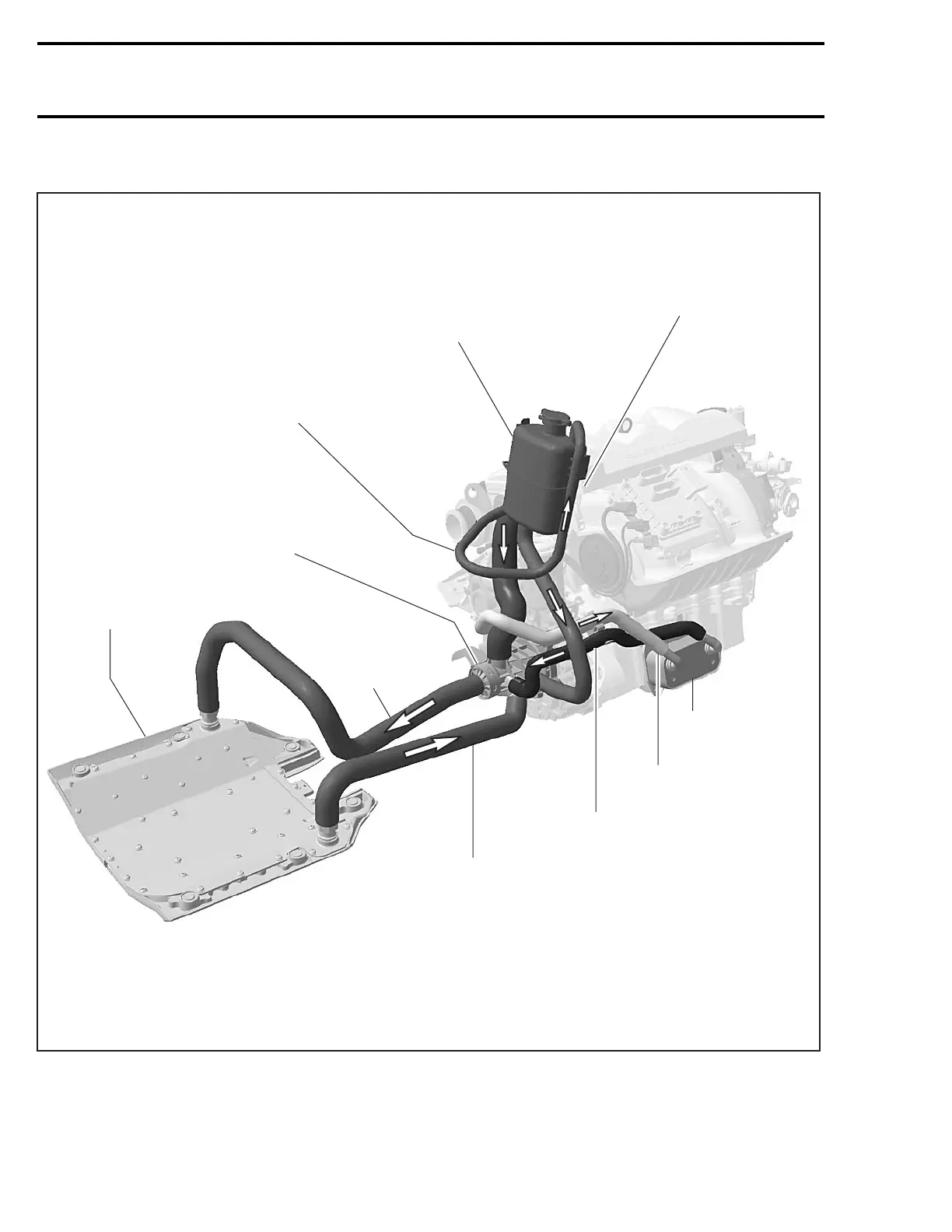

CLOSED LOOP COOLING SYSTEM (engine)
F18E0WS
Ride plate
(operates as heat
exhanger)
Coolant flows
to ride plate
Coolant housing
including thermostat
opens at 87°C (188°F)
and coolant pump
impeller
Bleed hose from
cylinder head to
expansion coolant tank
Expansion
coolant tank
Coolant temperature
sensor (CTS)
activates when
temperature exceeds
100°C (212°F)
Coolant flows
to oil cooler
Oil
cooler
Coolant returns
from oil cooler
Coolant returns
from ride plate
