Section04ENGINEMANAGEMENT(15034-TEC)
Subsection 01 (OVERVIEW)
OVERVIEW

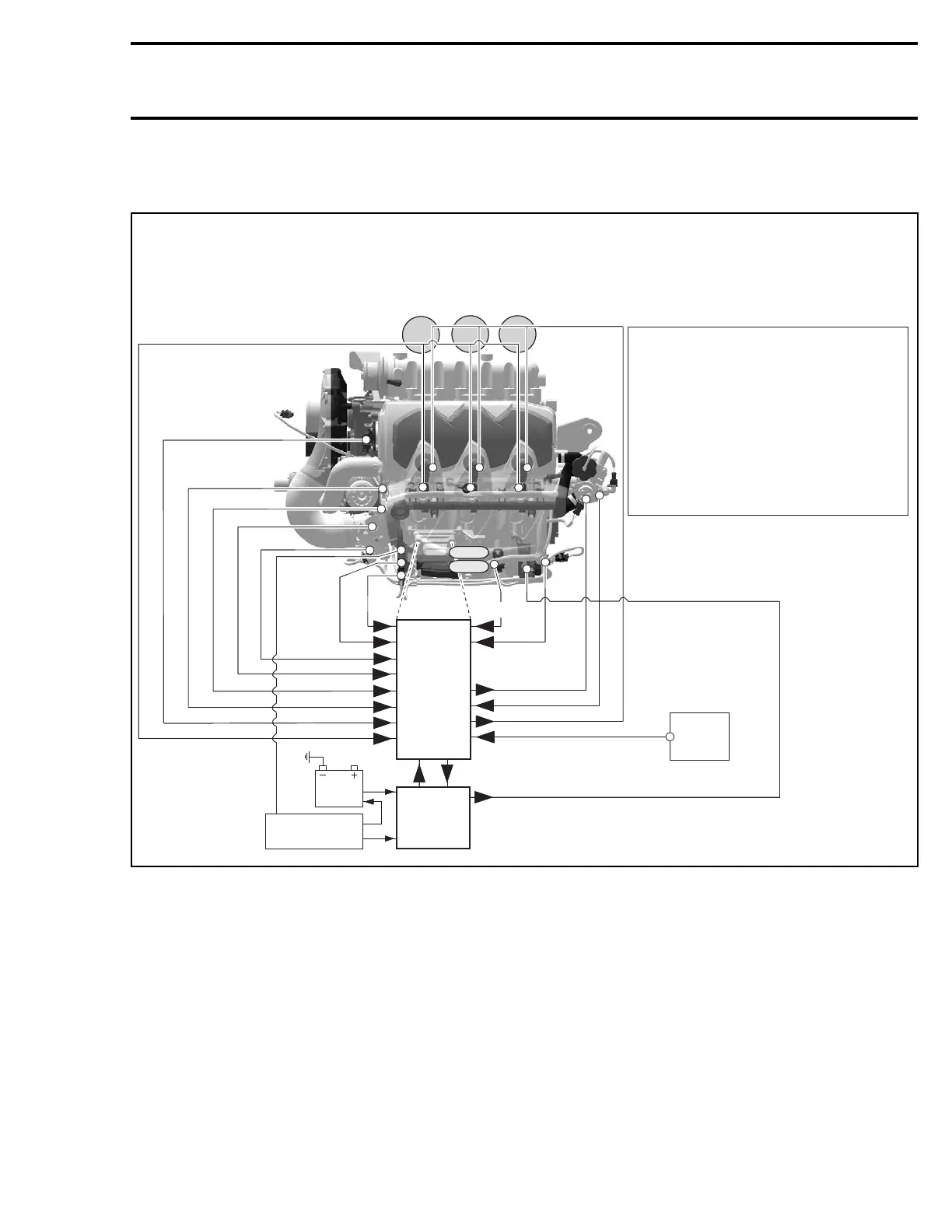

ENGINE MANAGEMENT SYSTEM
ECM
KS
CPS
OPS
CTS
CAPS
INJECTOR 1,2,3
MATS
IDLE
BYPASS VALVE
TPS
IGNITION COIL
OSPS
TOPS VALVE
EGTS
MPEM
REGULATOR/
RECTIFIER
MUFFLER
Cyl.1 Cyl.2 Cyl.3
MAGNETO
ENGINE POWER SUPPLY
ECM ECM Engine Control Module
MPEM Multi-Purpose Electronic Module
KS Knock Sensor
CPS Cranshaft Position Sensor
OPS Oil Pressure Sensor
OSPS Oil Separator Pressure Sensor
CTS Coolant Temperature Sensor
CAPS Camshaft Position Sensor
EGTS Exhaust Gas Temperature Sensor
MAPS Manifold Air Pressure Sensor
MATS Manifold Air Temperature Sensor
TOPS Tip-Over Protection System
Con.A Connector for Engine Wiring Harness
Con.B Connector for MPEM Connection
BATTERY
Con. A
Con. B
ROTAX 1503 4-TEC
Con. A
Con. B
MAPS
smr2005-011-001_aen
smr2005-011 67
