Section 06 ELECTRICAL SYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)
INSTRUMENTS AND ACCESSORIES
SERVICE TOOLS
Description Part Number Page
multimeter FLUKE 111......................................................... 529 035 868 ................................. 178–179
GENERAL
Install safety lanyard to activate MPEM to perform
testing procedures that requires the device to be
supplied with electricity.
Addition of Electrical Accessories
Every time an electrical accessory is added such
as an electric bilge pump or a VTS for instance, it
must be registered using B.U.D.S. to activate it in
the MPEM.
If an option is installed but not checked in
B.U.D.S., the information center will not display
that option. If an option is checked in B.U.D.S.
but not installed in vehicle, a fault code will be
generated.
Use the OPTIONS area in the Setting tab in
B.U.D.S.
COMPONENT DESCRIPTION
Information Center

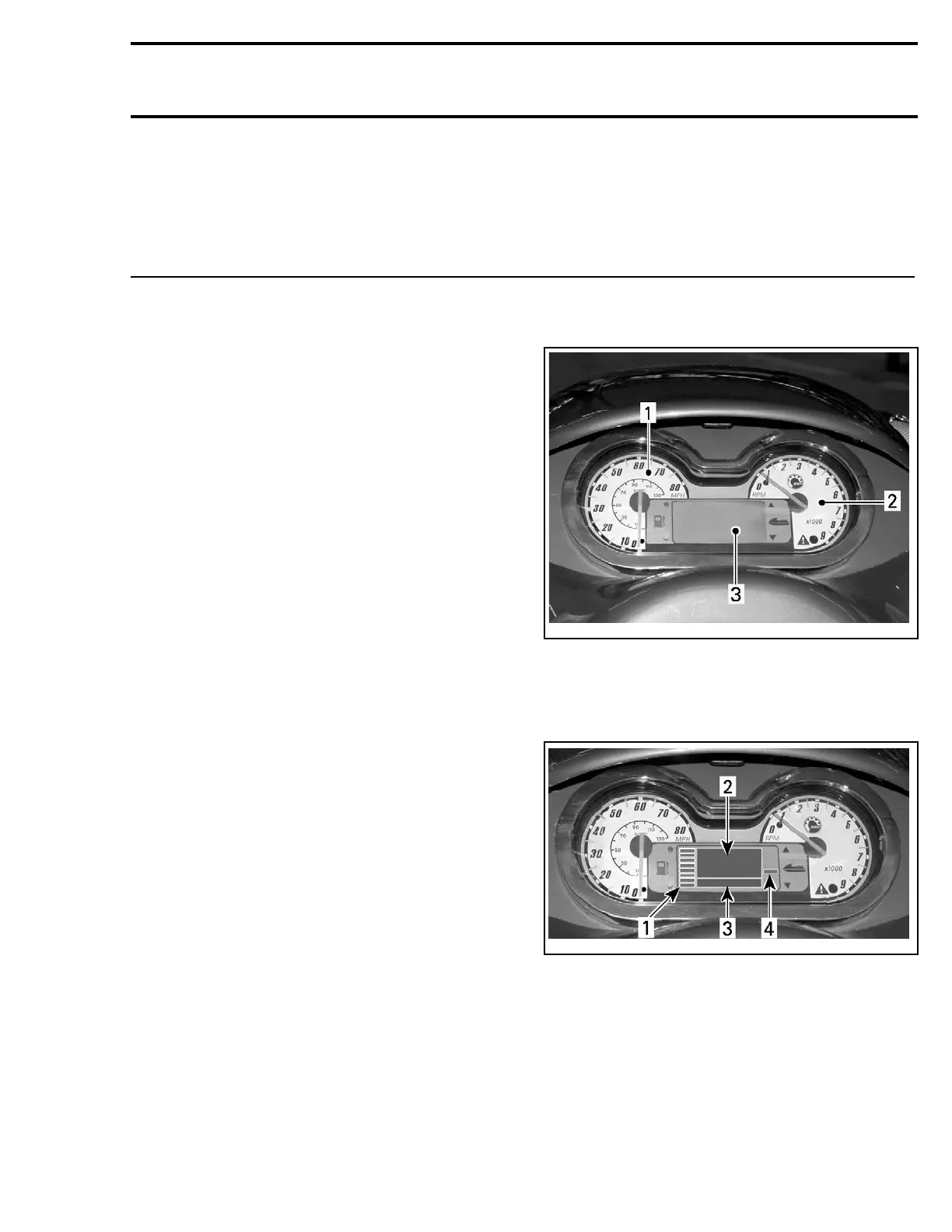

This is a multifunction gauge that supplies several
real time useful information to the driver.
smr05-018-001_a
TYPICAL
1. Analog speedometer
2. Analog tachometer
3. Display area
The display area comprises the following:
smr05-018-001_b
TYPICAL
1. Fuel level indicator
2. Numerical section
3. Units and message section
4. VTS position indicator (if so equipped)
smr2005-018 173
