Section05FUELSYSTEM
Subsection 01 (FUEL TANK AND FUEL PUMP)
F01B05A
1

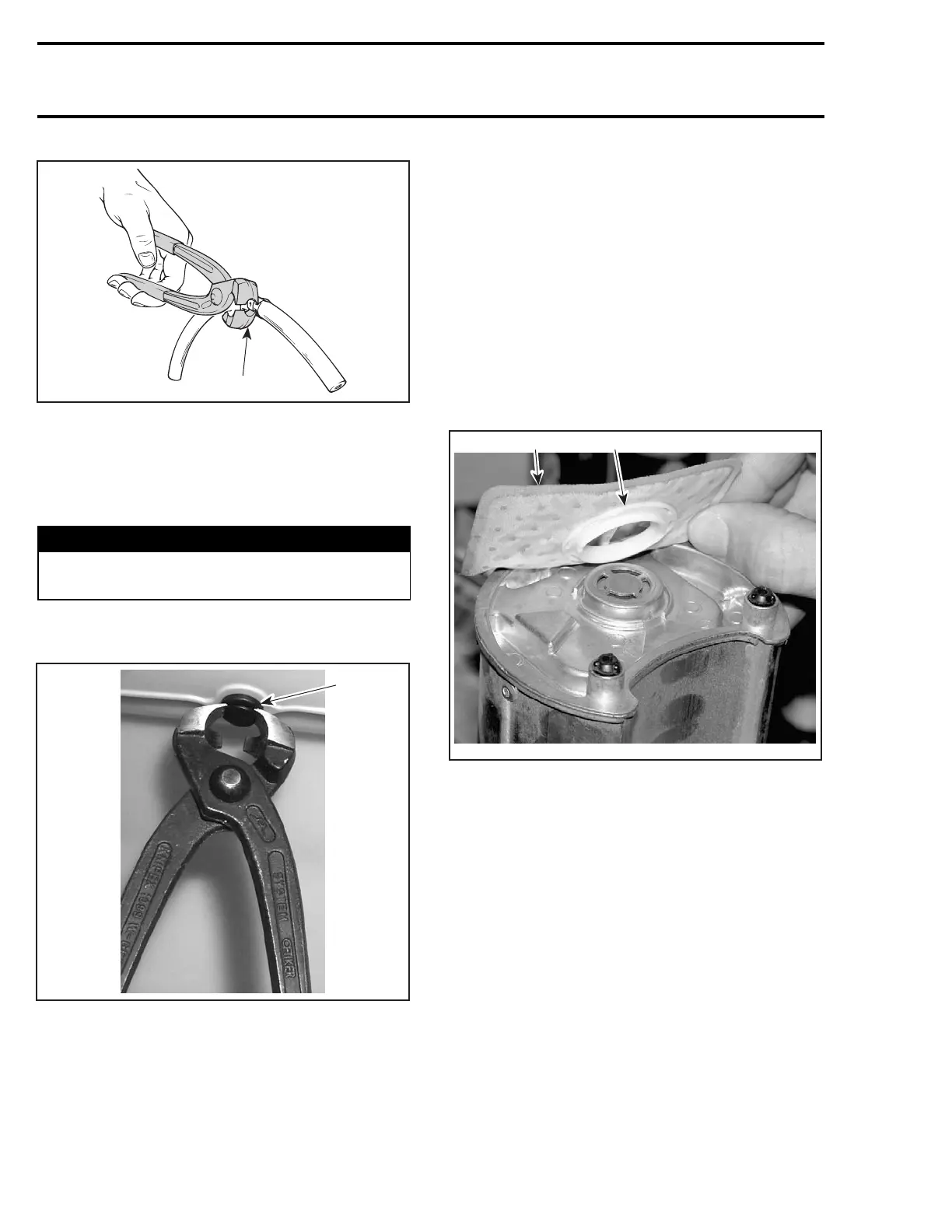

1. Securing clamp in limited access
When replacing the fuel lines on all SEA-DOO
models be sure to use “B1”. These hoses are
available through the BRP. This will ensure contin-
ued proper and safe operation.
WARNING
Use of improper fuel lines could compromise
fuel system integrity.
To remove the darts from the front access panel
(if so equipped), use the pliers (P/N 295 000 070).
1
F18F0AA
1. Dart
REMOVAL
Fuel Filter
NOTE: The fuel filter does not require replace-
ment under normal operating conditions. Replace
only if permanently clogged or damaged. The fuel
pump assembly has to be removed from the fuel
tank to have access to the fuel filter.
Remove fuel pump. Refer to FUEL PUMP for the
procedure.
Turn fuel pump up side down. Using a small flat
screwdriver, remove the fuel filter by prying the
inner plastic ring.
1
F18R0EA
2
1. Fuel filter
2. Inner plastic ring
Fuel Pump
Open front storage compartment cover.
Remove the storage basket (if so equipped).
Remove front access panel (see HULL/BODY sec-
tion).
Remove front vent tubes.
Remove glove box (see HULL/BODY section).
Disconnect electrical connector.
Disconnect vent tube from fuel pump.
Release the fuel pressure in the system using
B.U.D.S. Look in the Activation tab.
Disconnect inlet hose from fuel pump.
From glove box opening, remove fuel pump retain-
ing nuts.
136 smr2005-014
